Replacing Left Engine Mount

22 11 011 - Replacing left engine mount (N73)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine in Installation Position.
Release both engine mounts from above.
Tightening torque 22 11 2AZ Specifications.
- Remove both front wheels Removing or Installing Front or Rear Wheel.
- Lower front axle support Lowering/Raising Front Axle Carrier.
Observe safety instructions on raising the vehicle 00 .. ... Lifting Vehicle With A Lifting Platform.

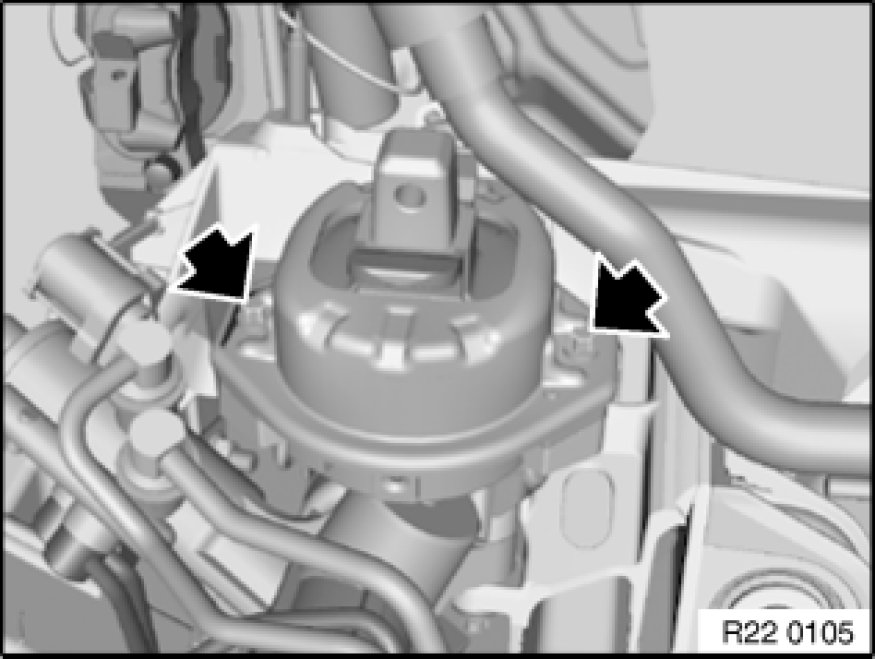

Remove engine mount from mounting bracket.
Tightening torque 22 11 4AZ Specifications.





Installation:

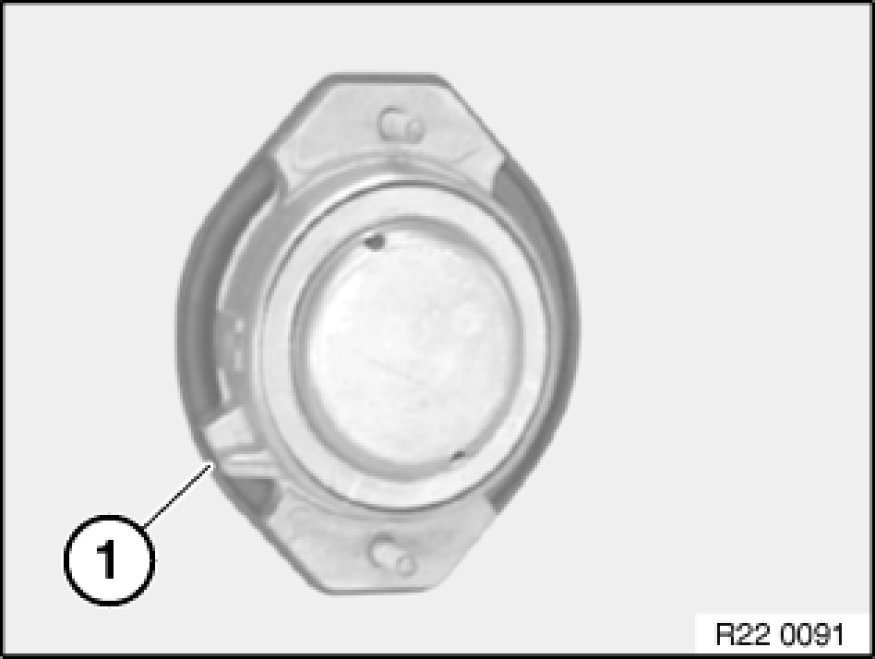

Lug (1) of engine mount must point to middle of vehicle.

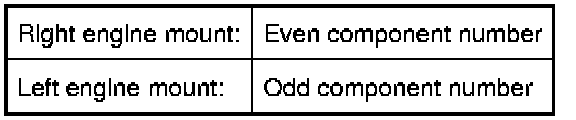

Engine mount designations:
