Removing and Installing/Replacing Right Inlet Camshaft

11 31 034 - Removing and installing/replacing right inlet camshaft (N73)





Special tools required:
- 11 9 473 11 9 470 Support





(cylinder bank 1 to 6)

Necessary preliminary tasks:
- Remove right cylinder head cover Removing and Installing/Sealing Right Cylinder Head Cover.
- Remove all spark plugs Service and Repair.
- Remove inlet and exhaust VANOS Removing and Installing/Replacing Inlet and Exhaust VANOS on Right Side (N73) on right side.
- Remove right intermediate lever Removing and Installing/Replacing Right Intermediate Levers (N73).

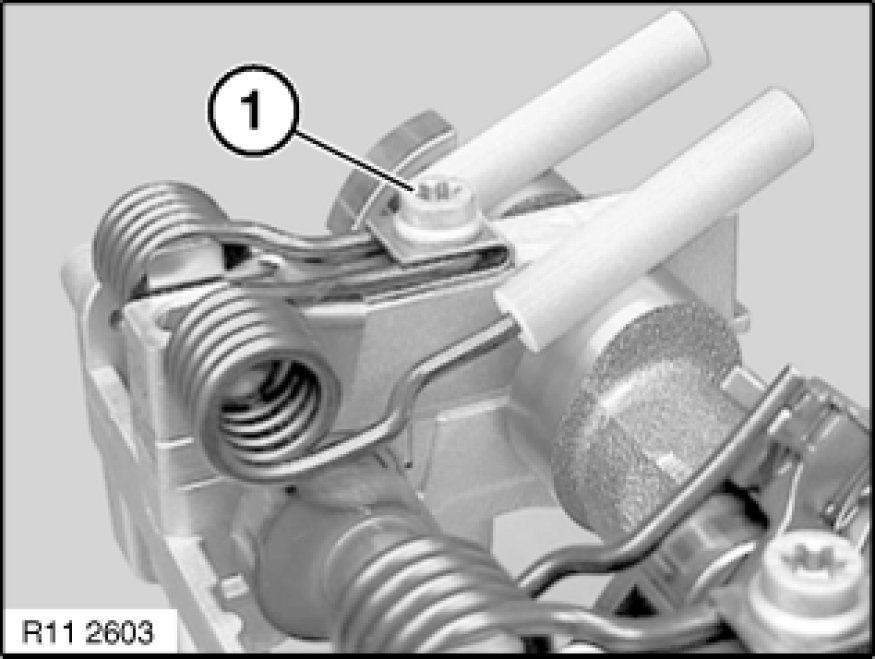

Release screw (1) and remove torsion spring.

Note:
Remove torsion springs of cylinders 1 to 5 in accordance with same procedure.





Remove special tool 11 9 473 11 9 470 Support.

Mark bearing caps 1 to 6 and remove.

Important!
Bearing cap and bearing bracket are matched to each other and must not be mixed up.

Risk of damage.

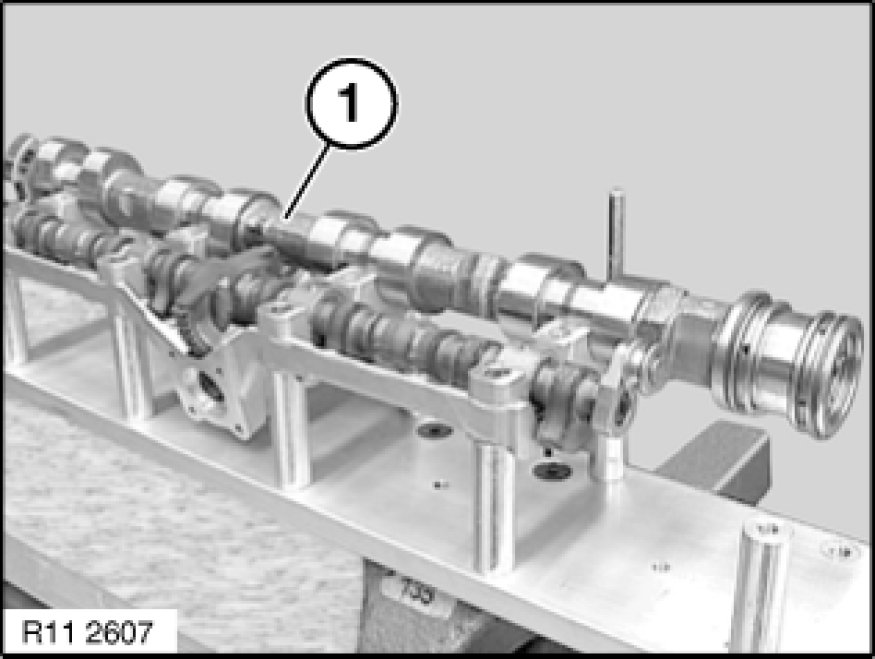

Lift out inlet camshaft (1).

Installation:
Clean all bearings and cams of inlet camshaft and lubricate with engine oil.





Important!
Plain compression rings (1) can easily break.

Remove and install/replace plain compression rings (1).

Plain compression rings (1) are engaged at joint.

Press compression ring (1) on one side into groove, press upwards from below on other side and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

Installation:
Install compression rings in reverse sequence.





Release screw (1) and remove sensor gear (2).

Installation:
Inlet camshaft of cylinders 1 to 6 is marked with Ein 16.

Sensor gear (2) has a lug for locating in the inlet camshaft.

Tightening torque 11 31 14AZ 11 31 Camshaft.





Make sure bearing shells (1) of eccentric shaft are engaged in bearing bracket.

Graphic representation N62.





Check dowel sleeves (1) for damage.





Fit bearing caps 2 to 7.

Screw on special tool 11 9 473 11 9 470 Support and secure bearing bracket.





Insert all torsion springs with screw (1) and tighten down.





Assemble engine in reverse sequence to its disassembly.

Installation:
Clean all bearings and cams of inlet camshaft and lubricate with engine oil.
