Home
>>
BMW
>>
2007
>>
760Li (E66) V12-6.0L (N73TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Cooling System
Cooling System

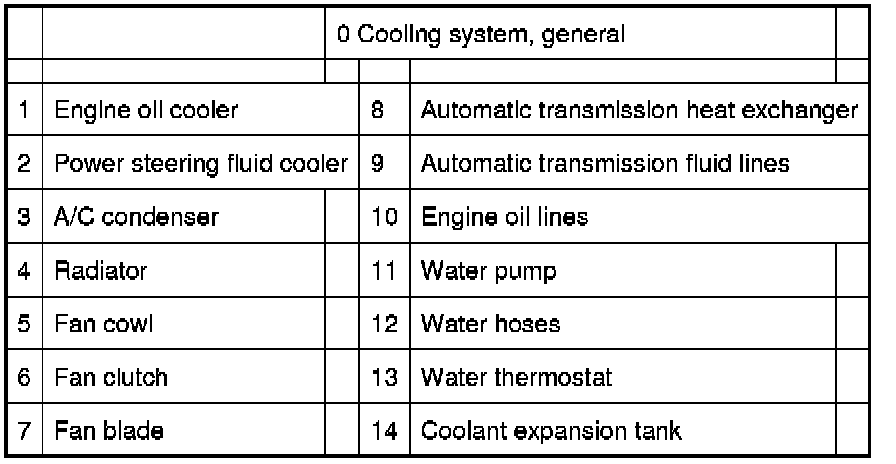

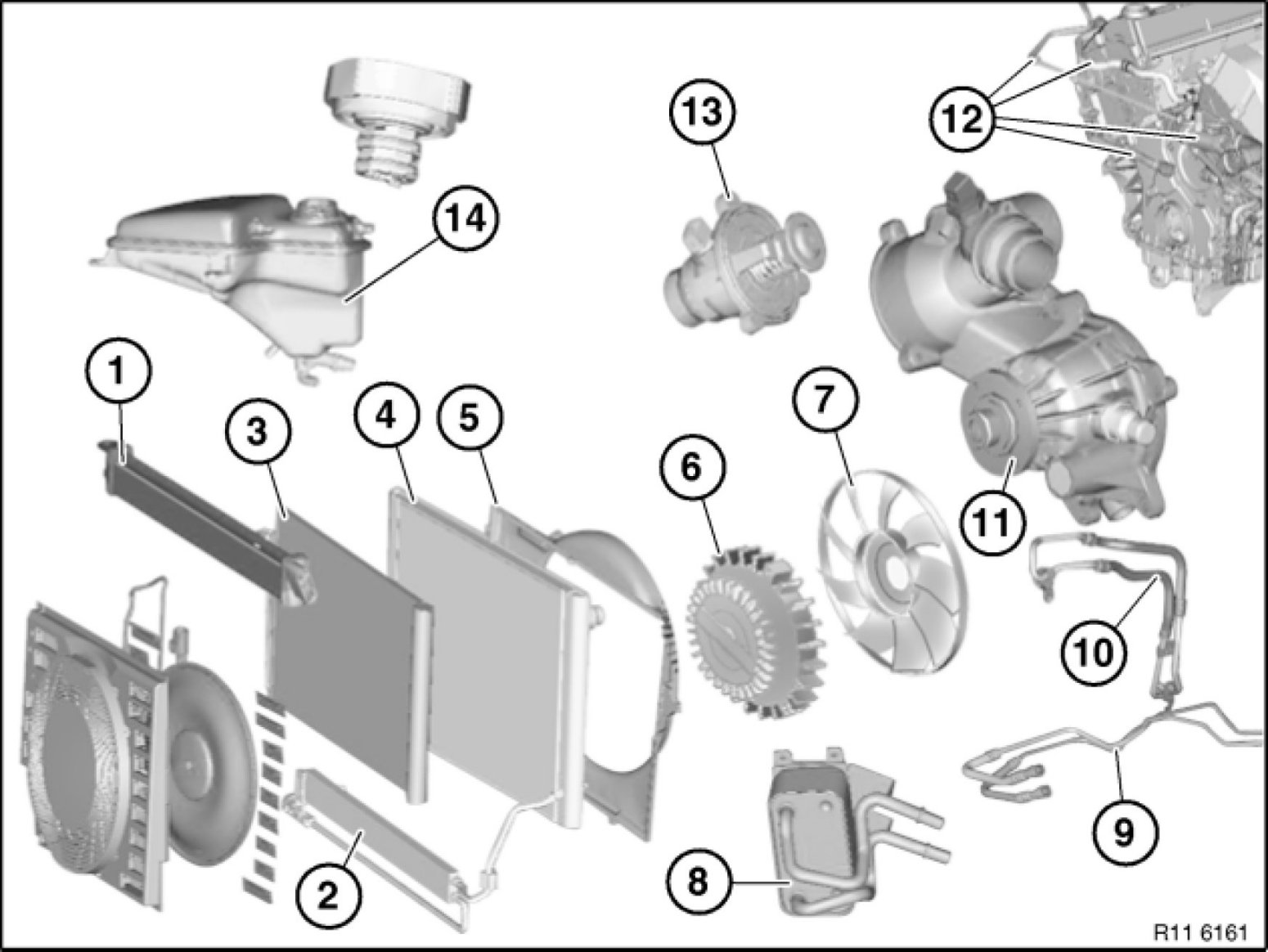

11 51 ... - Overview of
cooling system
(N73)
