Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management ME9/MED9 (N62 Engine or N73 Engine or N62/TU Engine) >> Control-Module Test >> Self-Diagnosis of Oxygen Sensor Control (N73 Engine) >> Lambda Control 1 (DME Digital Engine Electronics N73TU/2 Engine)

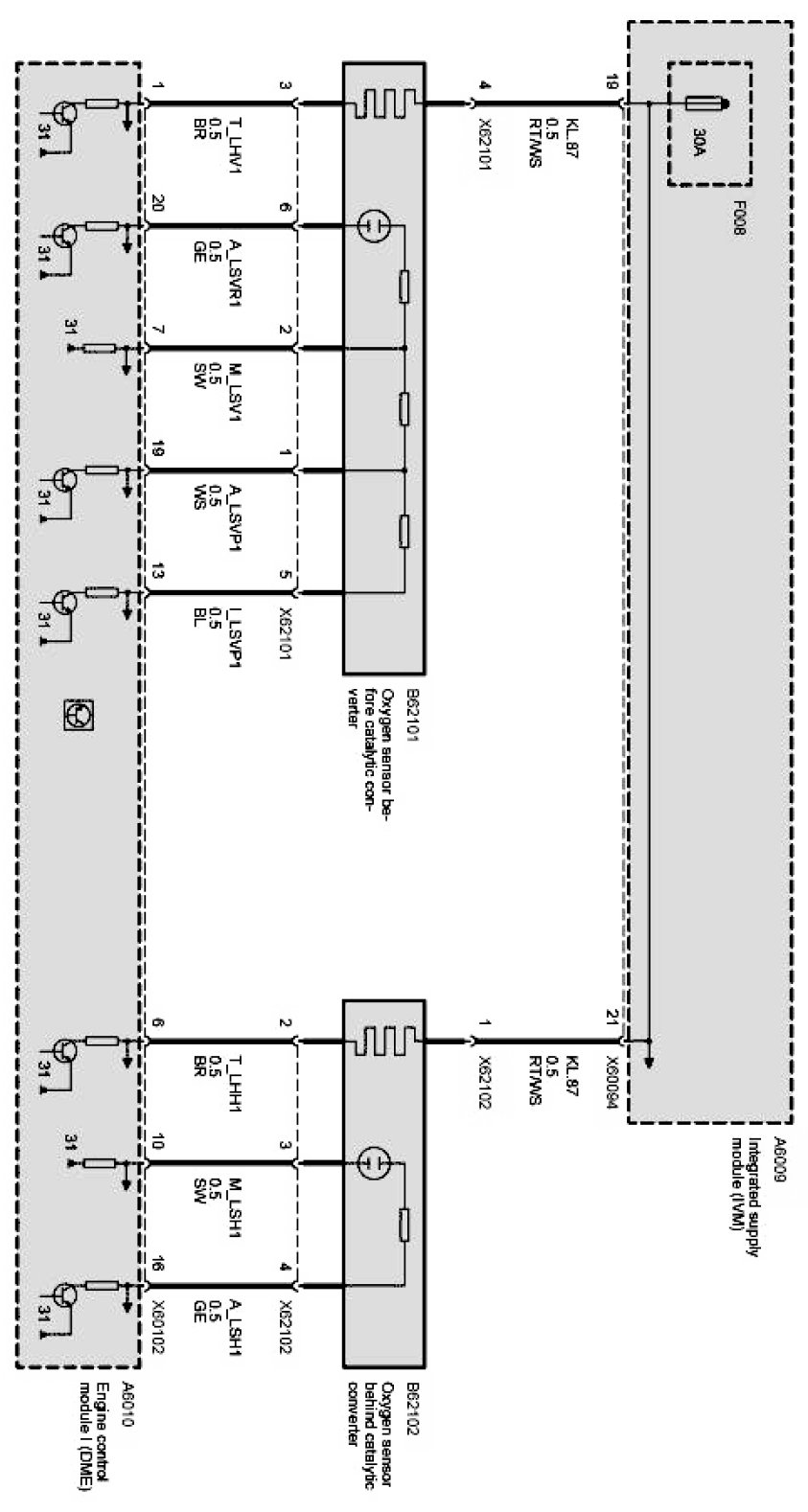

Lambda Control 1 (DME Digital Engine Electronics N73TU/2 Engine)
