Brake Pad Wear Indicator

Brake fluid level switch and brake pad wear sensor Part 1:

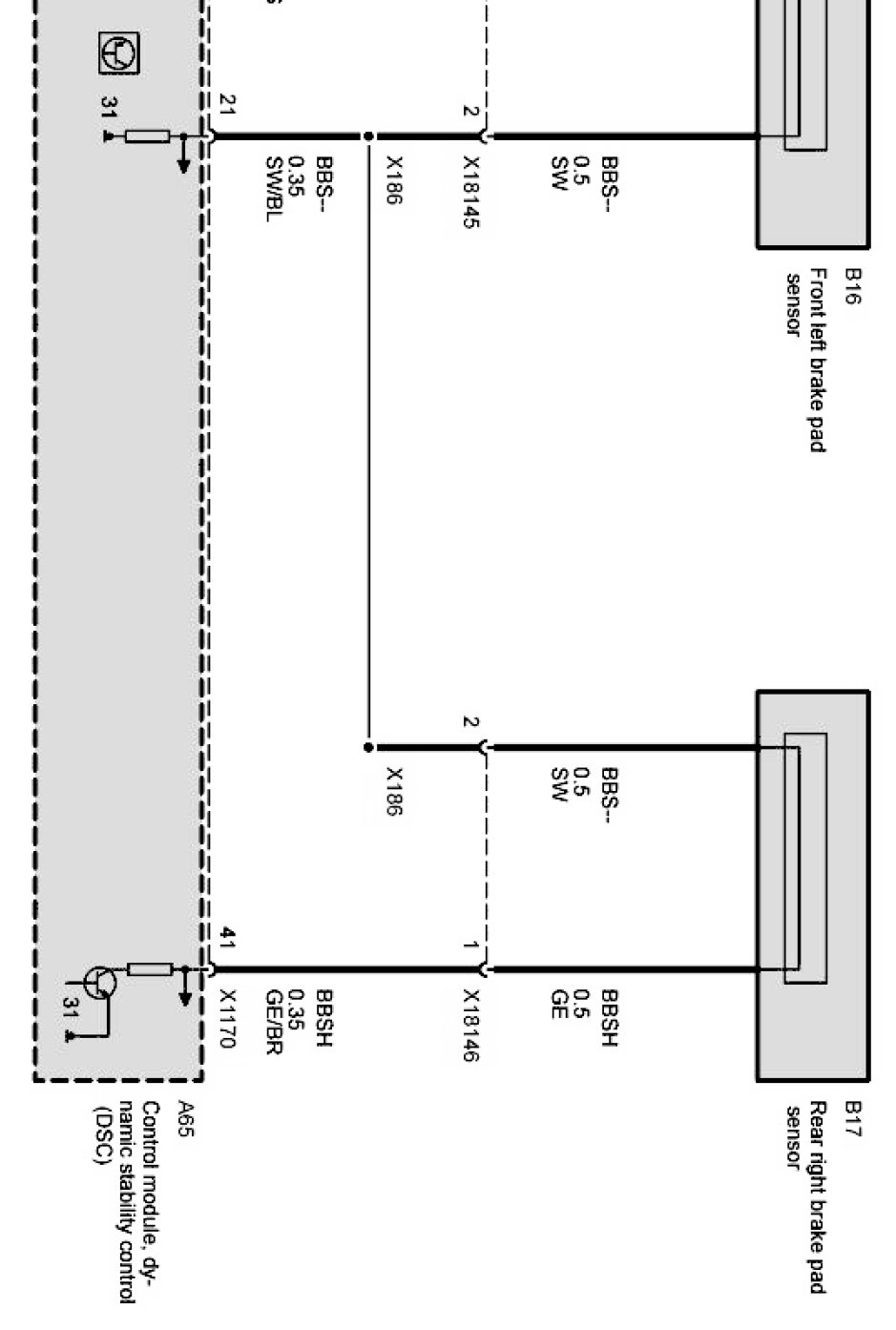

Brake fluid level switch and brake pad wear sensor Part 2:
