Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Parking Brake >> CAN Message, Parking Brake >> Power Train CAN-Bus (N73 Engine Without Ahl Adaptive Directional Headlights As of 09/07)

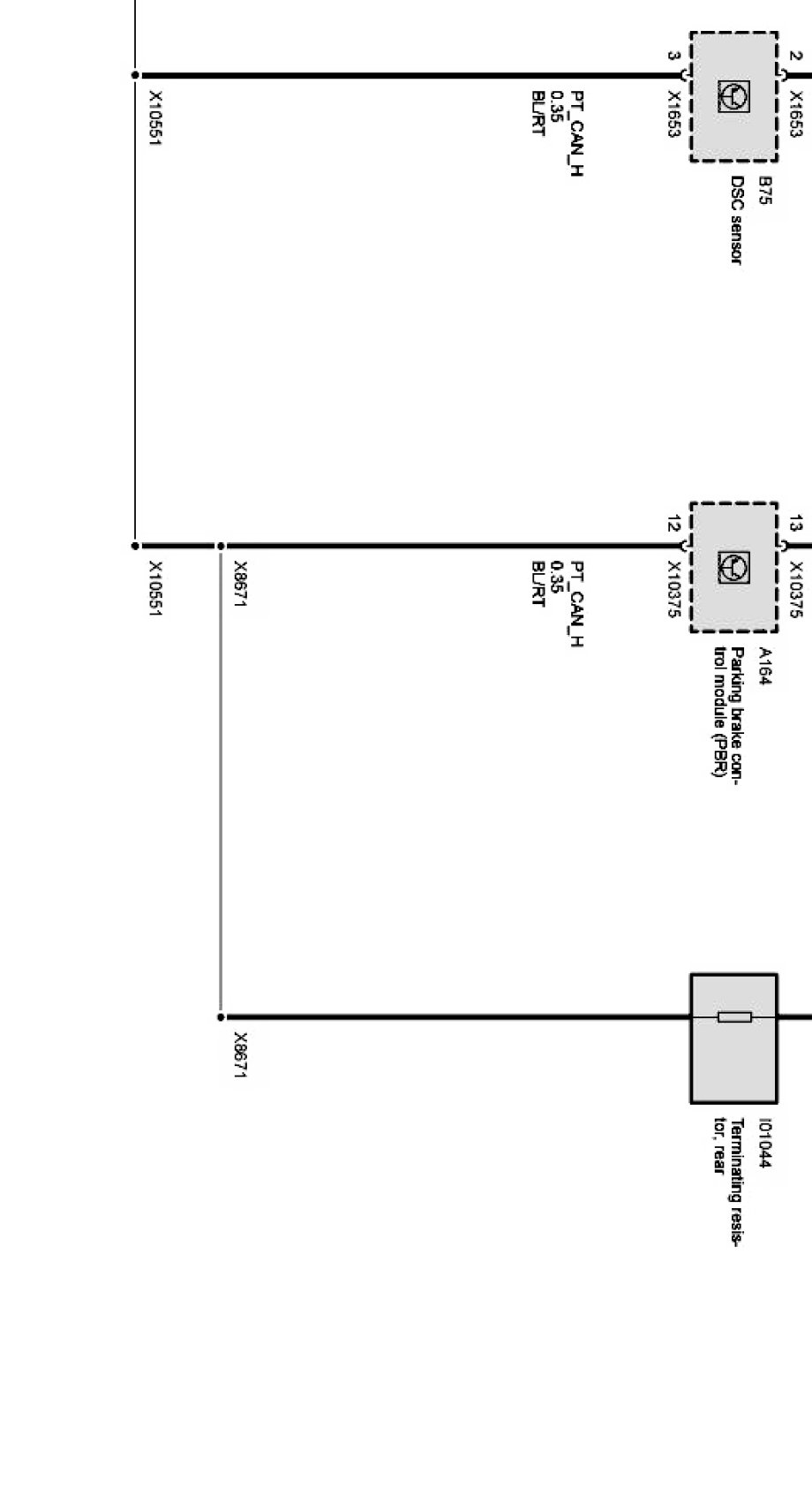

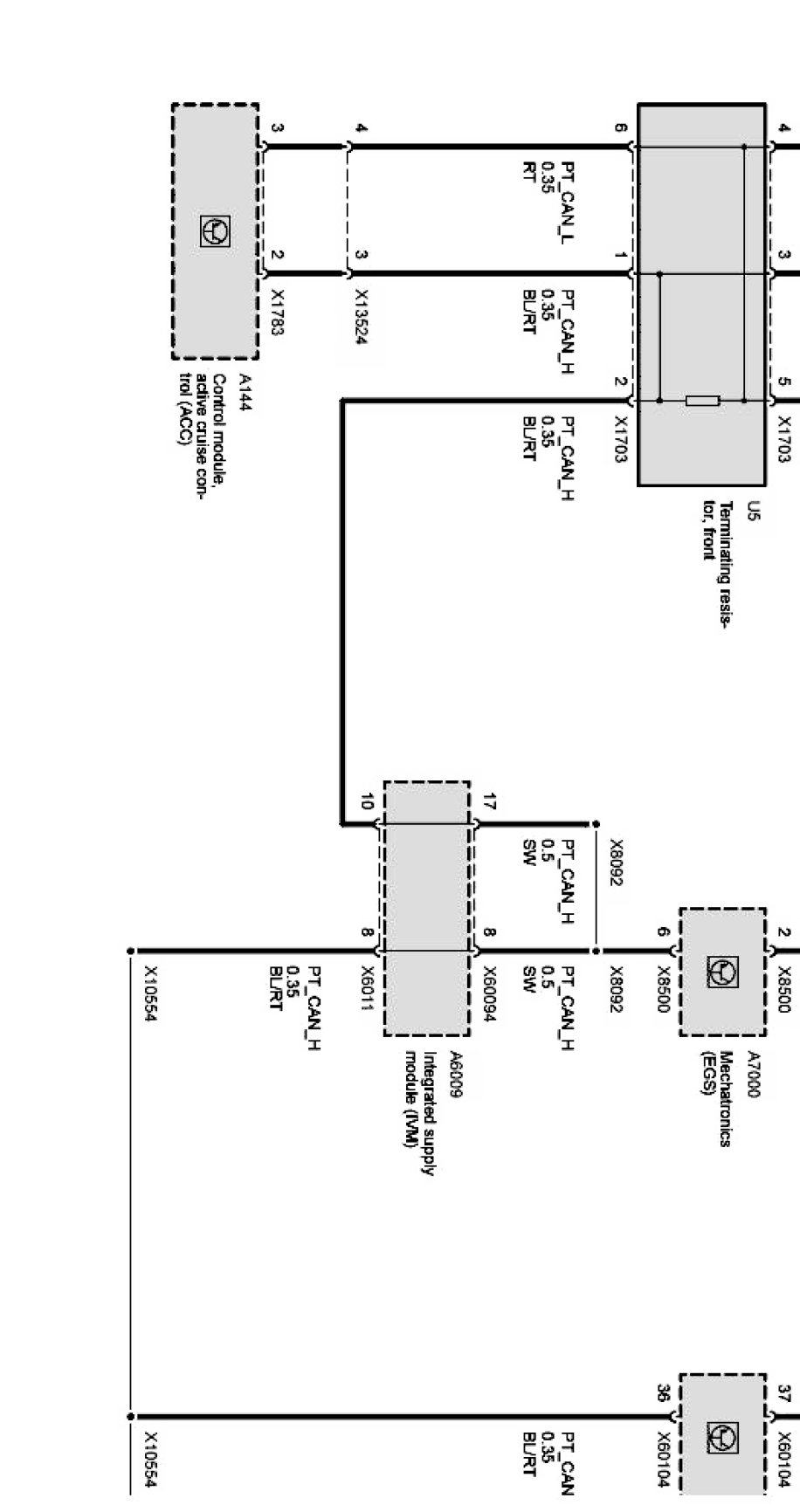

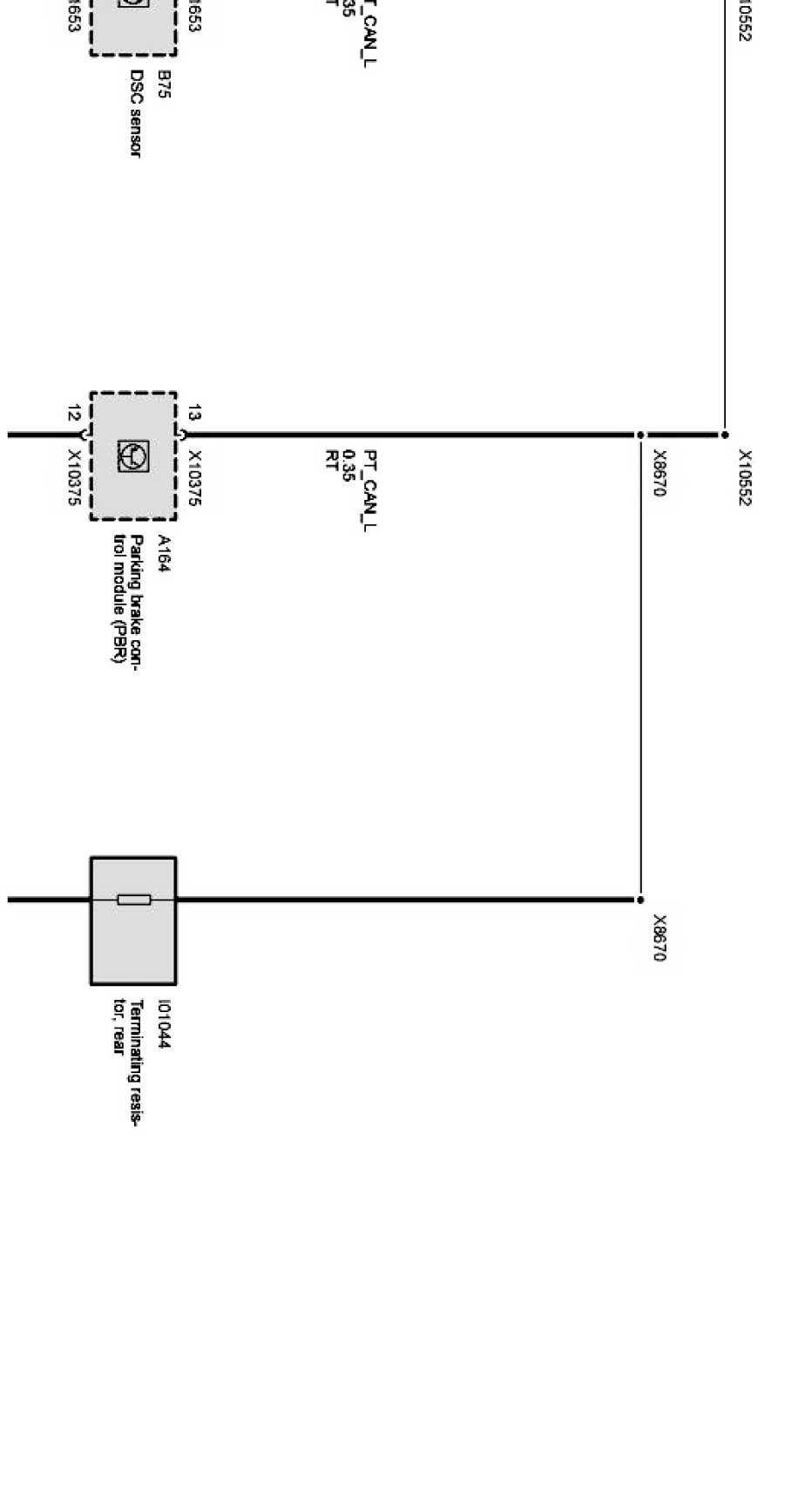

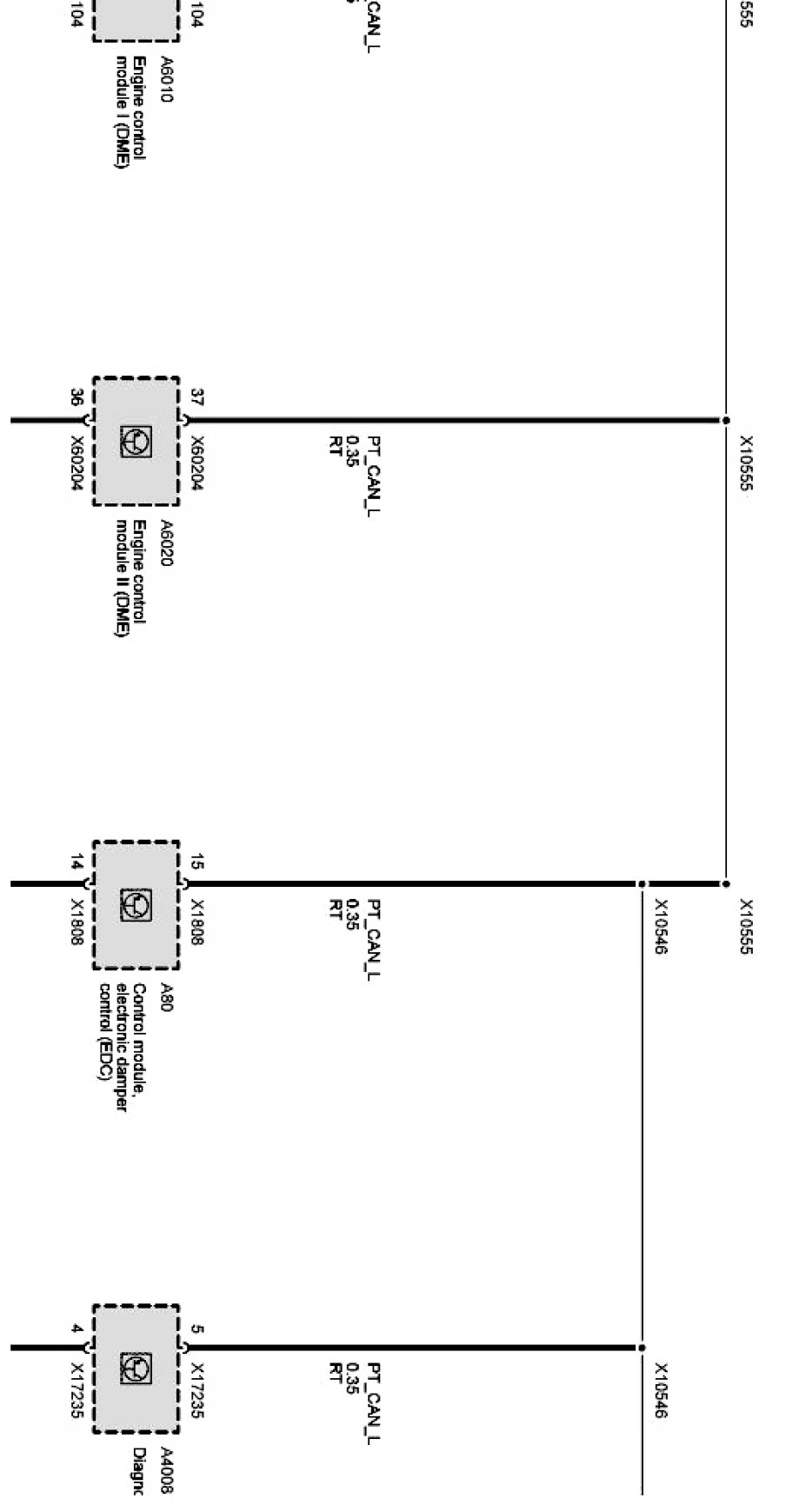

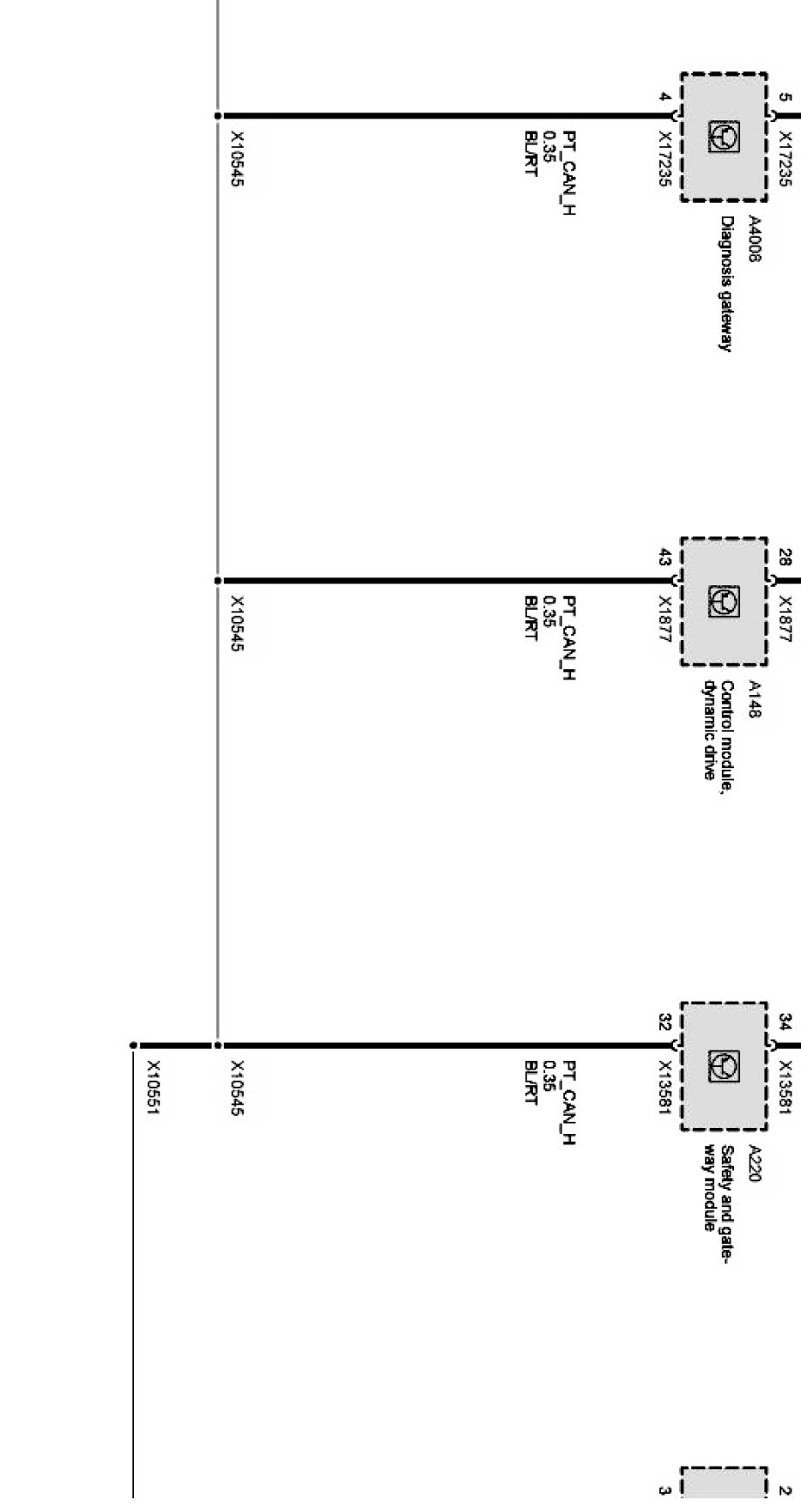

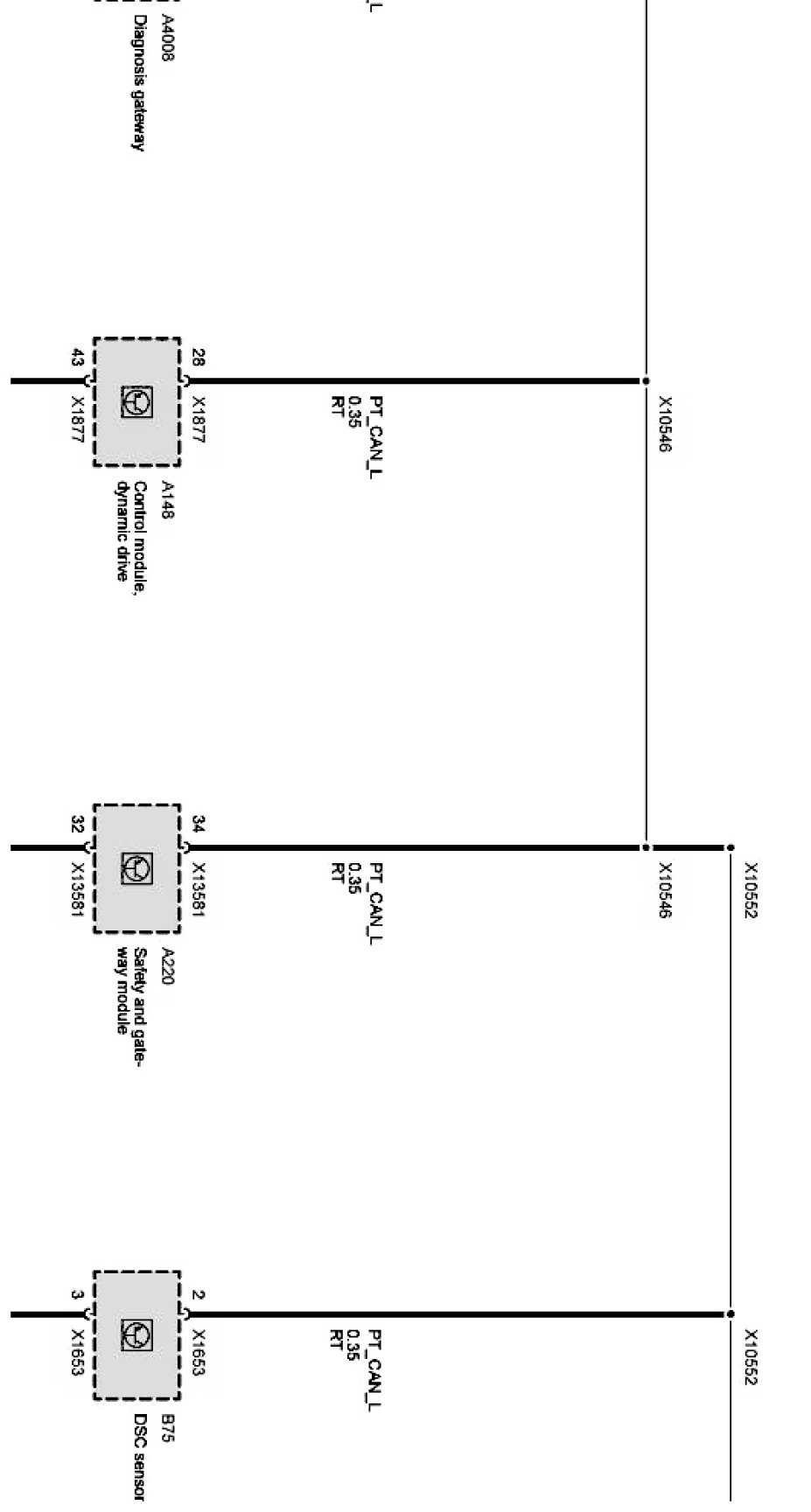

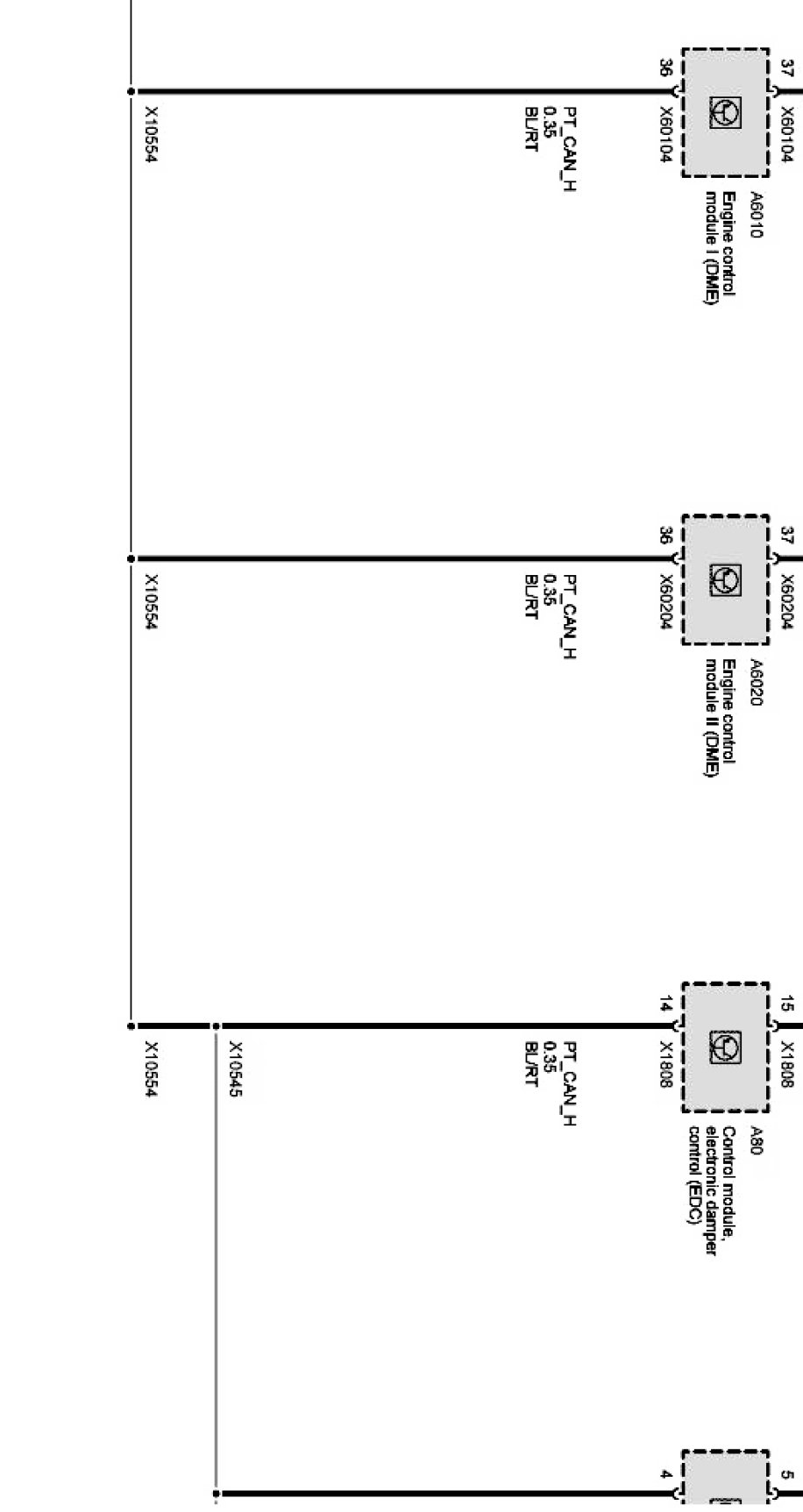

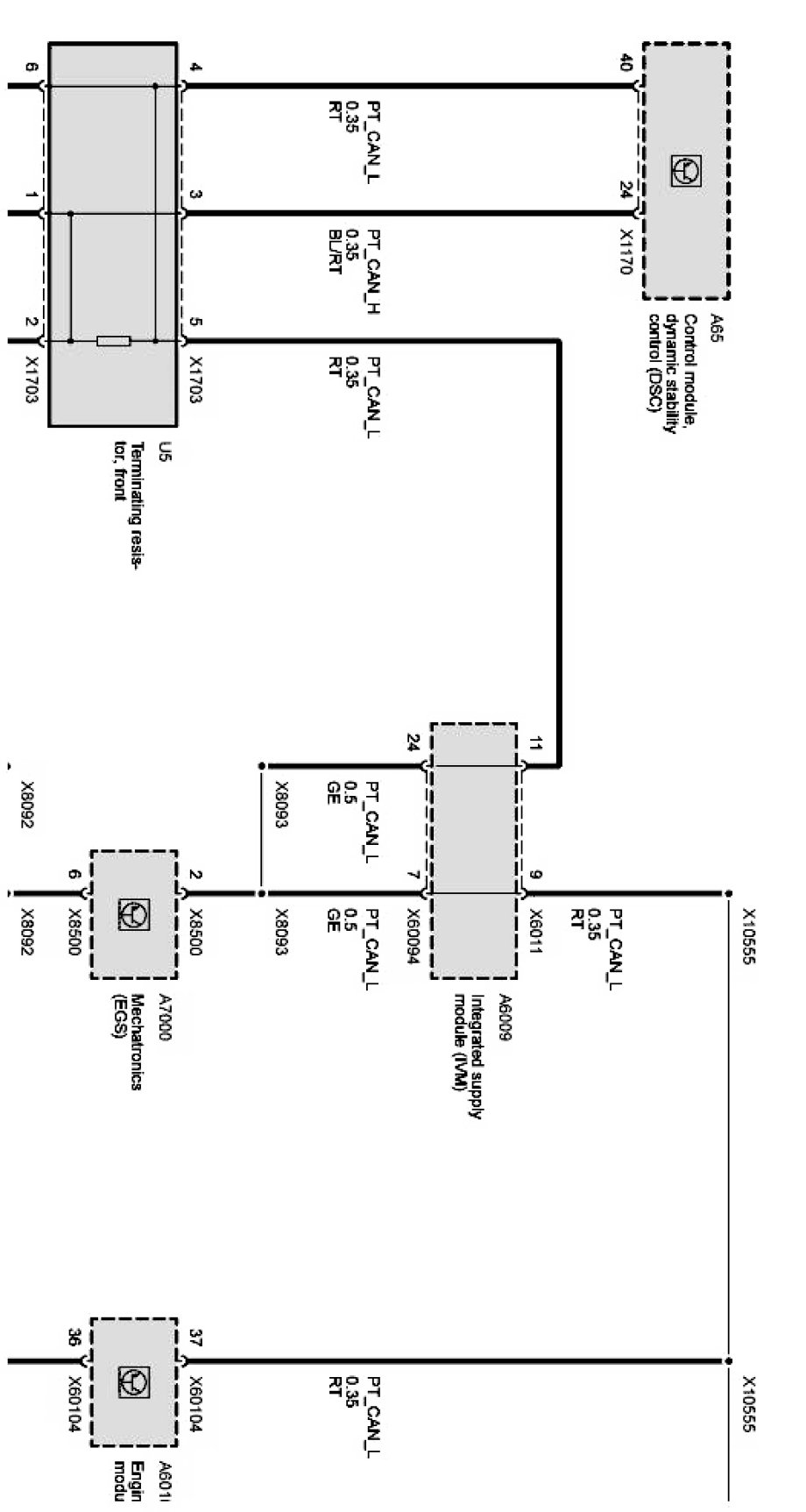

Power Train CAN-Bus (N73 Engine Without Ahl Adaptive Directional Headlights As of 09/07)
