Lumbar Support, Rear Passenger's Side (As of 03/06)

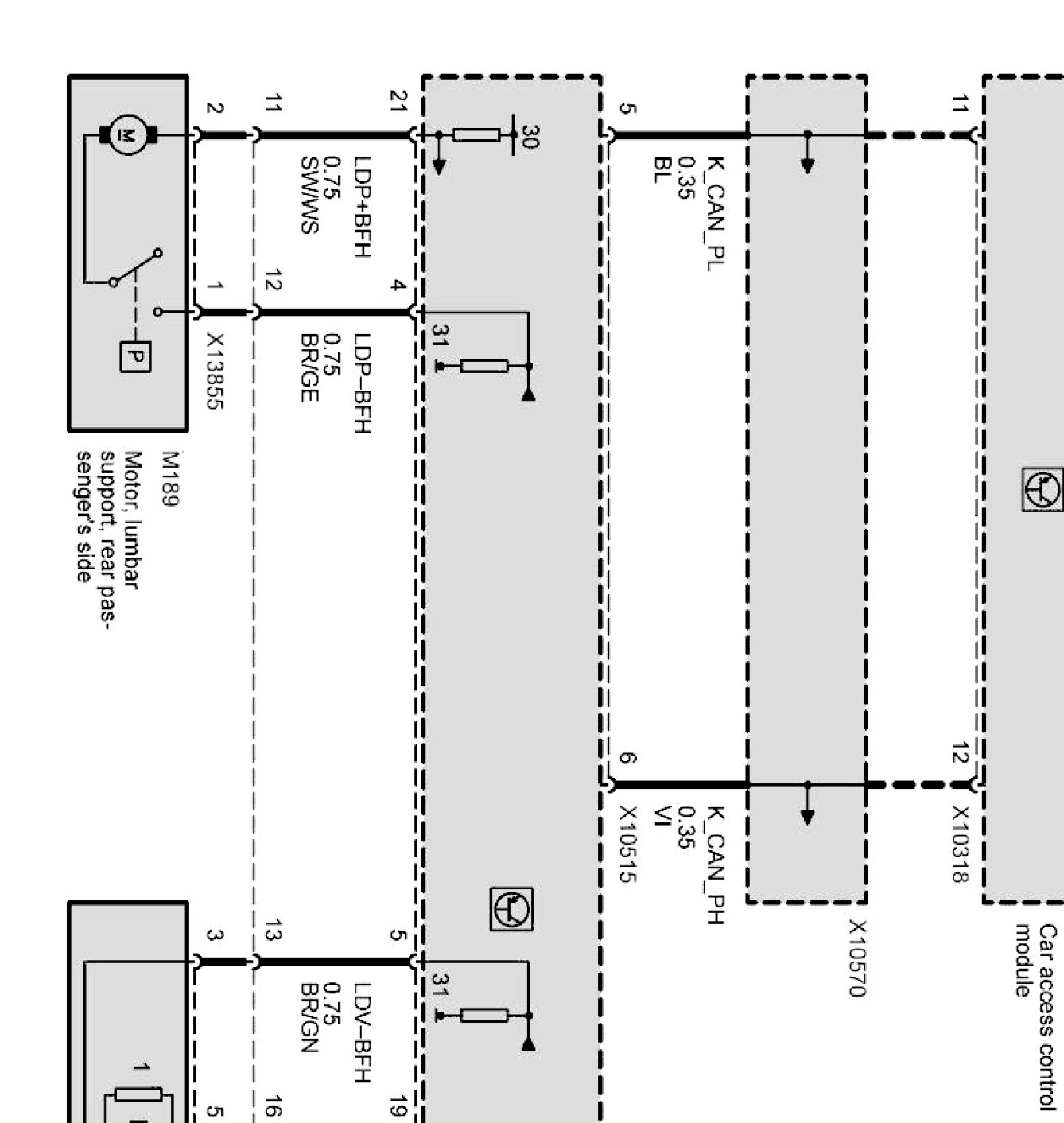

Lumbar support, rear passenger's side Part 1:

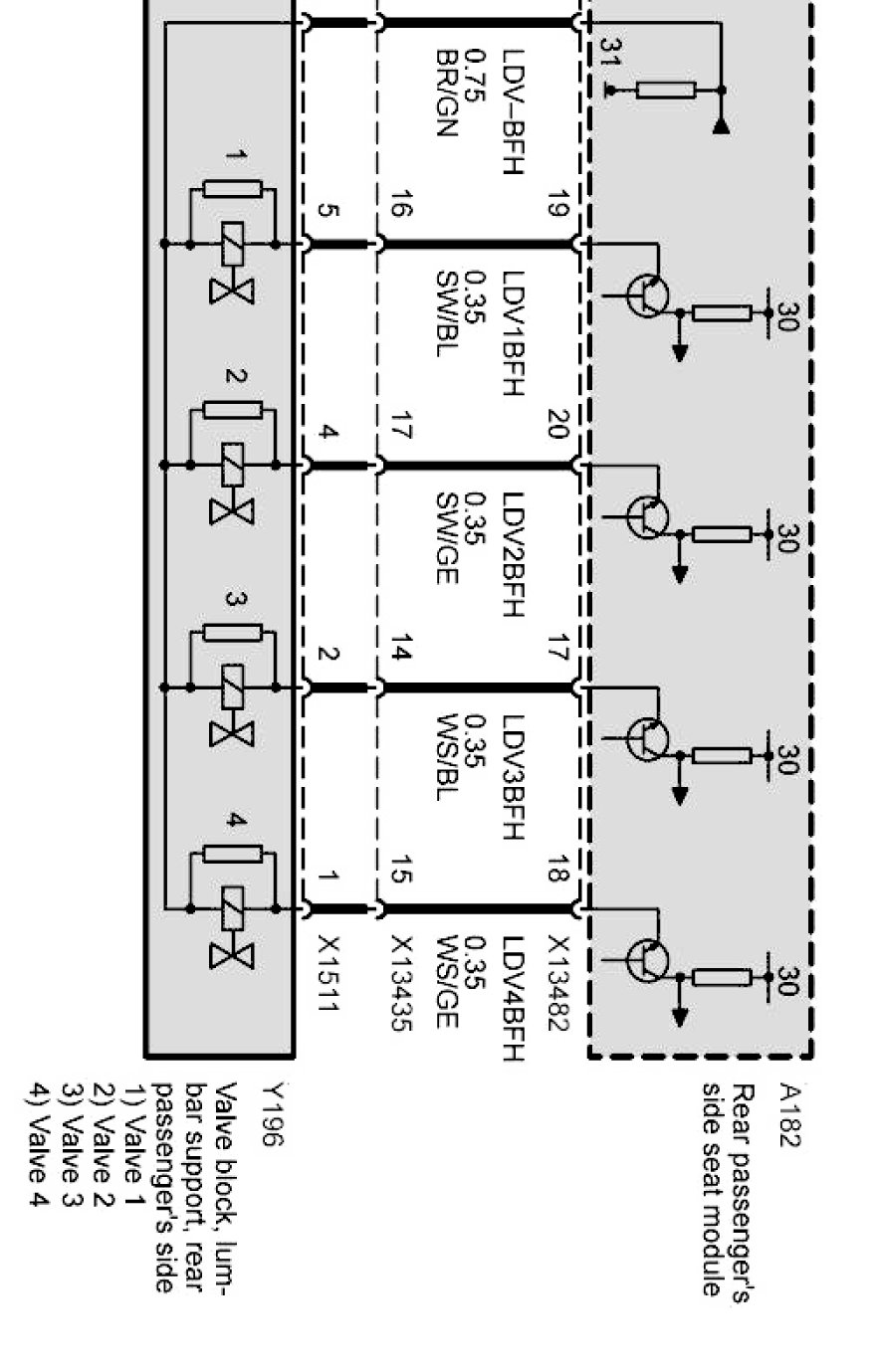

Lumbar support, rear passenger's side Part 2:



Lumbar support, rear passenger's side Part 3:
