Passenger's Lumbar Support Front Passenger's Active Seat (As of 09/06)

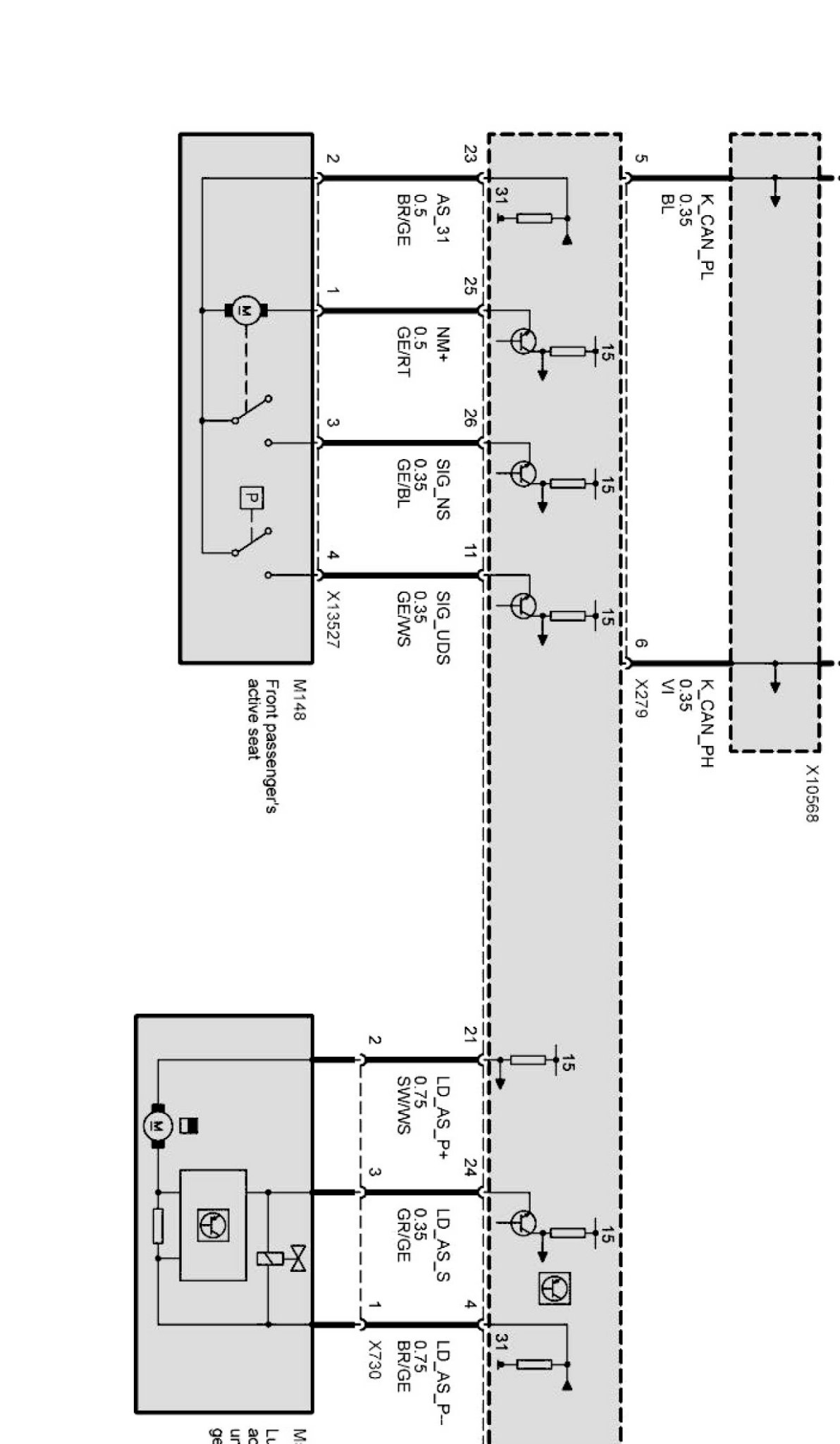

Passenger's lumbar support Front passenger's active seat Part 1:

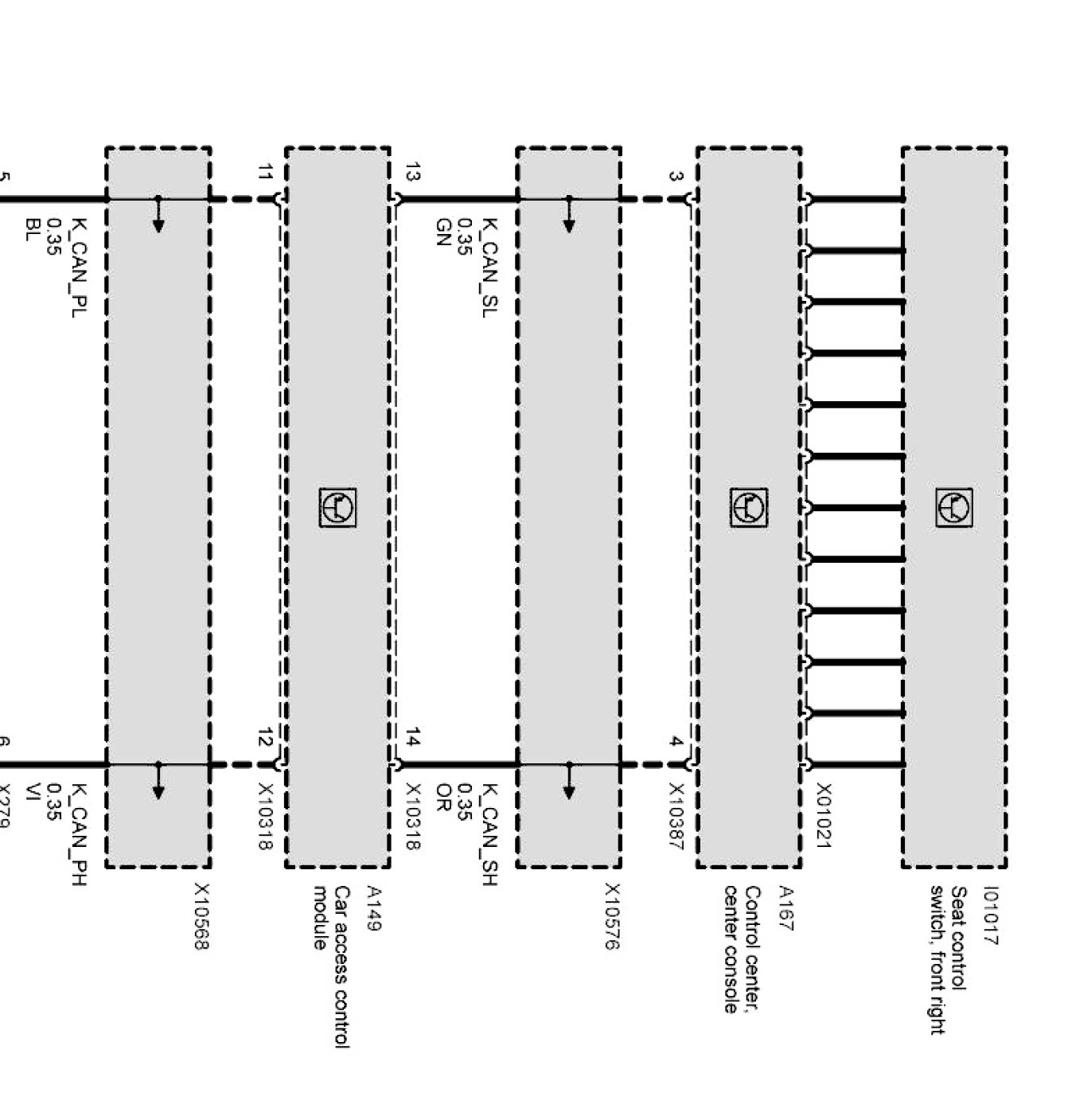

Passenger's lumbar support Front passenger's active seat Part 2:

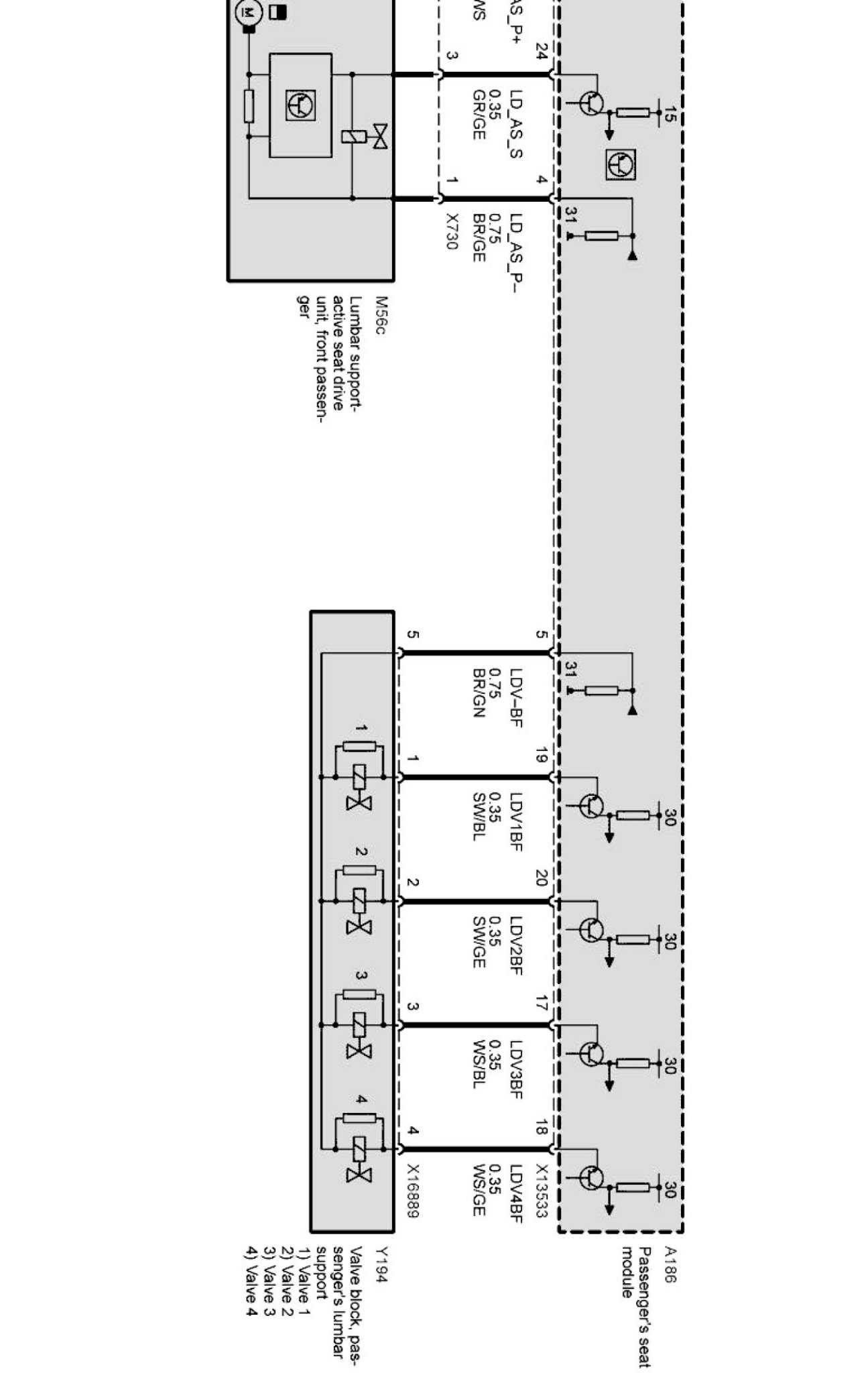

Passenger's lumbar support Front passenger's active seat Part 3:
