Seat Occupancy Detection, Rear (SMFAH, Driver's Side, Rear or SMBFH, Passenger's Side, Rear)

Seat occupancy detector, rear Part 1:



Seat occupancy detector, rear Part 2:

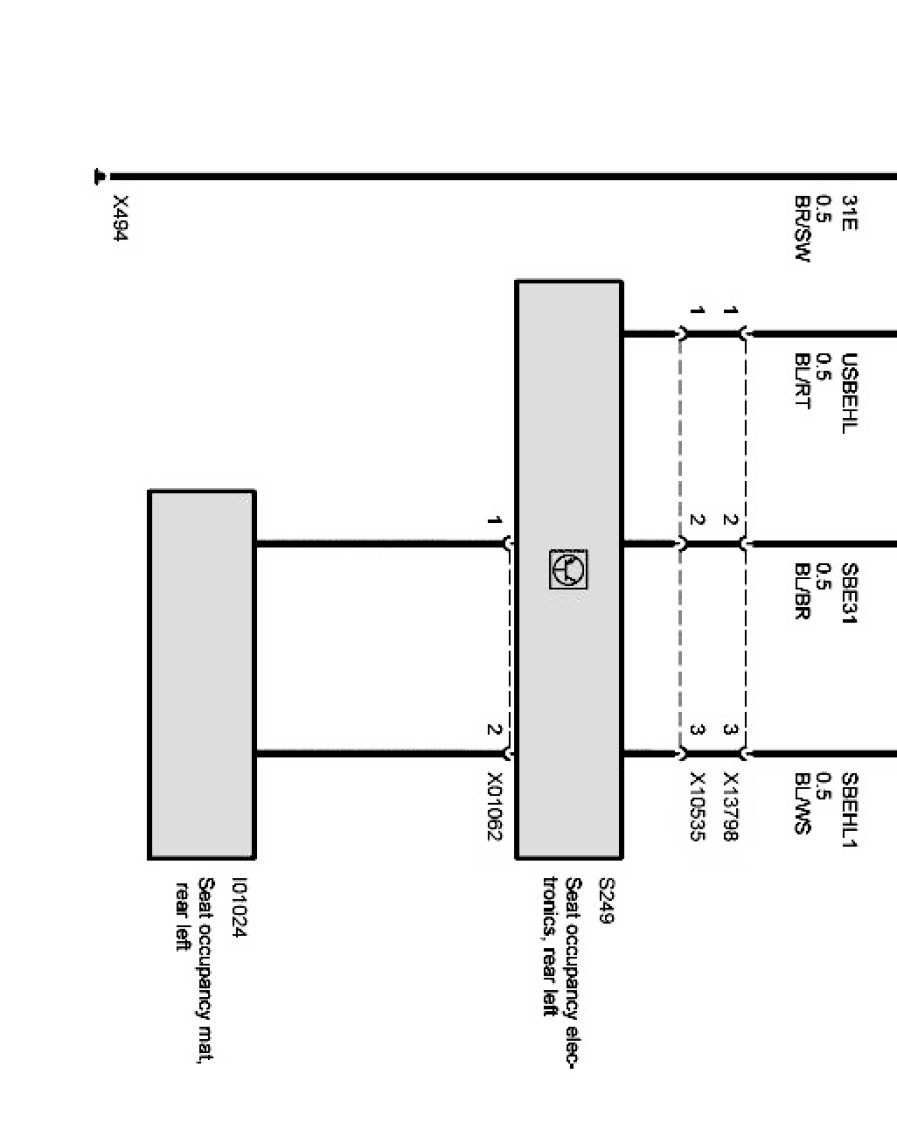

Seat occupancy detector, rear Part 3:



Seat occupancy detector, rear Part 4:
