Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Comfort Access (CA) >> "Comfort Entry" Access Functions >> Passenger's Door

Passenger's Door

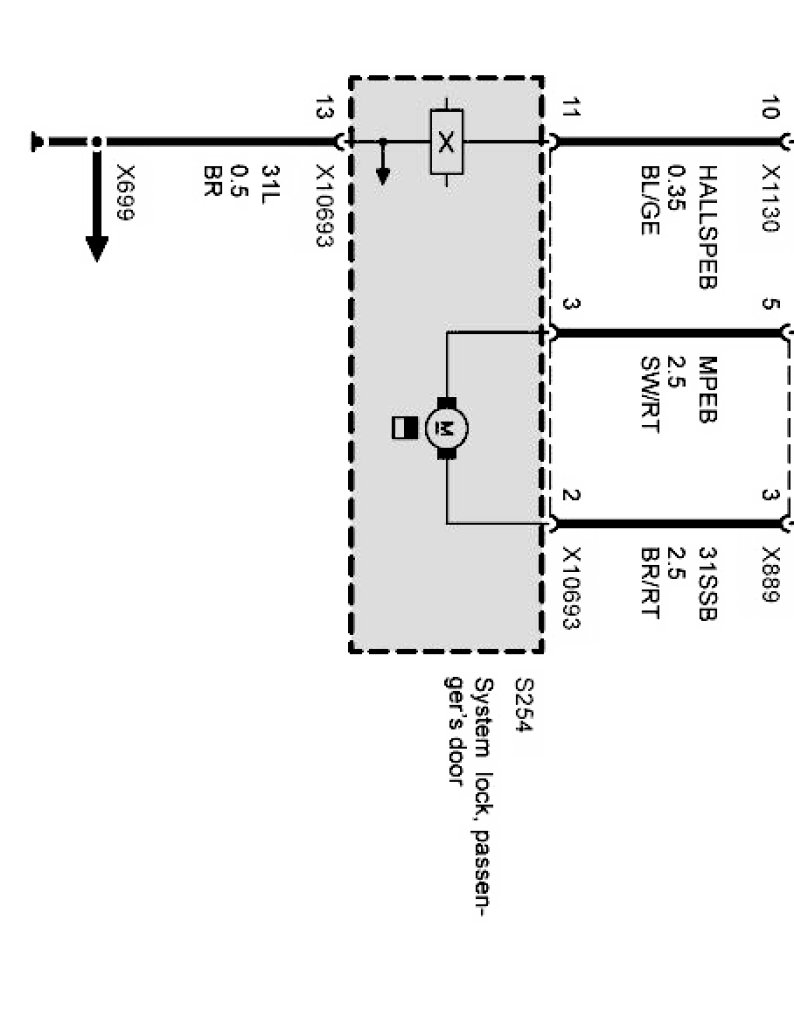

Comfort access, passenger's door Part 1:

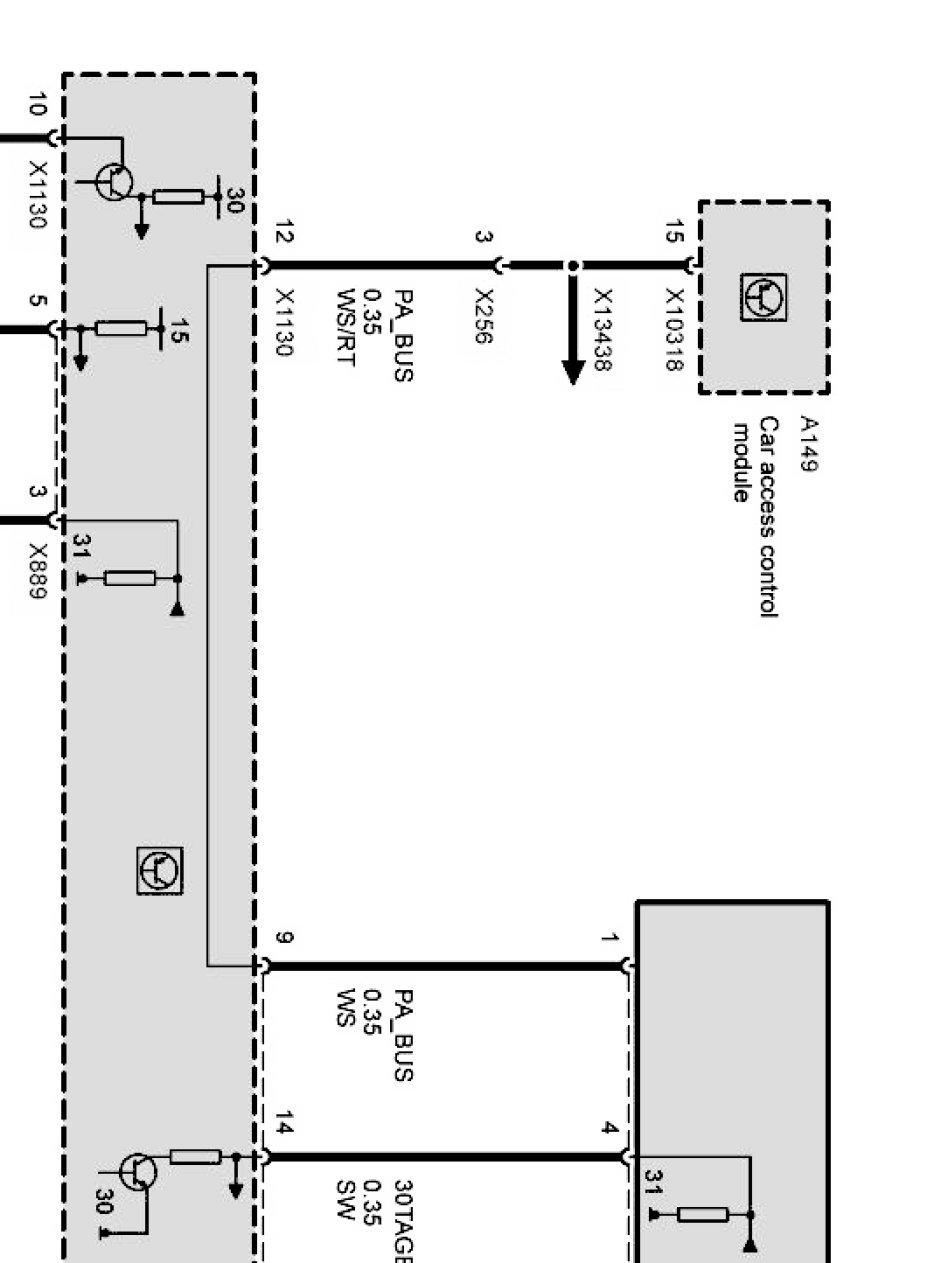

Comfort access, passenger's door Part 2:

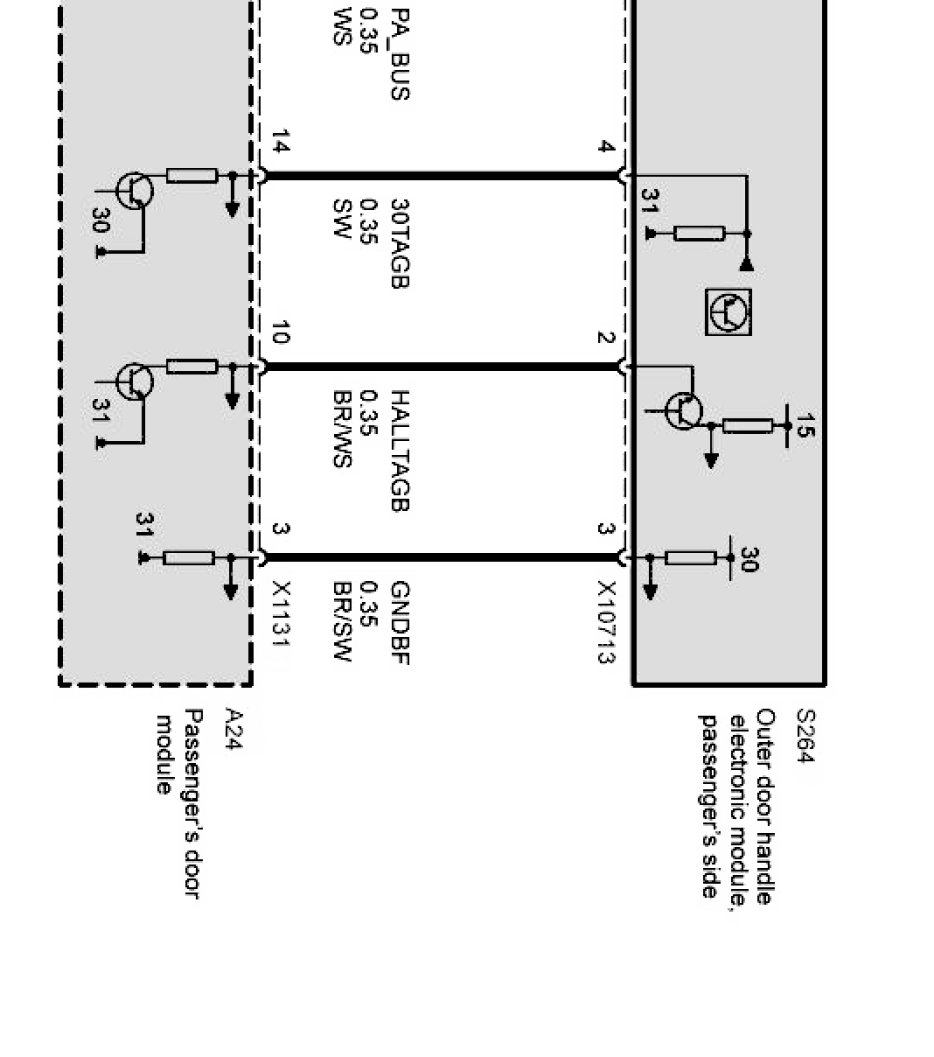

Comfort access, passenger's door Part 3:
