Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Lighting, Passenger Door >> Door Lighting, Passenger's Door

Door Lighting, Passenger's Door

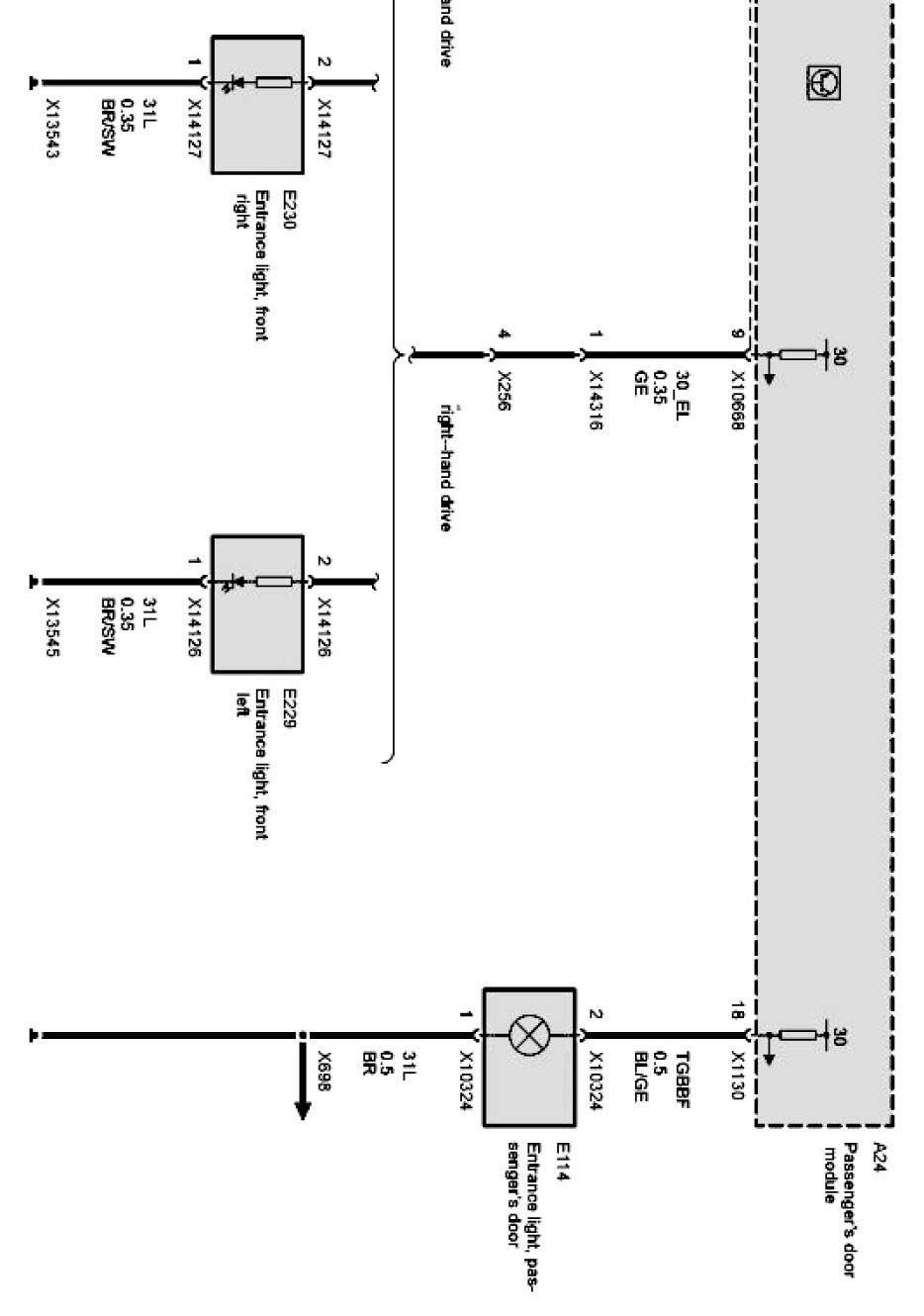

Door lighting, passenger's door Part 1:

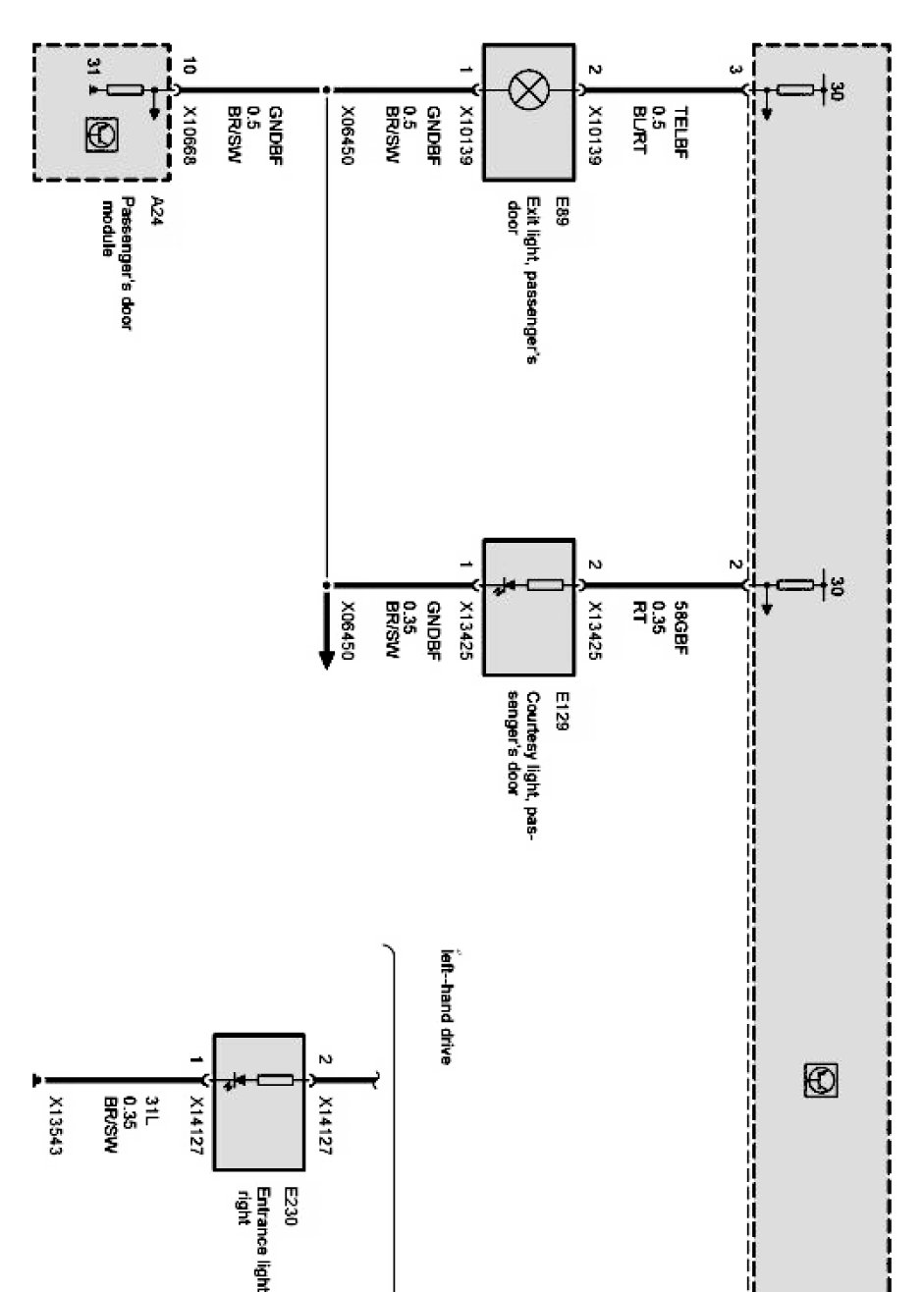

Door lighting, passenger's door Part 2:
