Lighting, Door, Driver's Side, Rear (Saloon)
>>
Door Lighting, Rear Driver's Side
Door Lighting, Rear Driver's Side

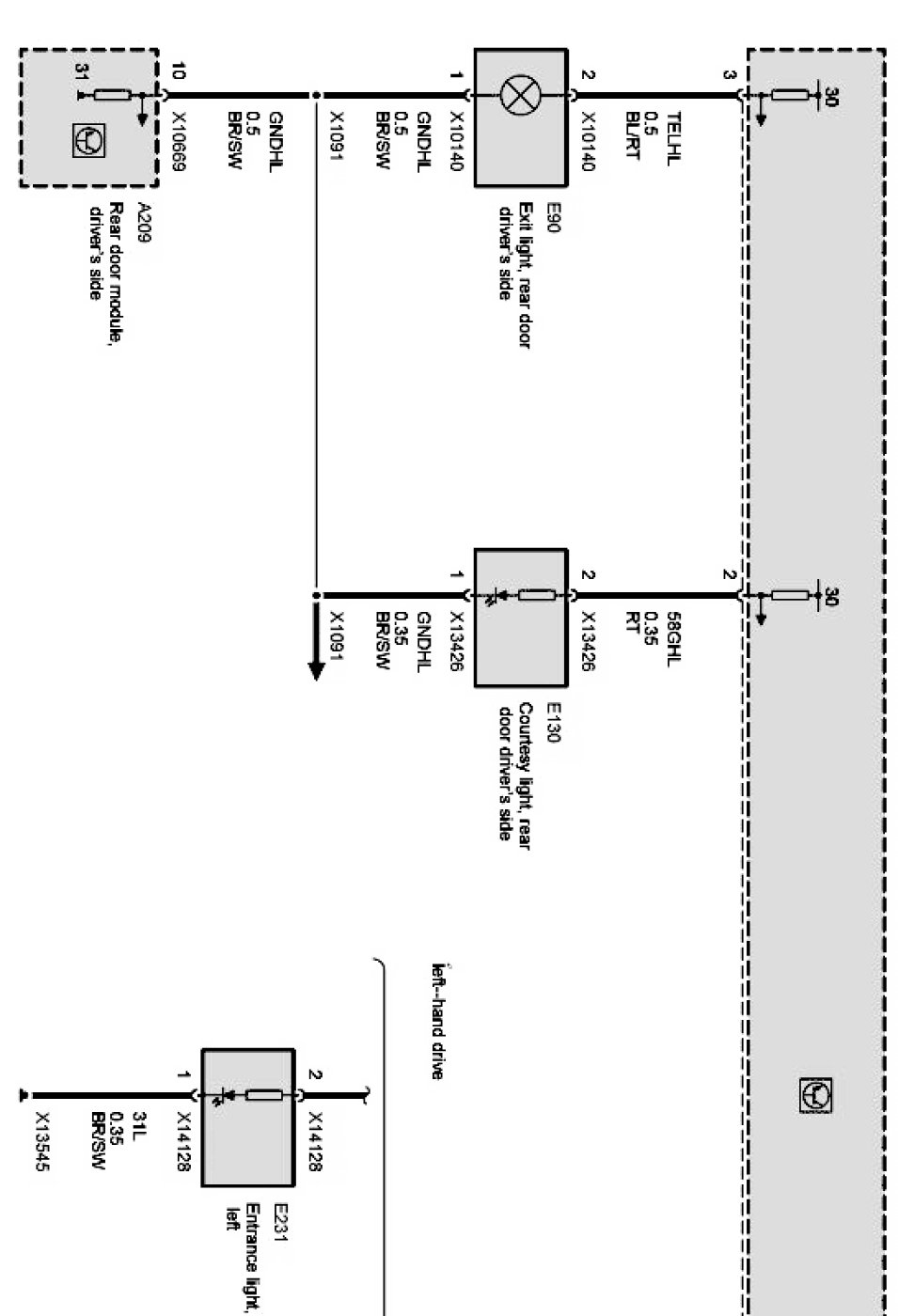

Door lighting, rear driver's side Part 1:

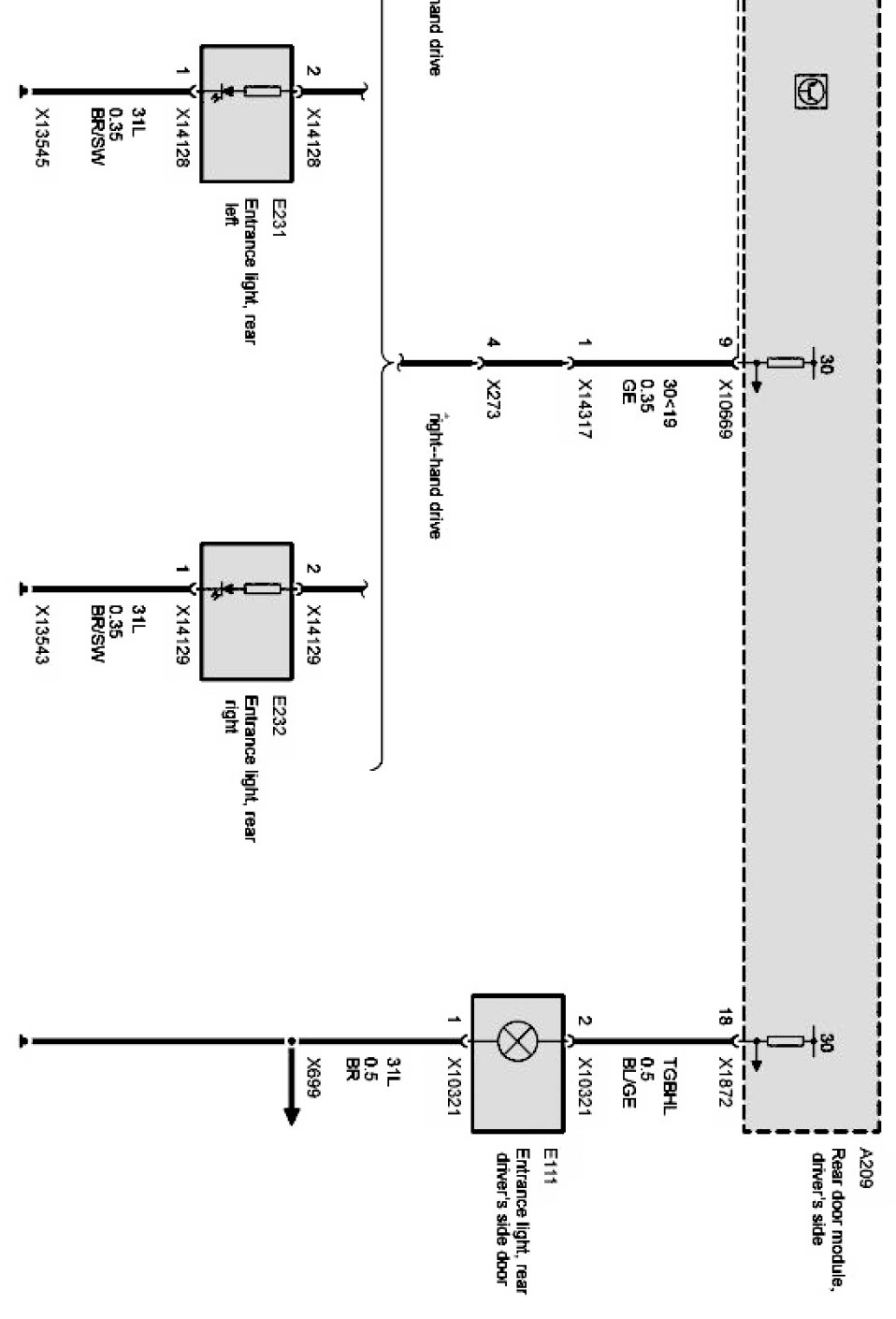

Door lighting, rear driver's side Part 2:
