Dynamic Headlight Beam Height Control (LM Light Module With Xenon Lights)

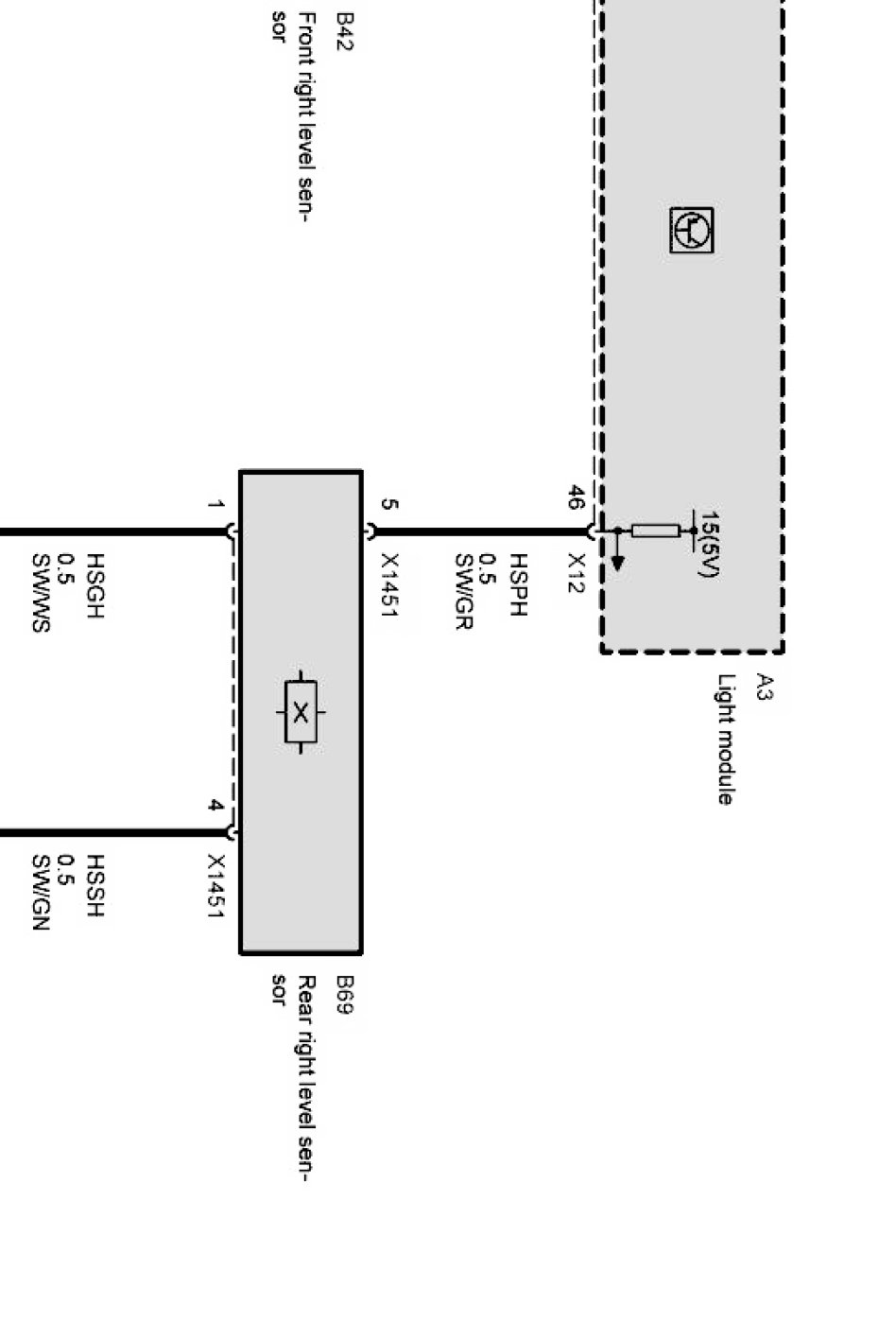

Dynamic headlight beam height control Part 1:

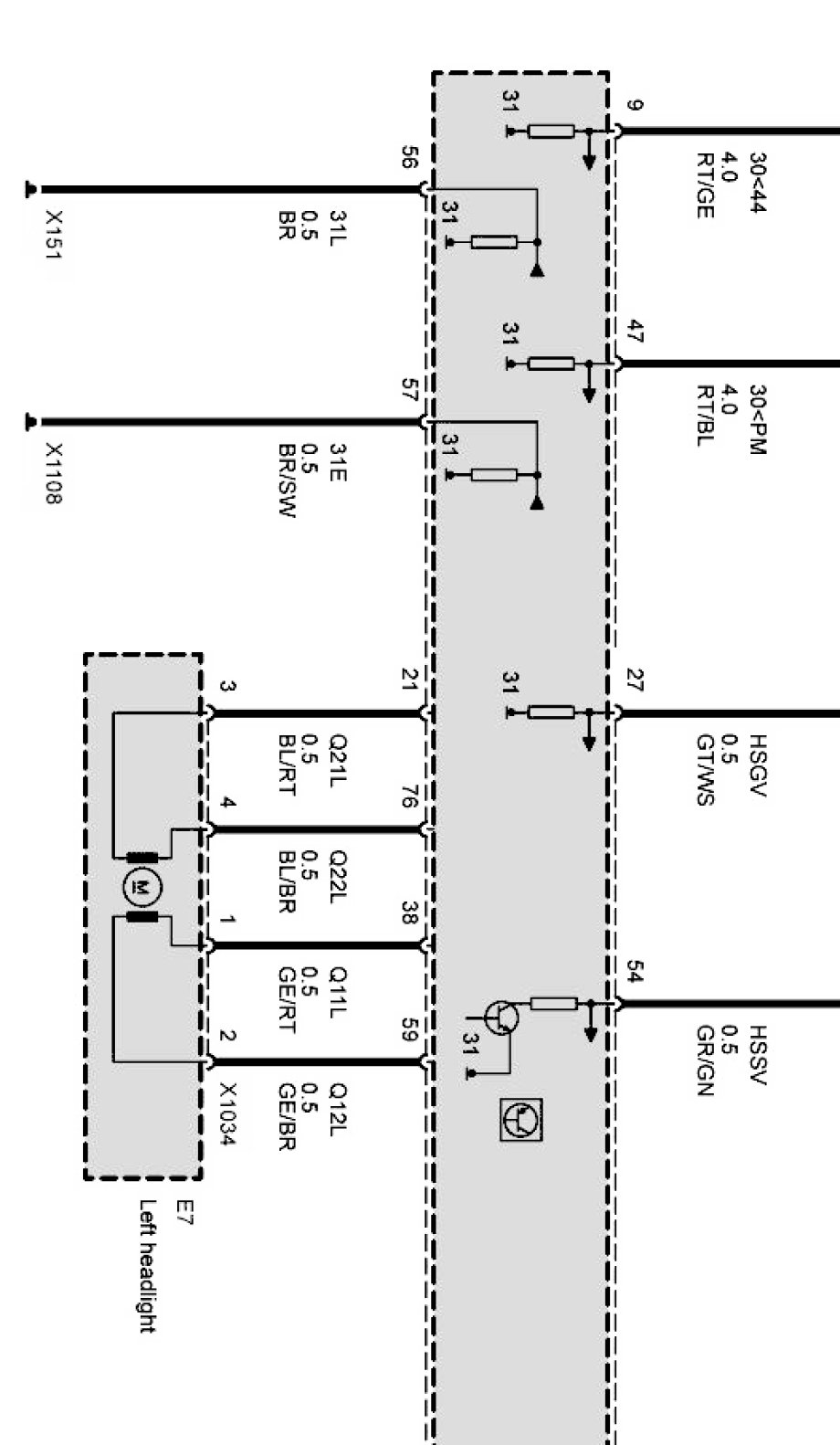

Dynamic headlight beam height control Part 2:

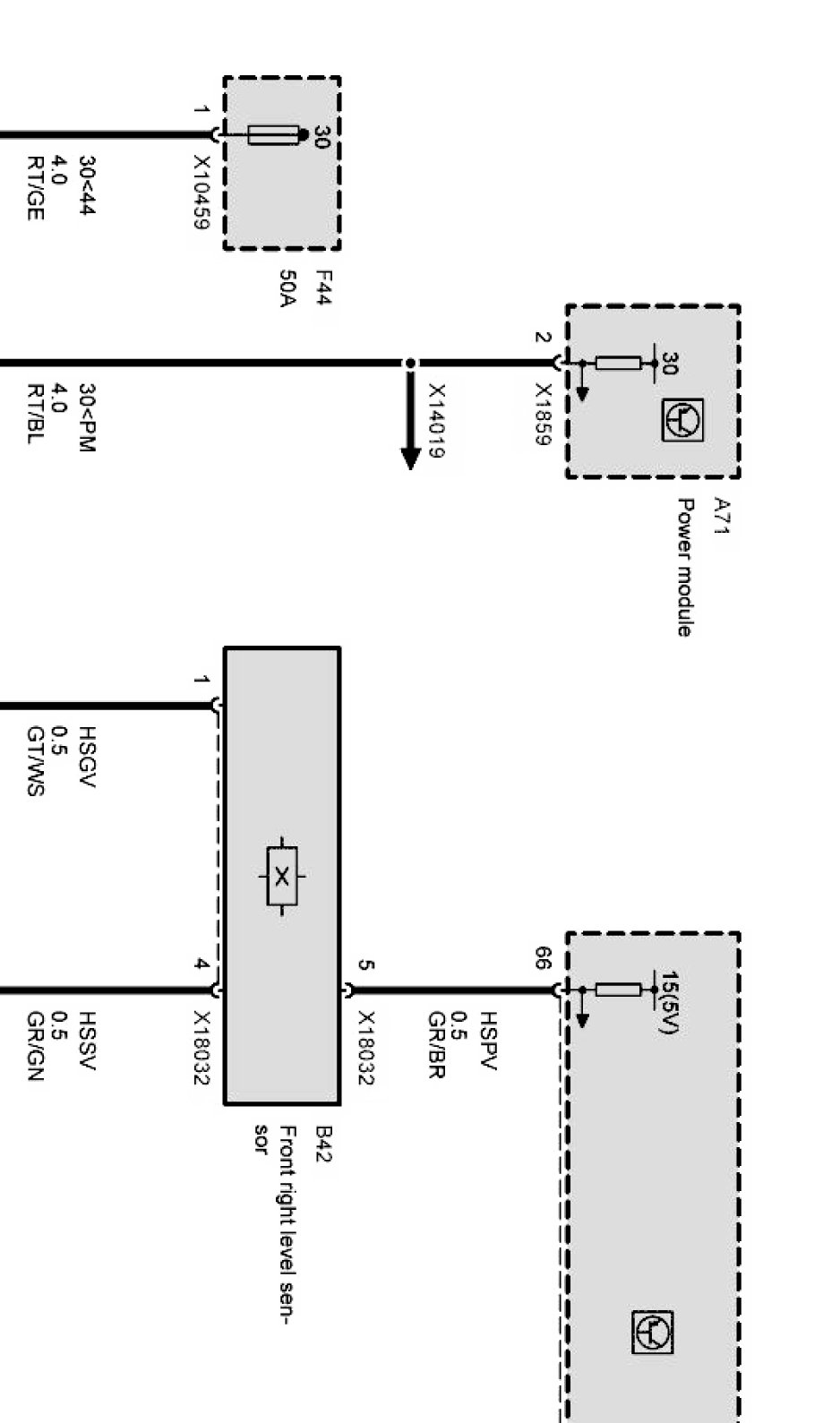

Dynamic headlight beam height control Part 3:

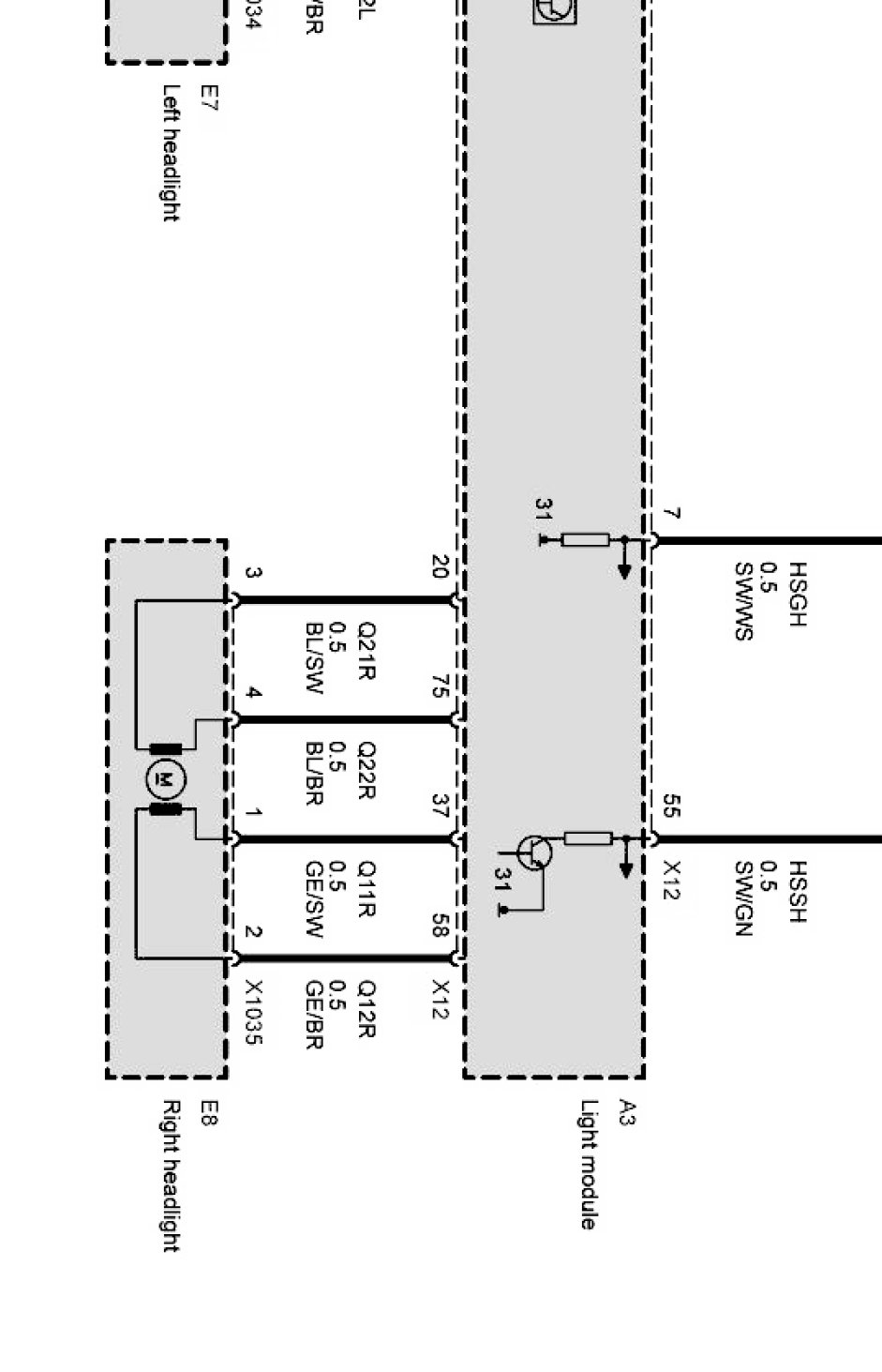

Dynamic headlight beam height control Part 4:
