FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2007
>>
760Li (E66) V12-6.0L (N73TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Lighting
>>
Driving Lights/High Beam/Headlight Flasher
>>
Low Beam, High Beam Headlights (LM With Xenon Lights)
Low Beam, High Beam Headlights (LM With Xenon Lights)

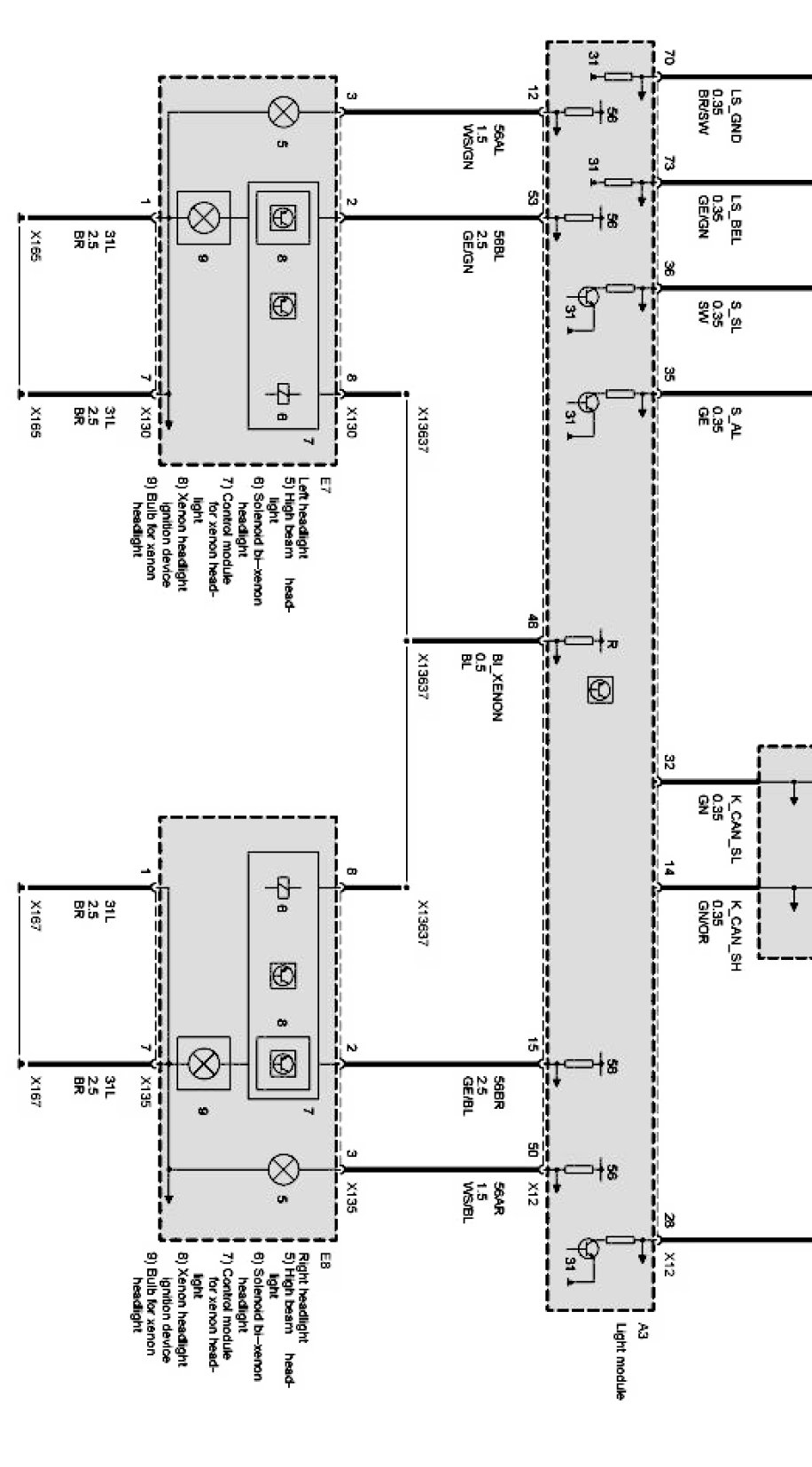

Low beam, high beam headlights Part 1:

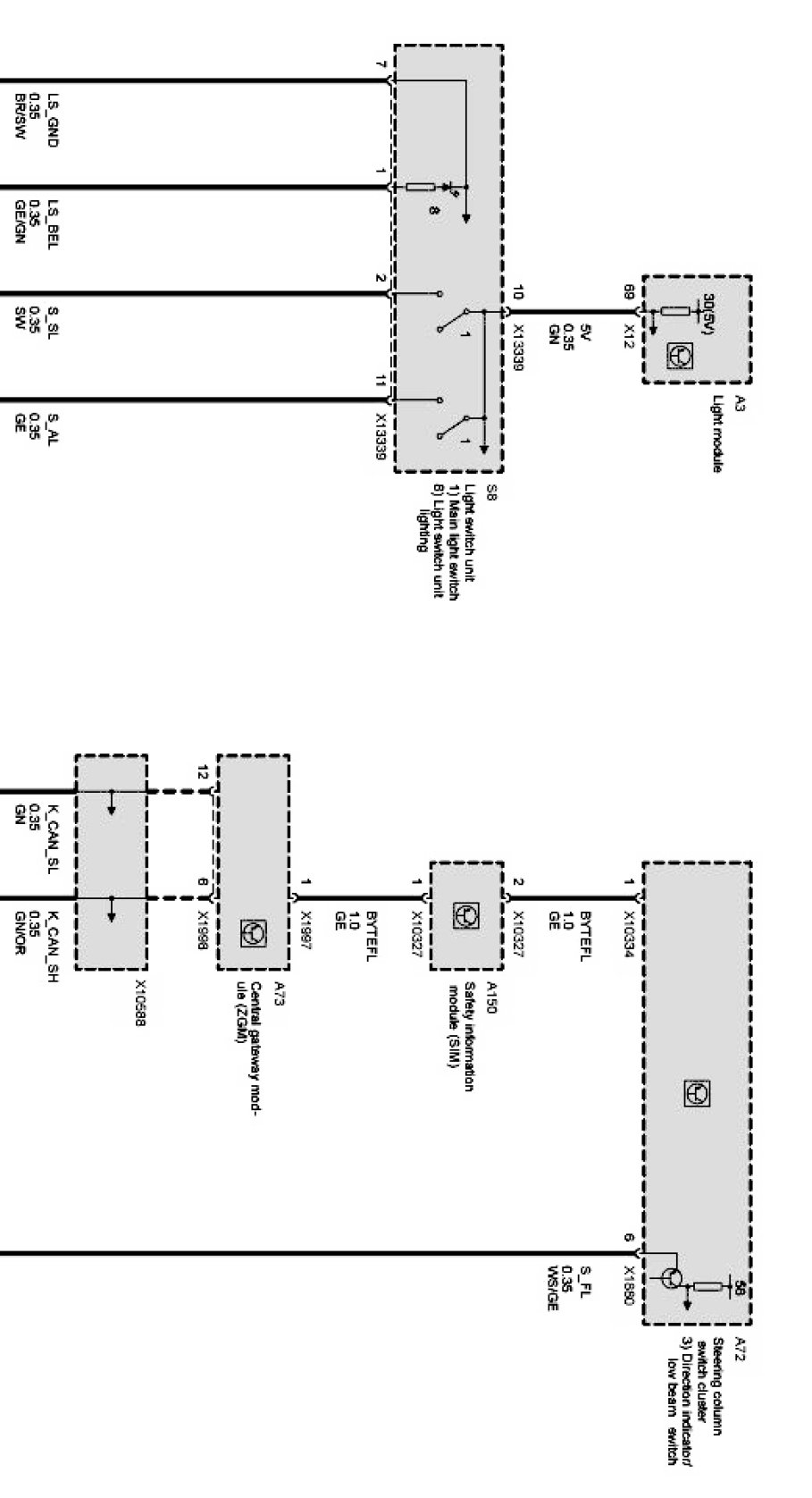

Low beam, high beam headlights Part 2:
