Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X6 >> X60105 Adapter 121301, Storage Location N201

X60105 Adapter 121301, Storage Location N201

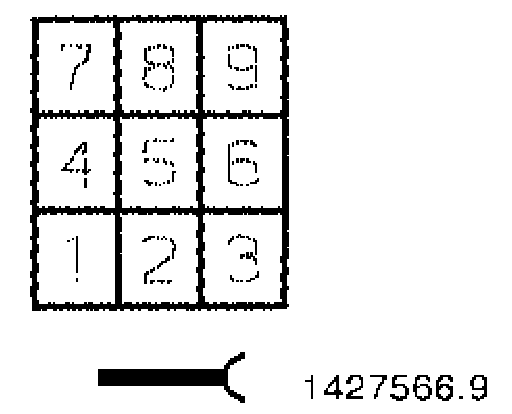

X60105:

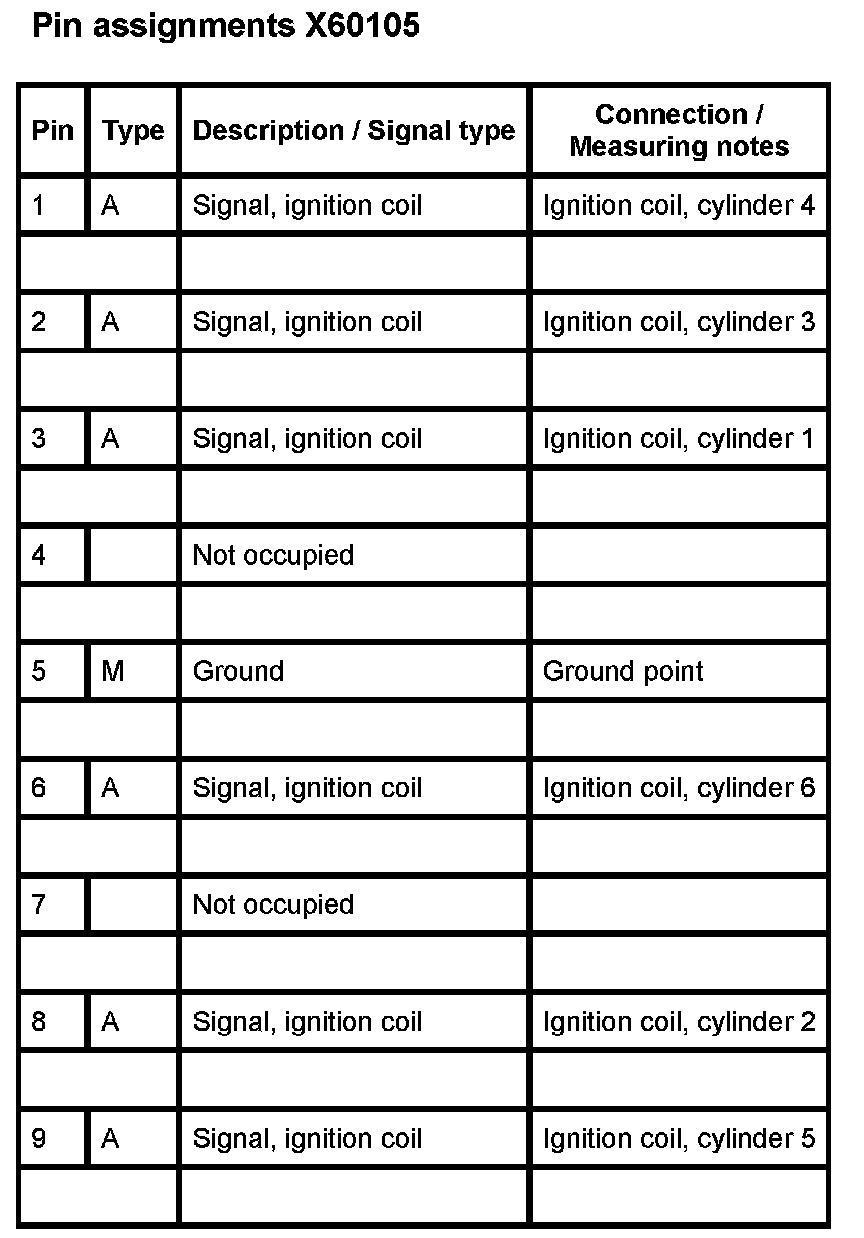

X60105:
