Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X6 >> X60102 Adapter 121302, Storage Location N202

X60102 Adapter 121302, Storage Location N202

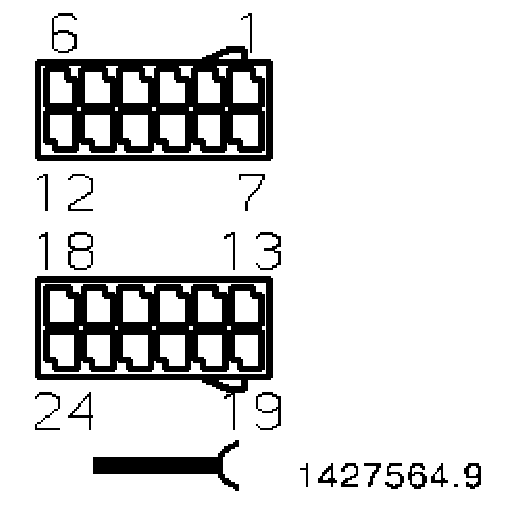

X60102:

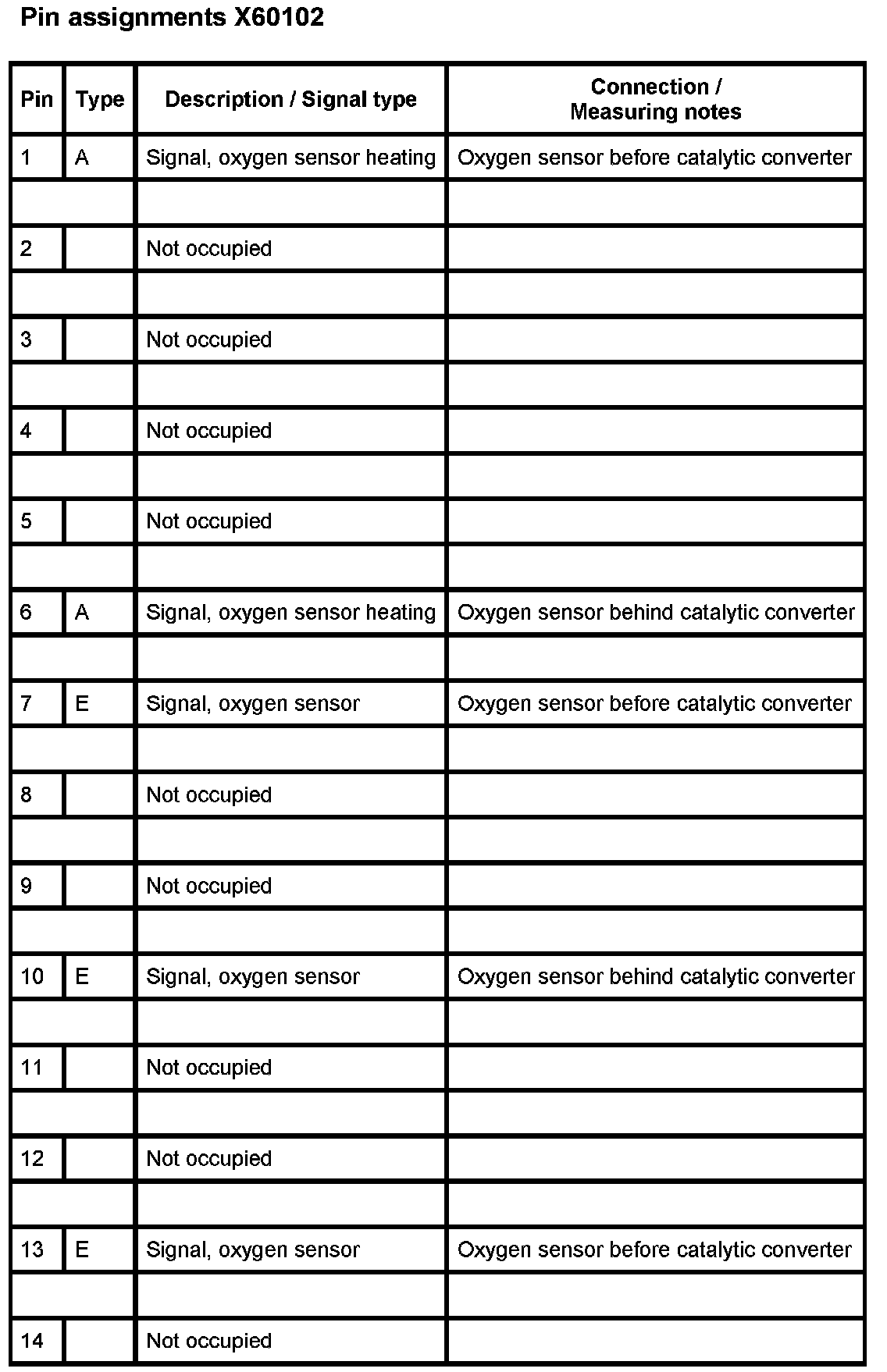

X60102 - Part 1:

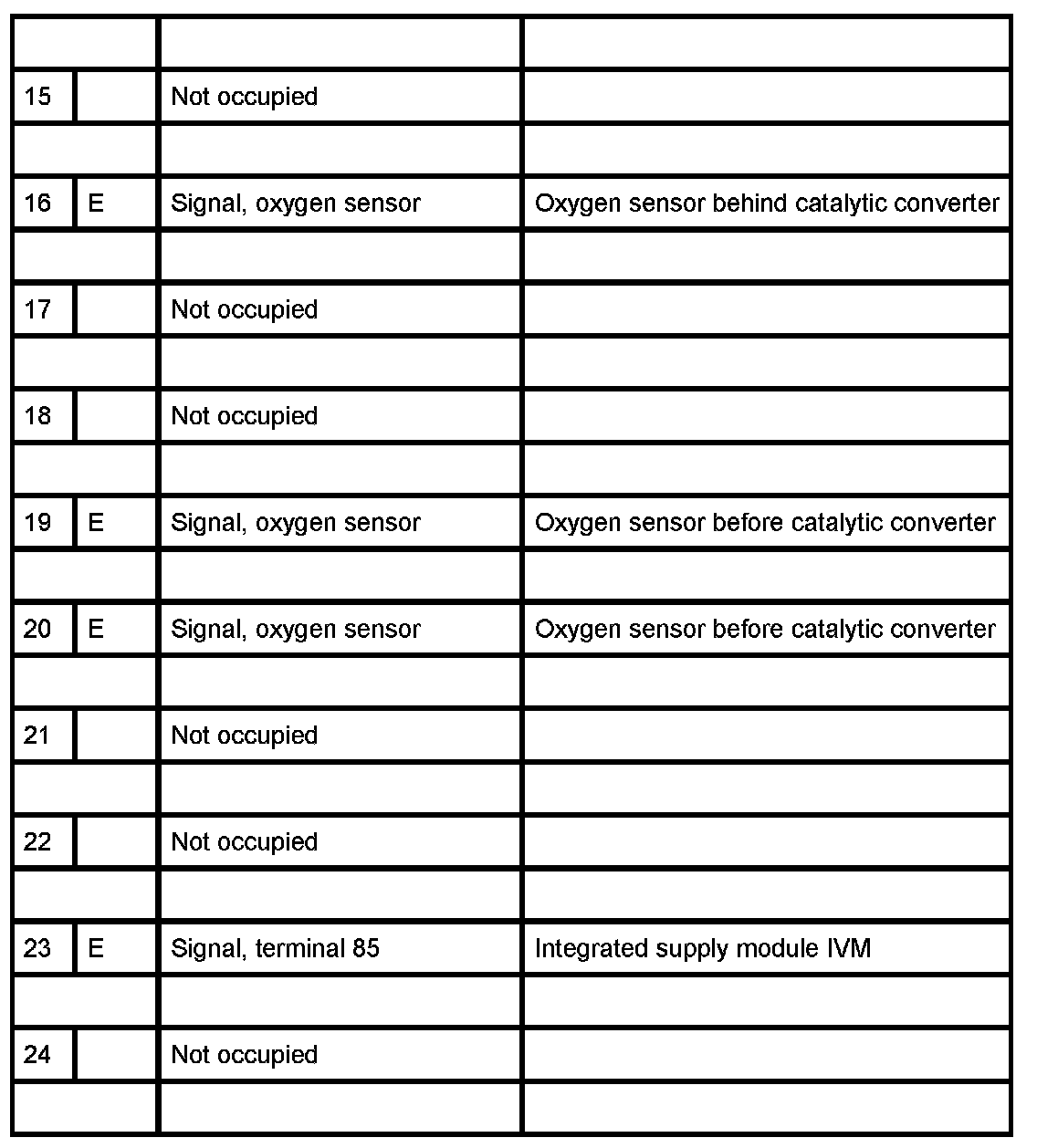

X60102 - Part 2:
