X1877 Adapter 613160, Storage Location P210

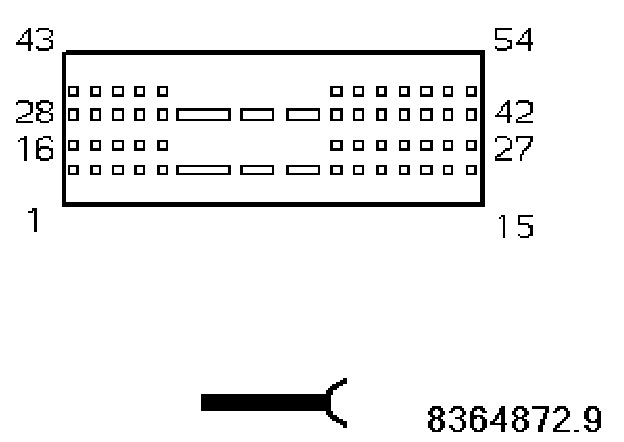

X1877:

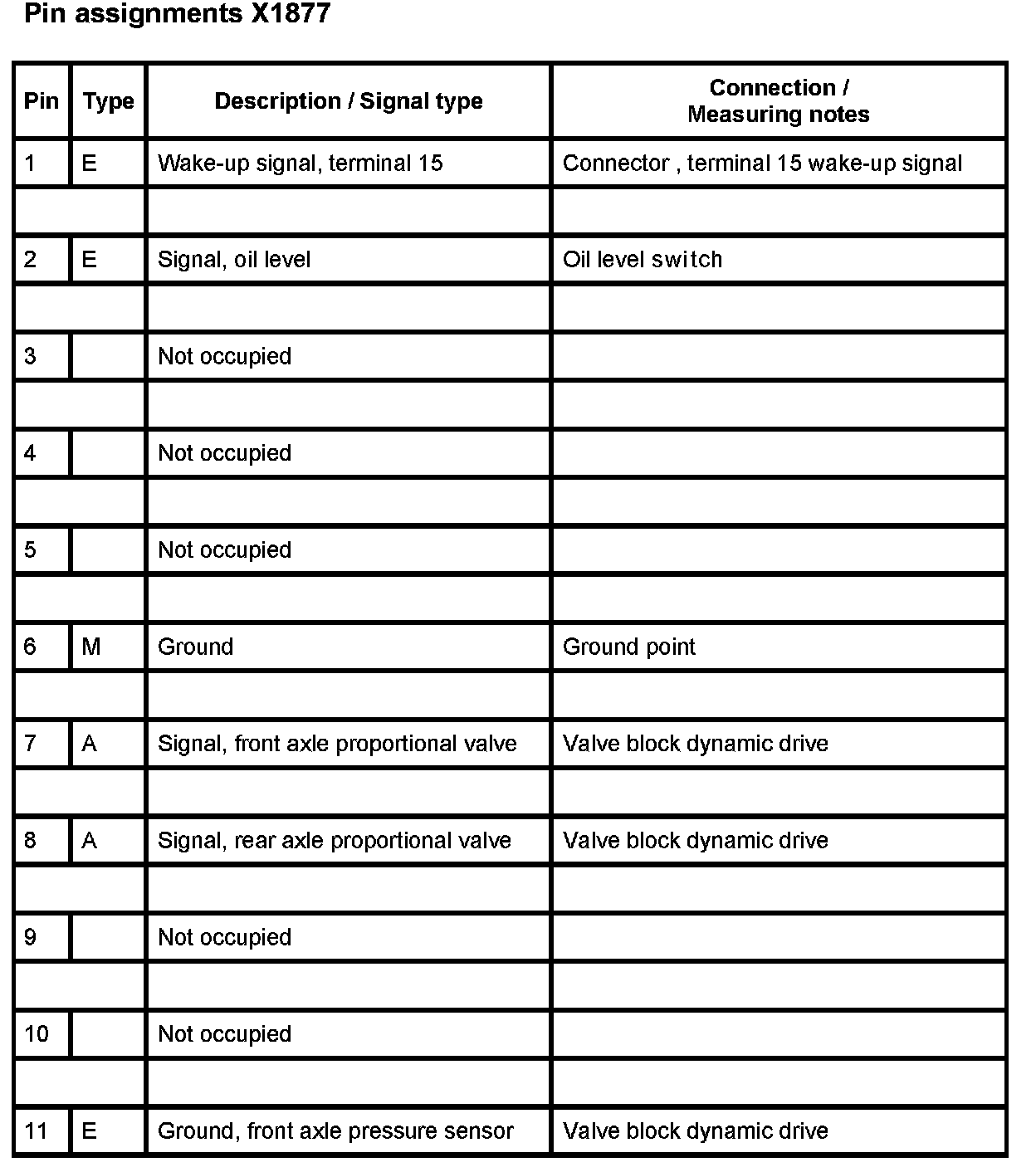

X1877 - Part 1:

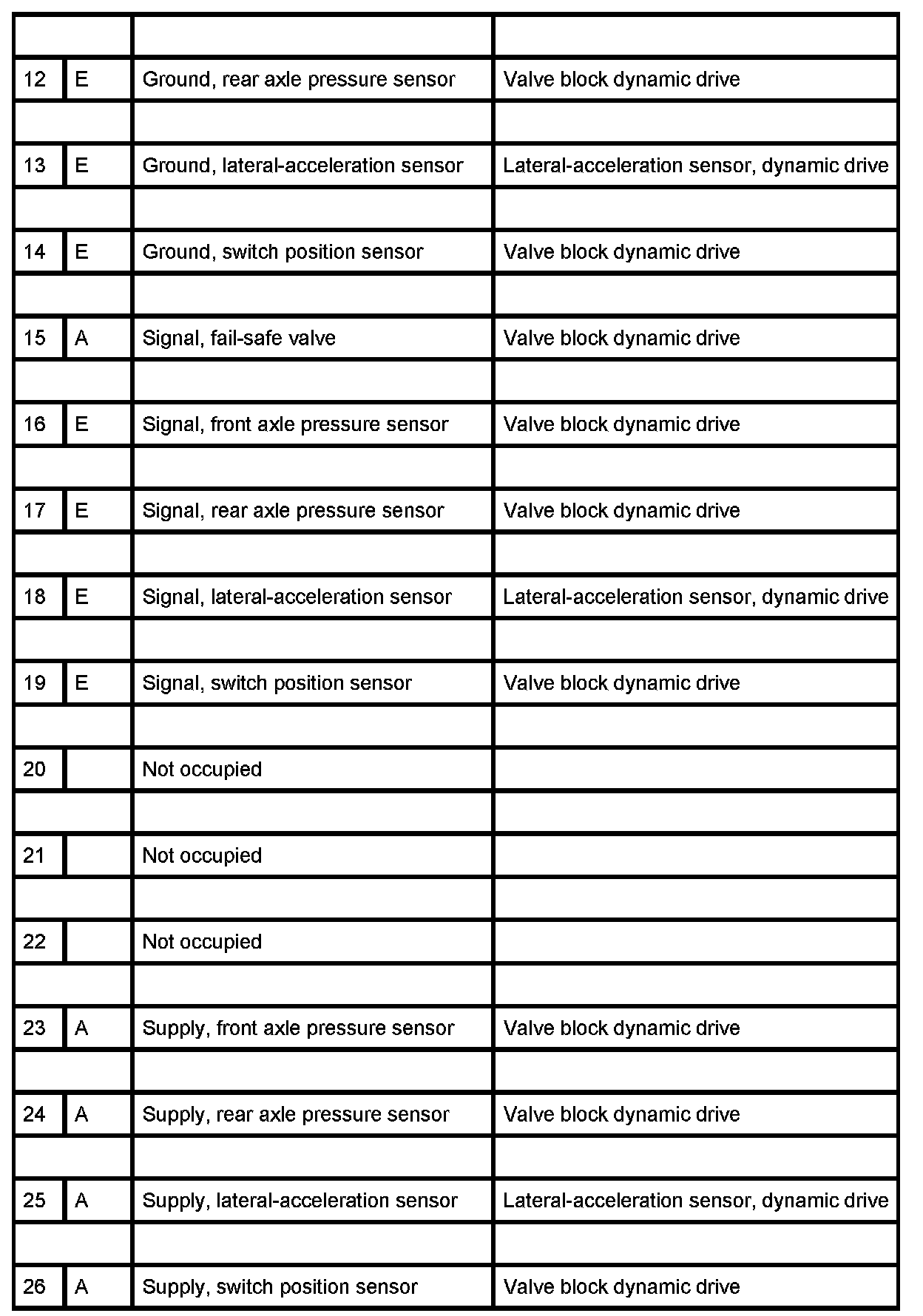

X1877 - Part 2:

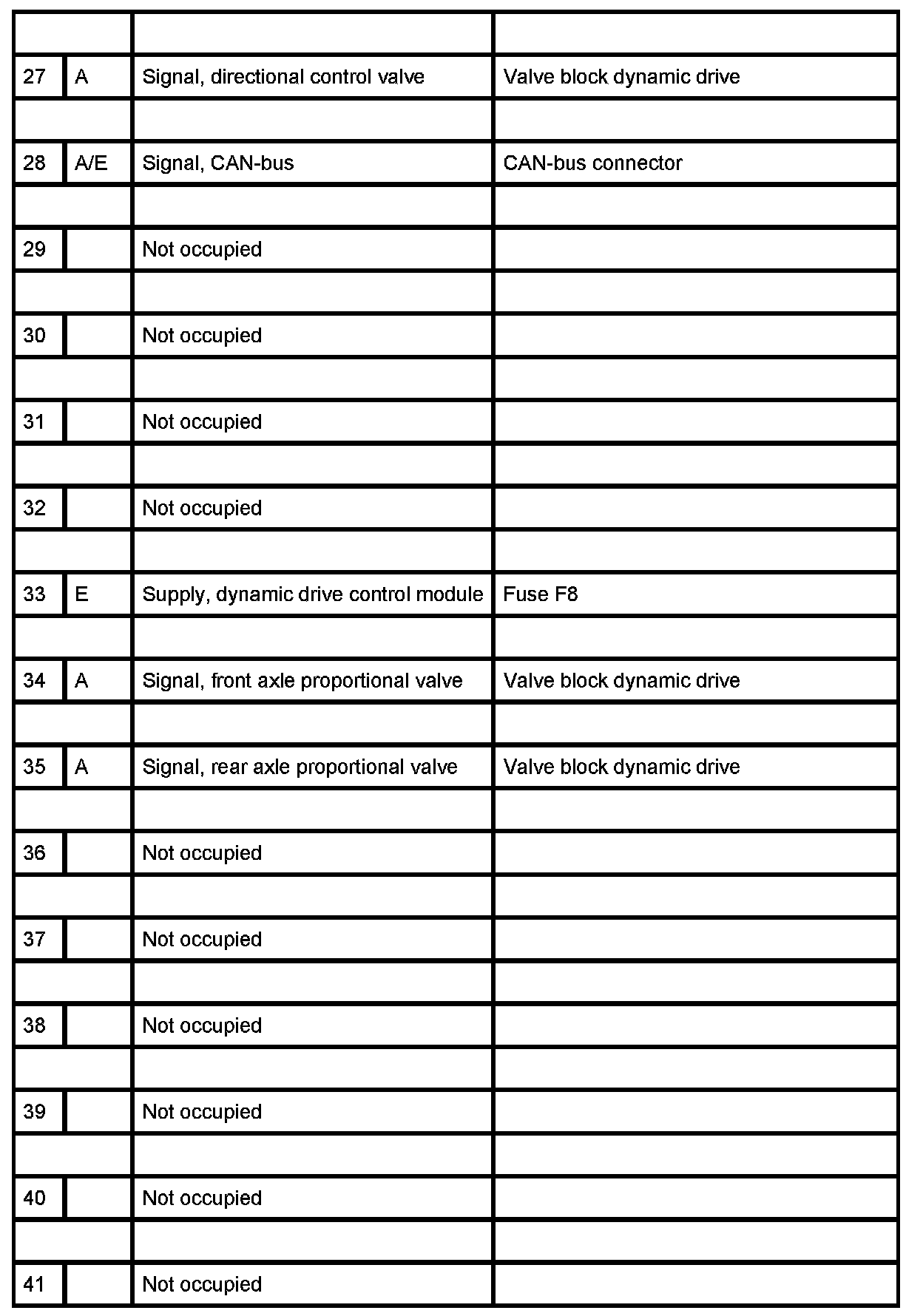

X1877 - Part 3:

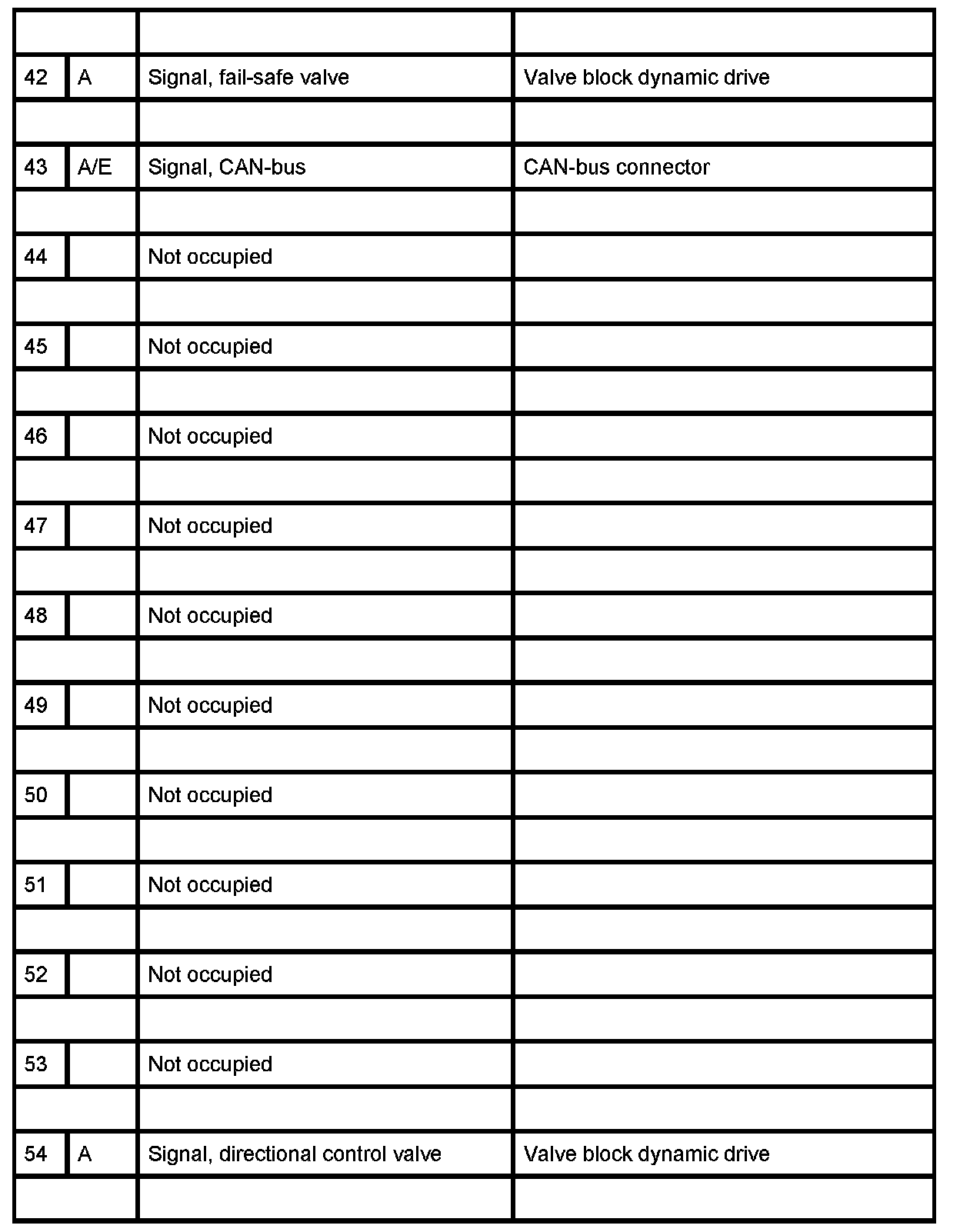

X1877 - Part 4:
