Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X18500 Adapter 614464, Storage Location C109

X18500 Adapter 614464, Storage Location C109

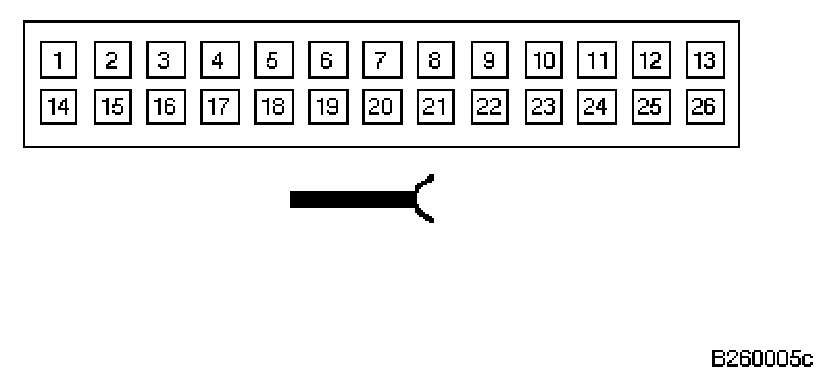

X18500:

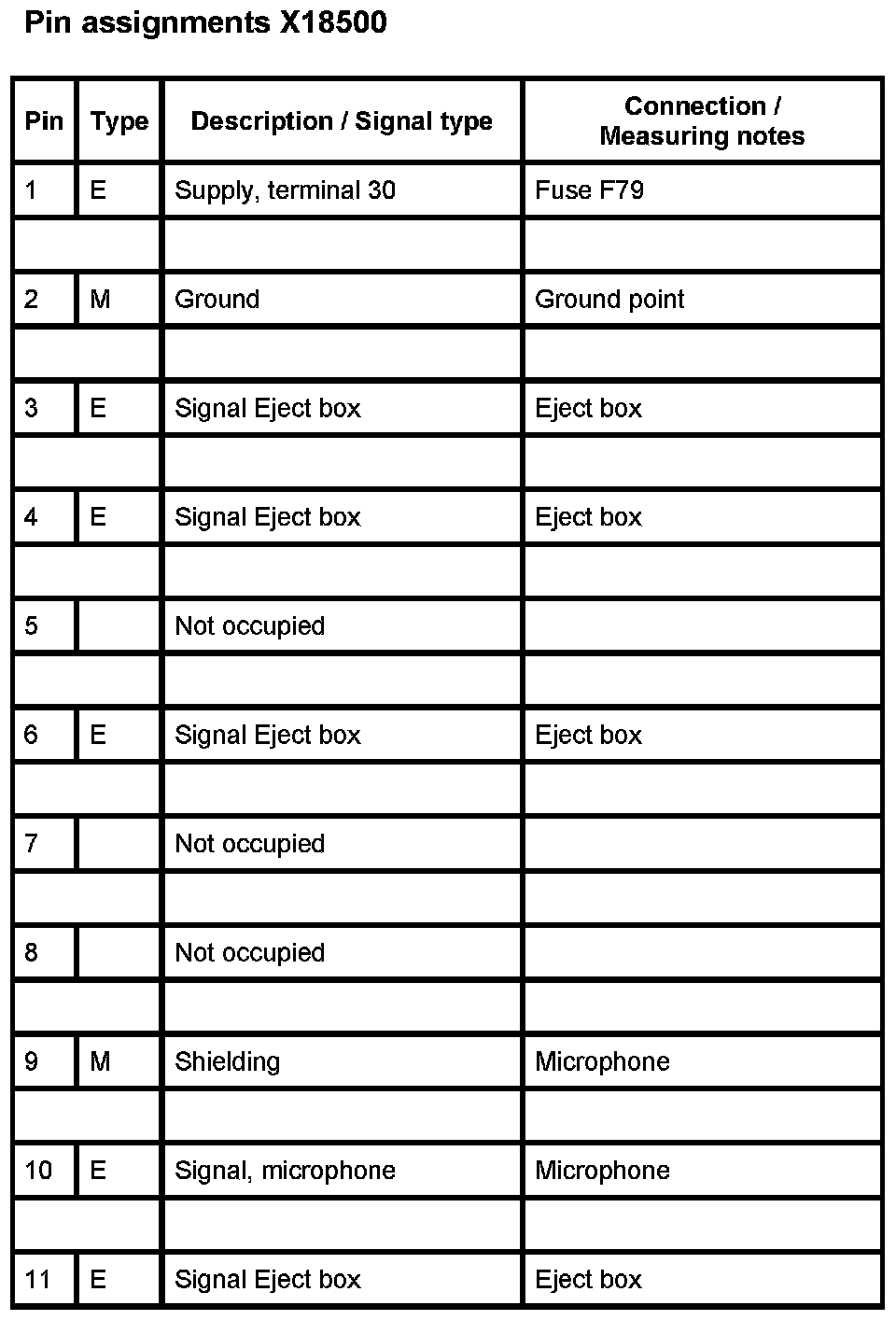

X18500 - Part 1:

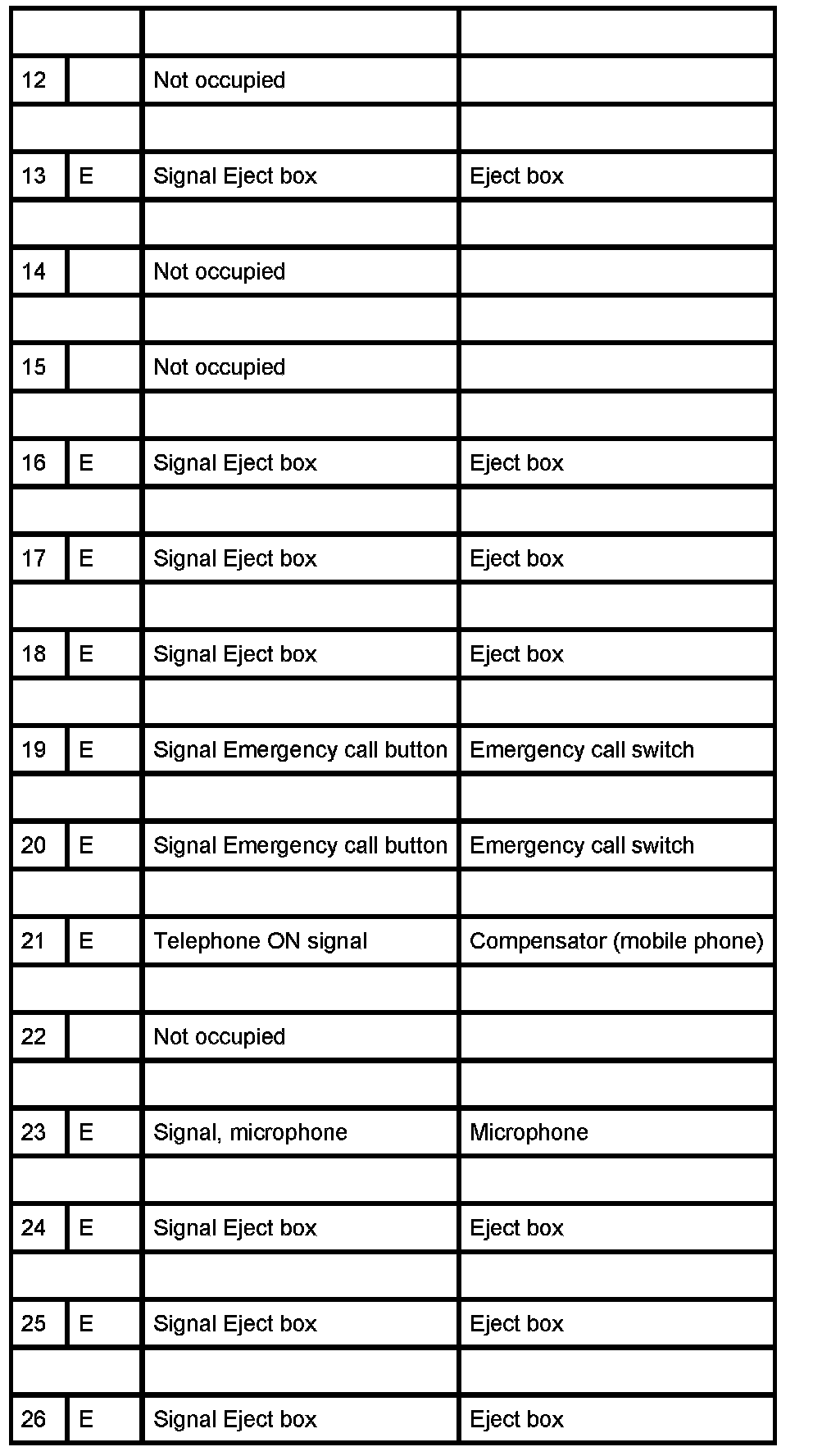

X18500 - Part 2:
