Connectors From X1
>>
X18179 Adapter 612170, Storage Location P207
>>
A186 Passenger's Seat Module (With Lumbar Support Up to 09/06)
A186 Passenger's Seat Module (With Lumbar Support Up to 09/06)

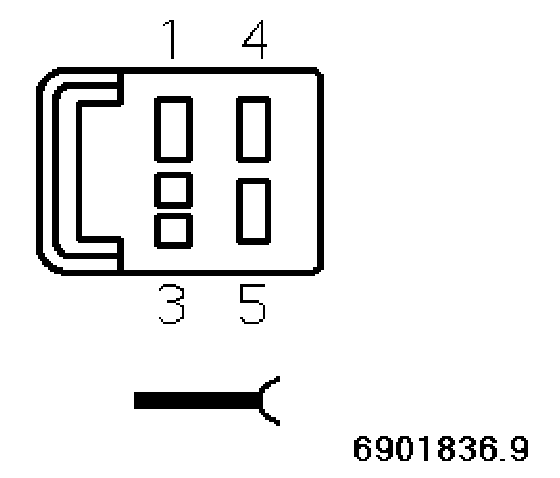

X18179:

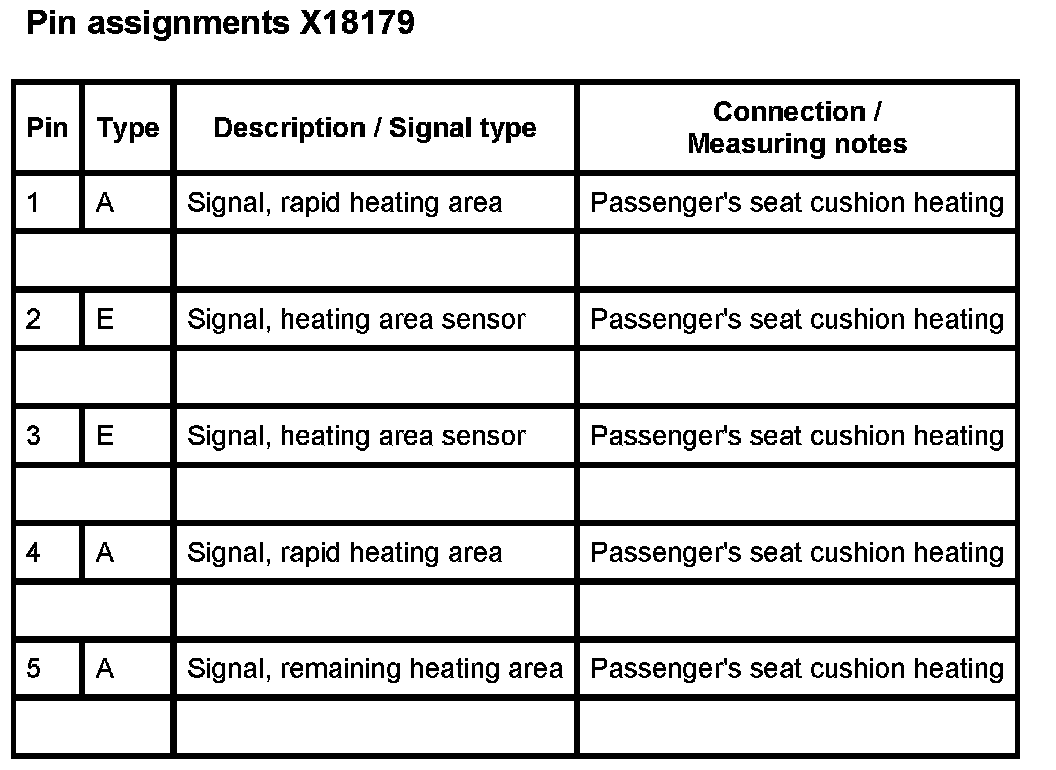

X18179:
