760Li (E66) V12-6.0L (N73TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

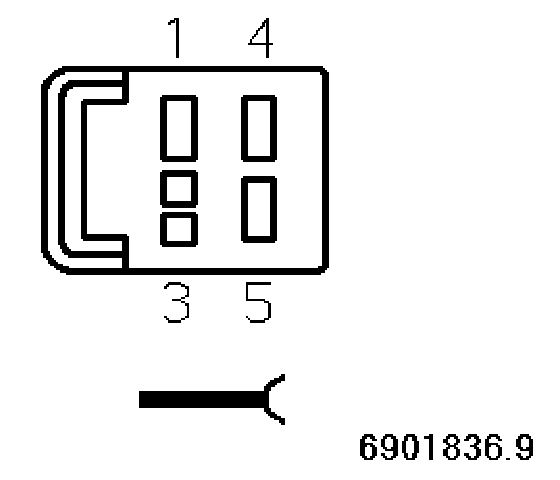

X18178 Adapter 612170, Storage Location P207
>>
A187 Driver's Seat Module (With Lumbar Support Up to 09/06)
A187 Driver's Seat Module (With Lumbar Support Up to 09/06)

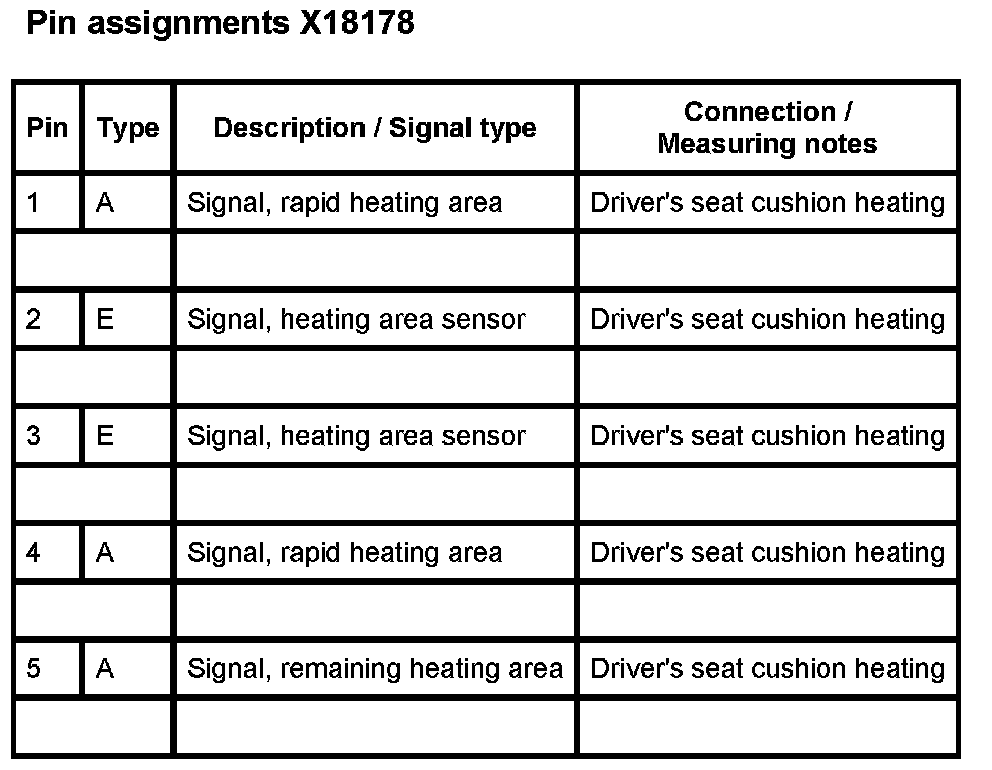

X18178:
X18178:
