760Li (E66) V12-6.0L (N73TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X14134 Adapter 630410, Storage Location L201
>>
U400 Transceiver, Telephone (As of 03/04 Up to 03/05)
U400 Transceiver, Telephone (As of 03/04 Up to 03/05)

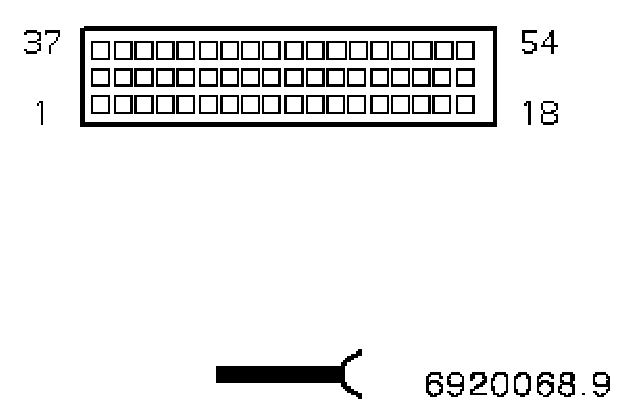

X14134:

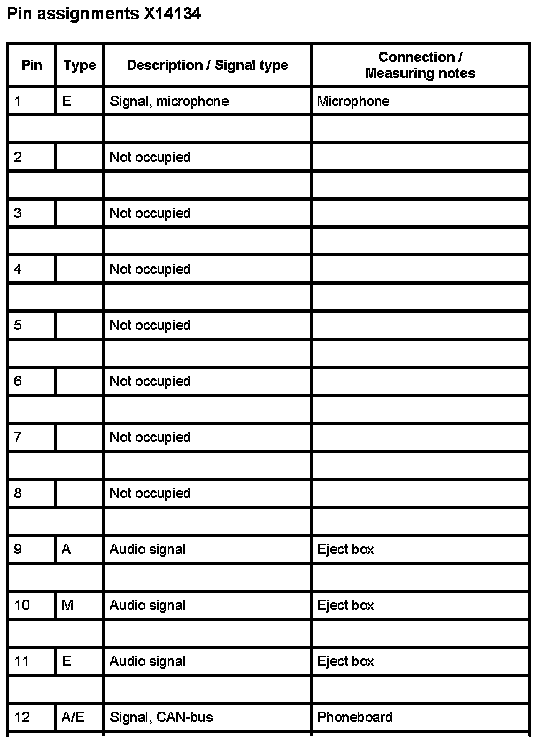

X14134 Part 1:

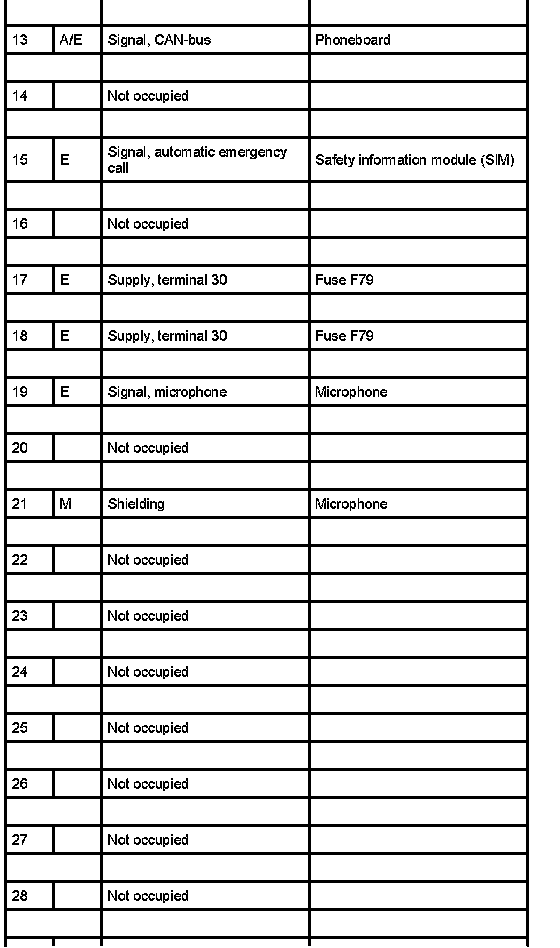

X14134 Part 2:

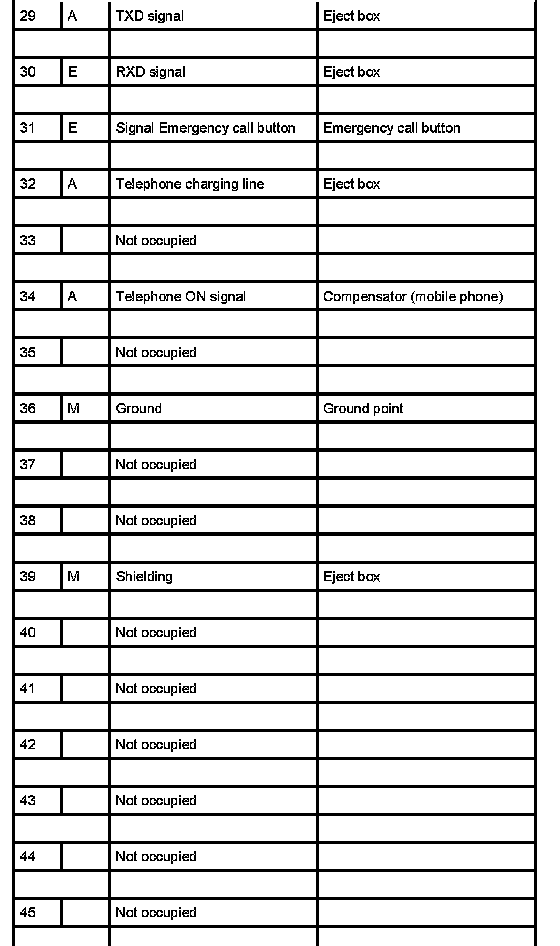

X14134 Part 3:

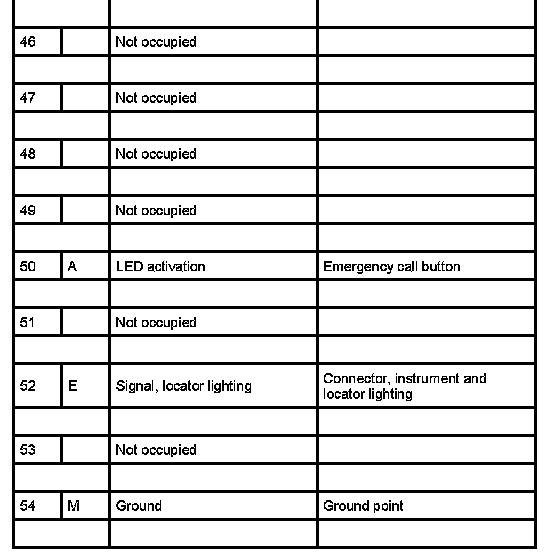

X14134 Part 4:
