Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13882 OPPS Adapter 663120, Storage Location X2..

X13882 OPPS Adapter 663120, Storage Location X2..

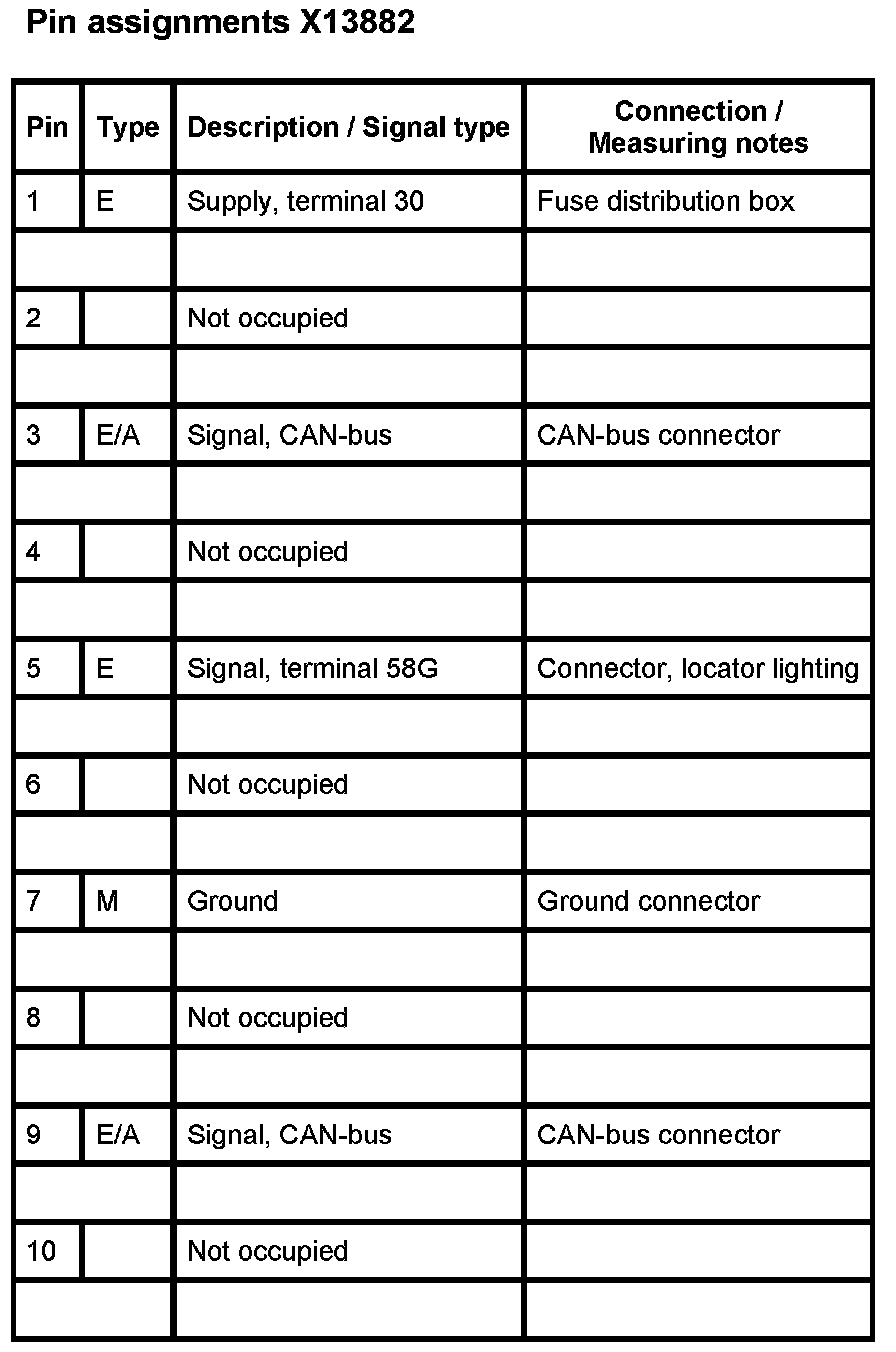

X13882 - Part 1:

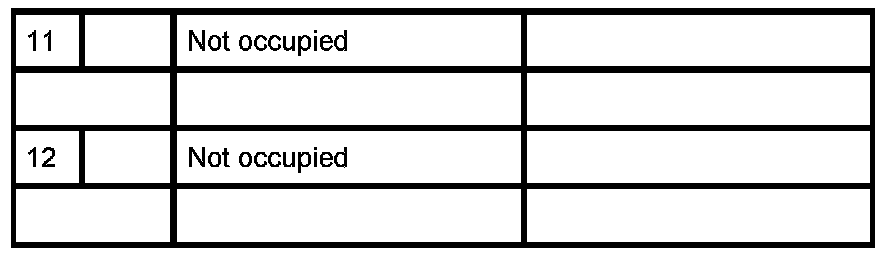

X13882 - Part 2:
