Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13742 Adapter 614464, Storage Location C106 >> A11 A/C Control Module (Automatic Heater - A/C, Basis, W/O Rear Roller Blind or Auto. Heater-A/C, basis, W/ Rear Roller Blind)

A11 A/C Control Module (Automatic Heater - A/C, Basis, W/O Rear Roller Blind or Auto. Heater-A/C, basis, W/ Rear Roller Blind)

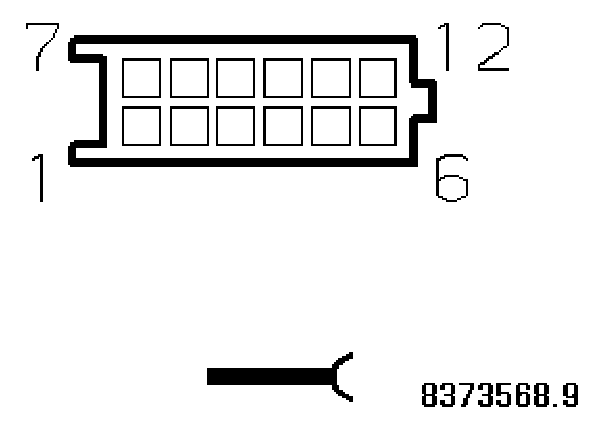

X13742:

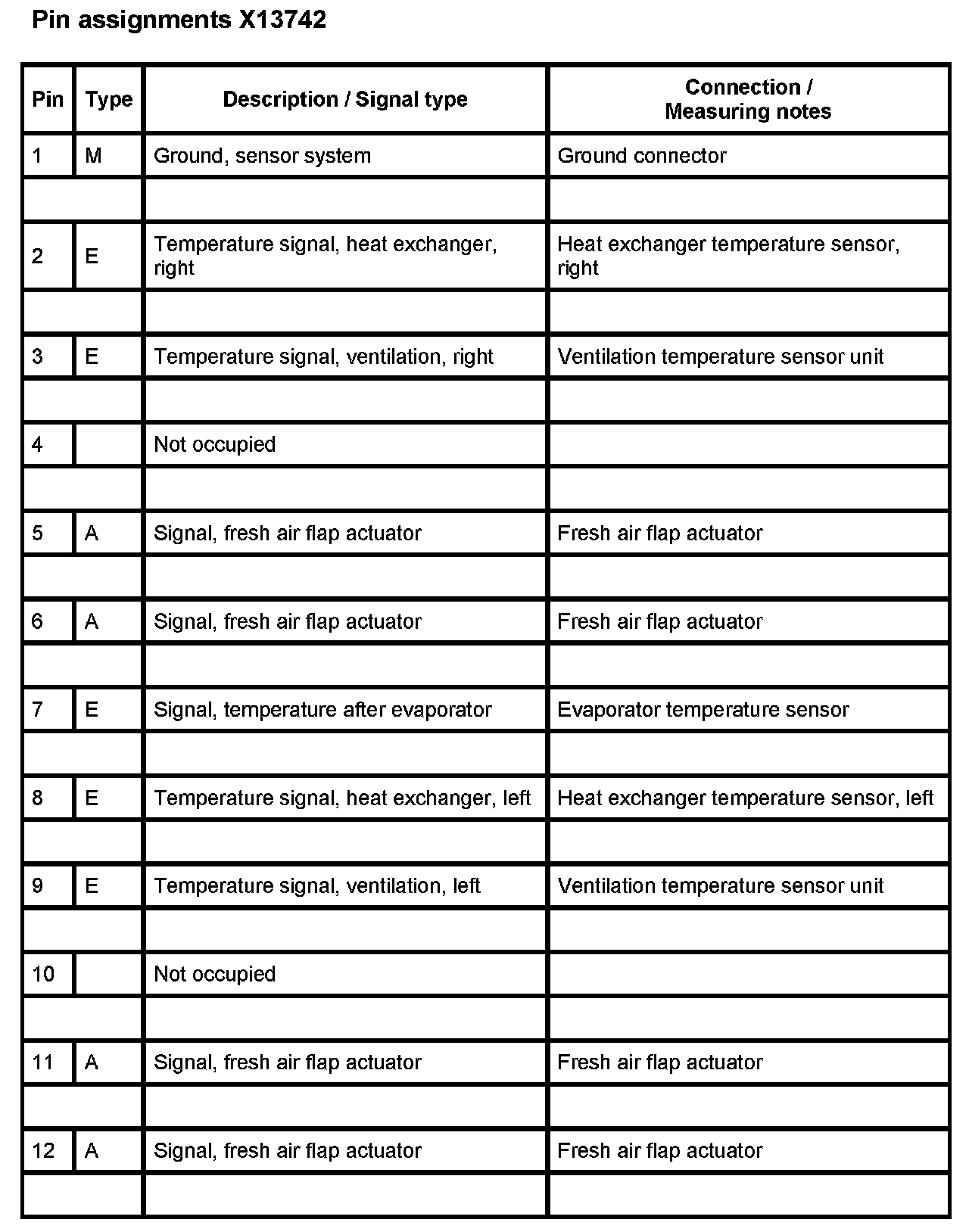

X13742:
