Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13533 Adapter 614464/-80, Storage Location C109/-11 >> A186 Passenger's Seat Module (With Lumbar Support As of 09/06)

A186 Passenger's Seat Module (With Lumbar Support As of 09/06)

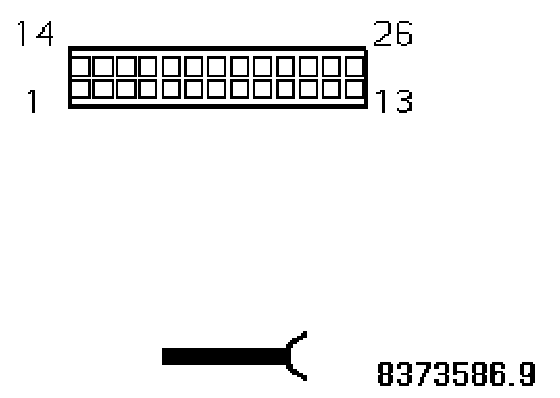

X13533:

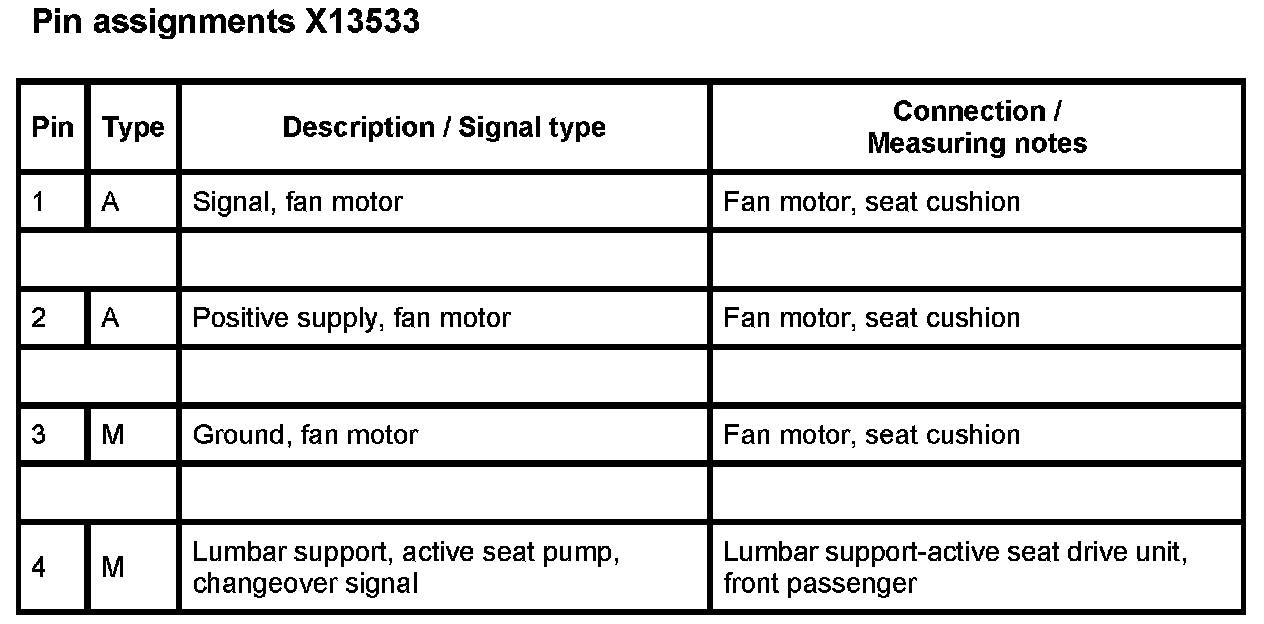

X13533 - Part 1:

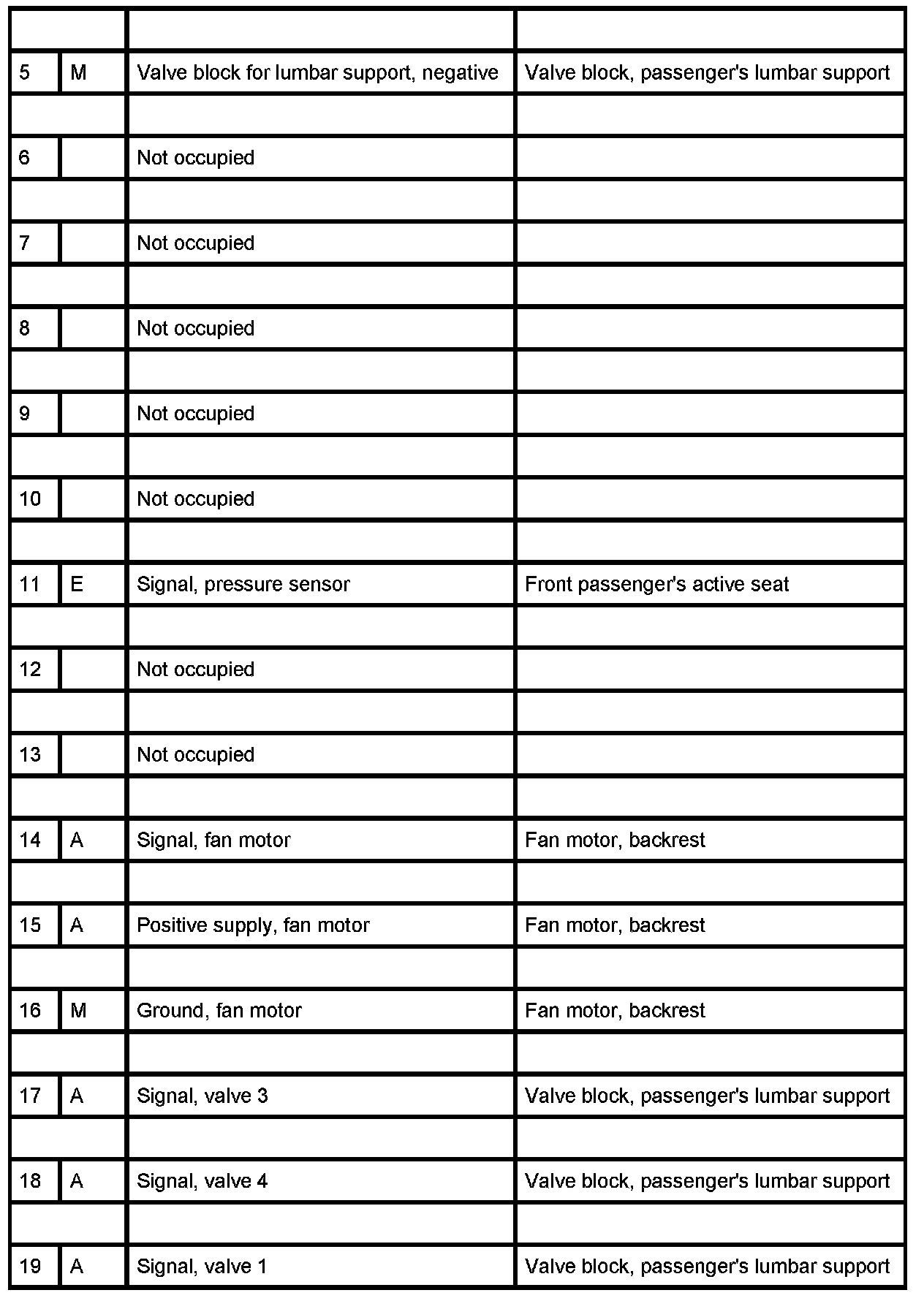

X13533 - Part 2:

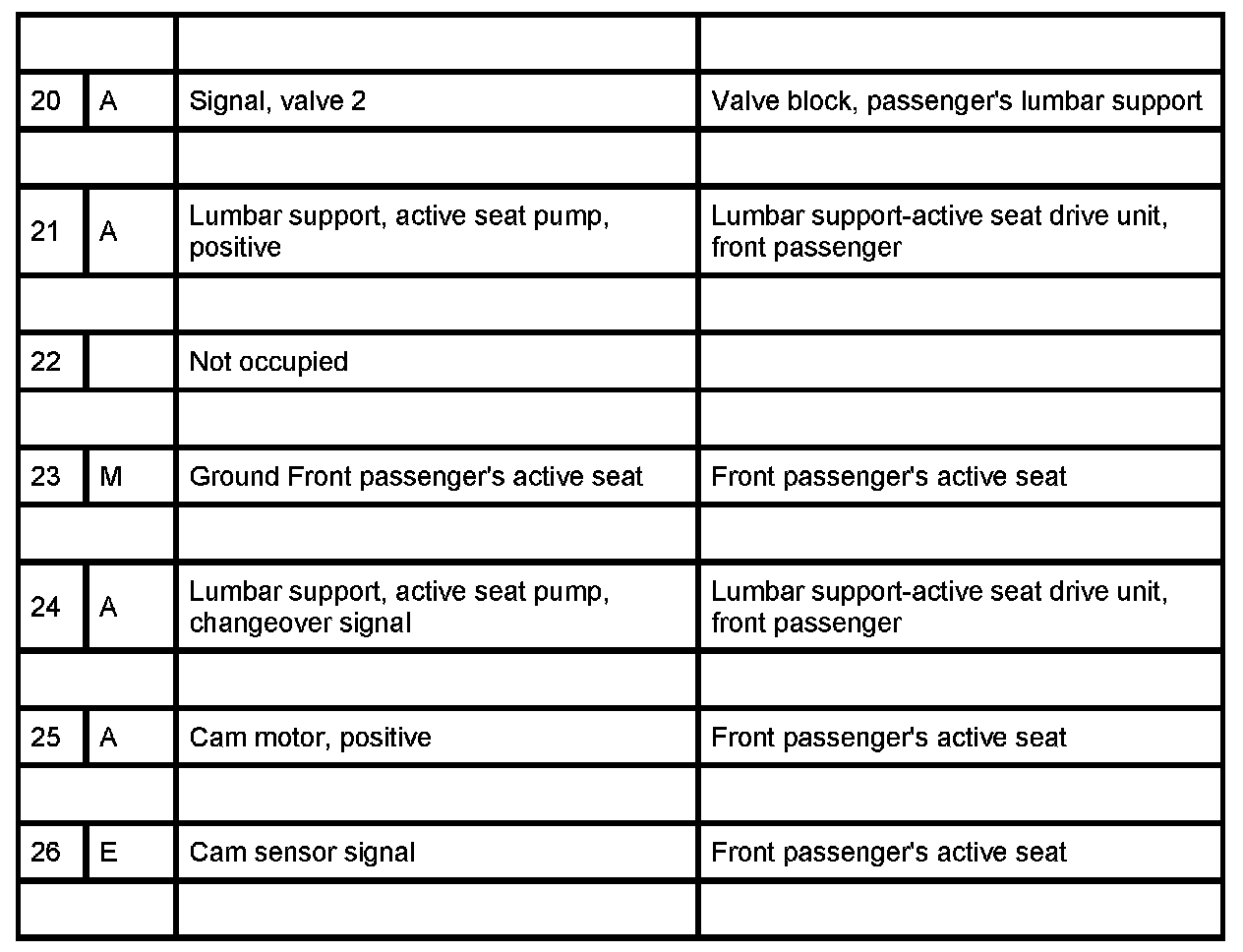

X13533 - Part 3:
