Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13483 Adapter 612170, Storage Location P207

X13483 Adapter 612170, Storage Location P207

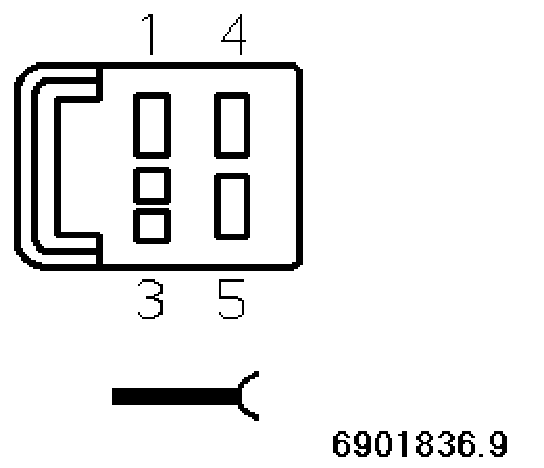

X13483:

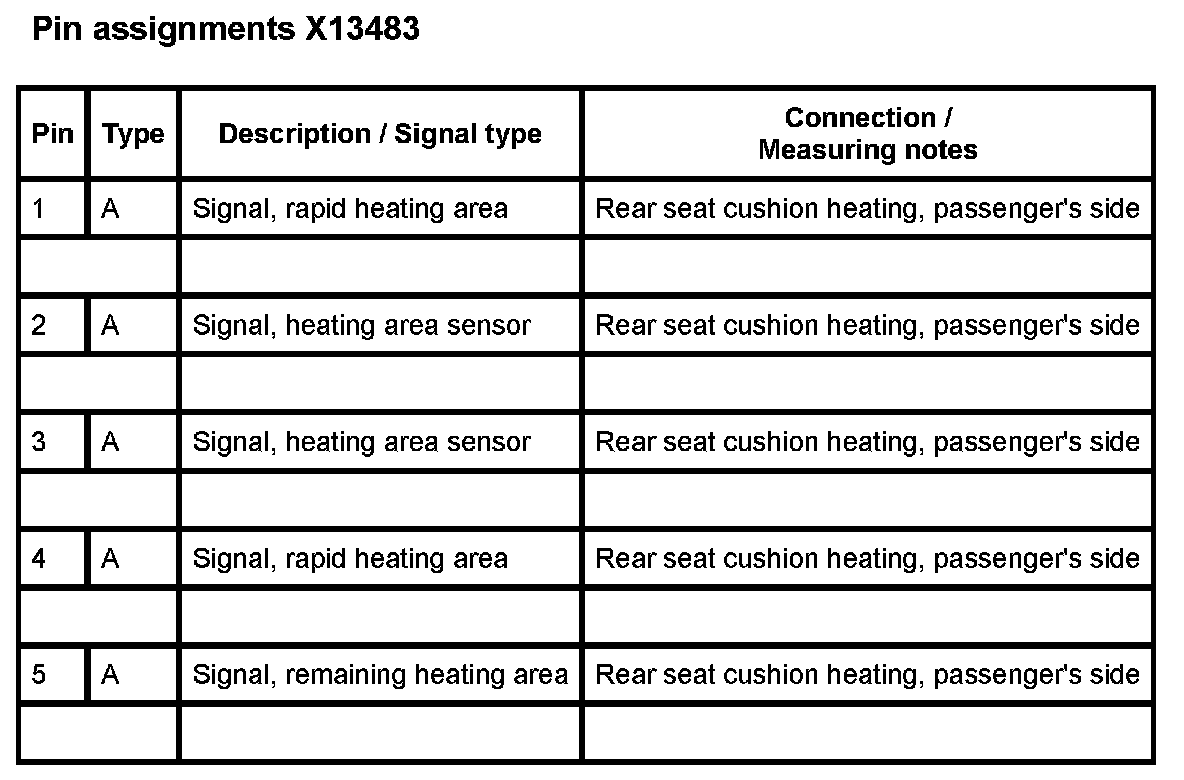

X13483:
