Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X10668 Adapter 614480, Storage Location C111 >> A24 Passenger's Door Module (As of 09/02 Without CA Comfort Access Without Soft Close)

A24 Passenger's Door Module (As of 09/02 Without CA Comfort Access Without Soft Close)

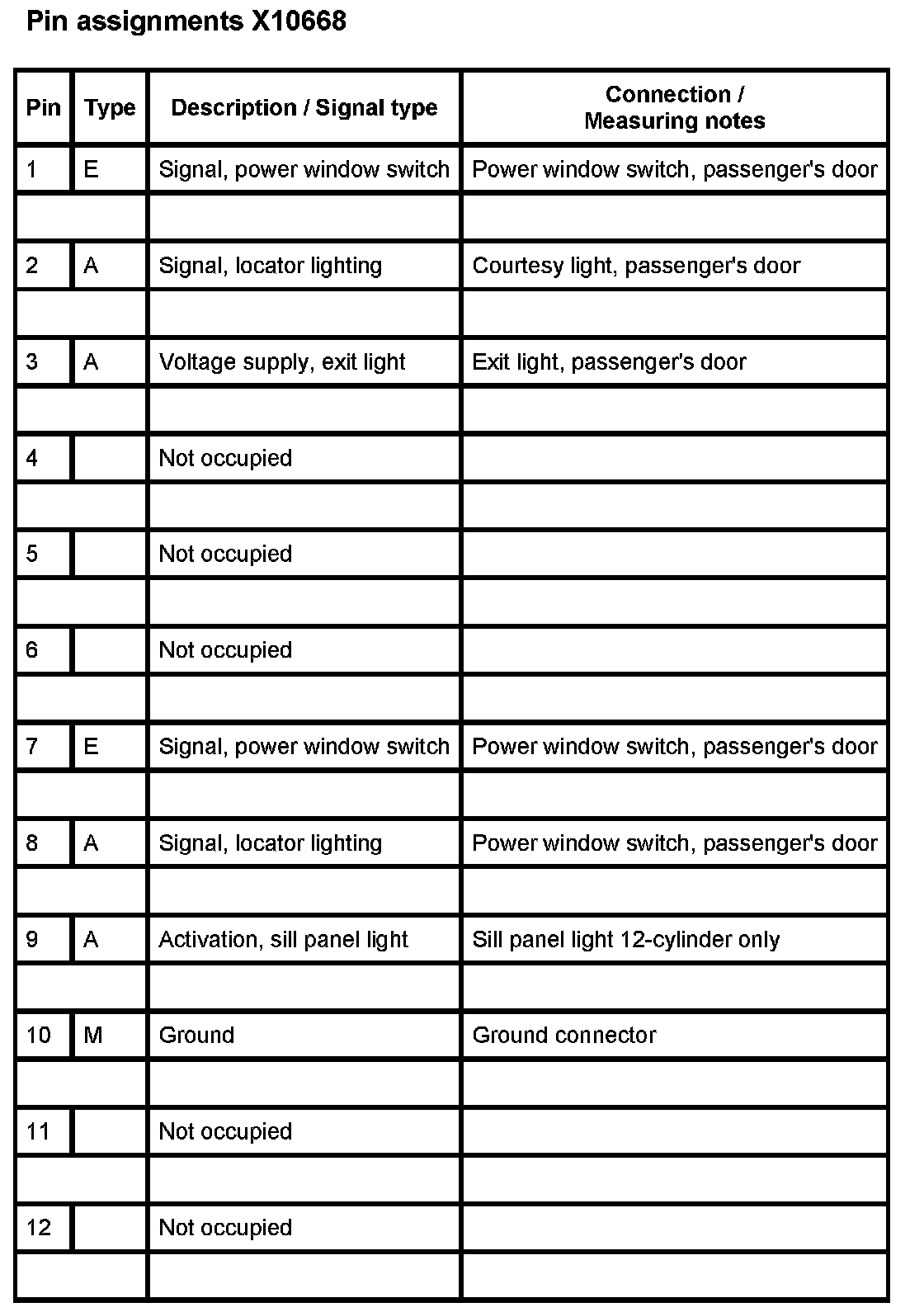

X10668:

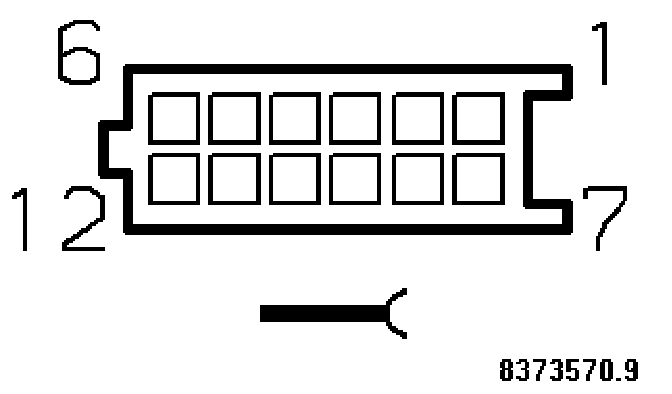

X10668:
