Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X10375 Adapter 613190, Storage Location F108

X10375 Adapter 613190, Storage Location F108

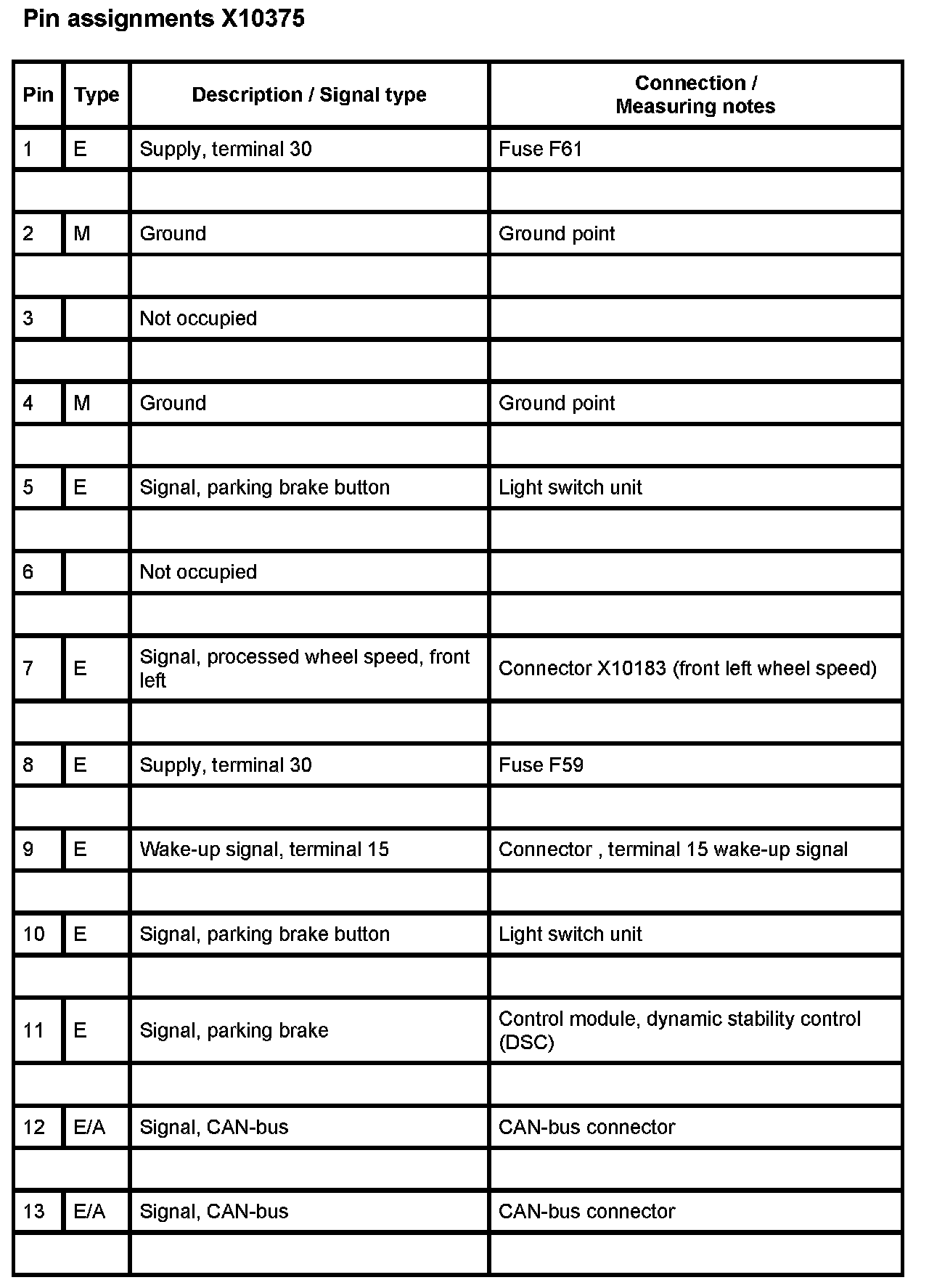

X10375:

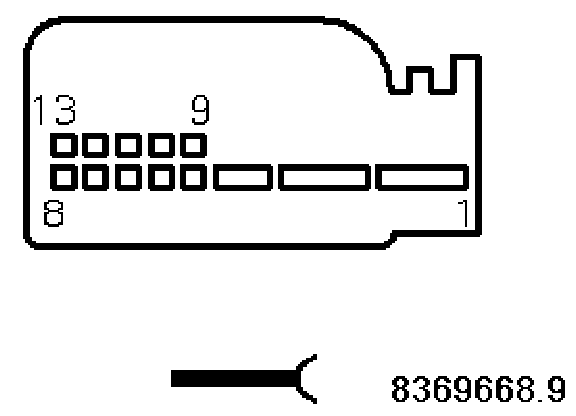

X10375:
