51 34 211 Replacing Rubber Guide For Rear Left or Right Door Window

51 34 211 - Replacing rubber guide for rear left or right door window





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Necessary preliminary tasks:
- Remove decorative strip on window frame of rear door

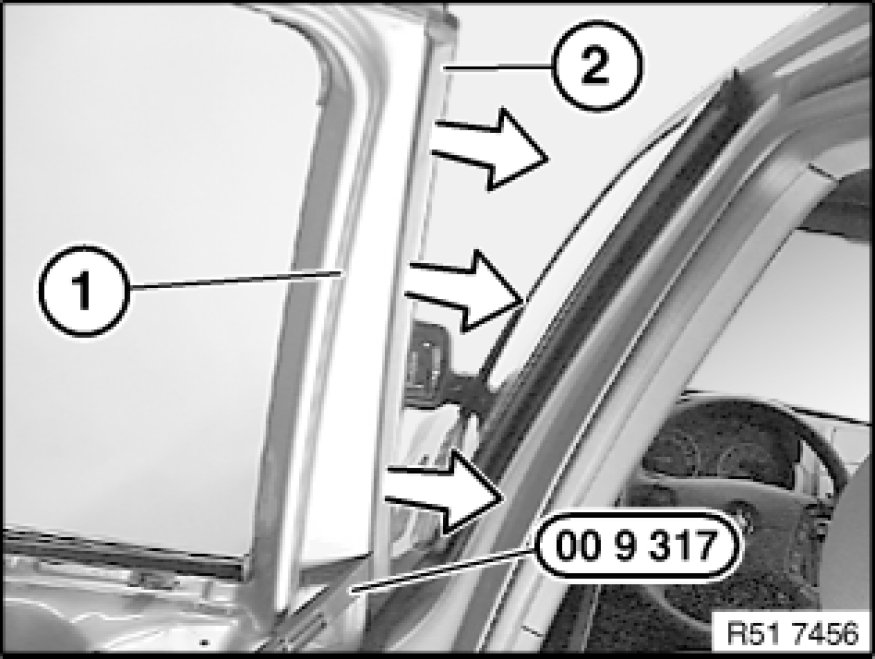

Lever out rubber guide (2) on door window frame (1) with special tool 00 9 317 00 9 317 Trim Panel Wedge.





Pull rubber guide (1) out of window guide at front and rear.

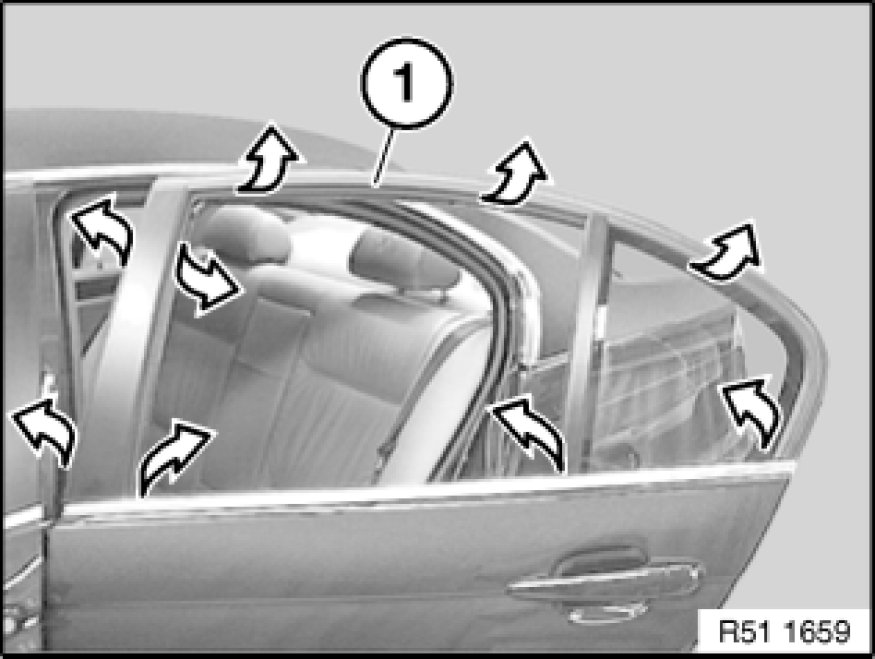

Pull rubber guide (1) off door window frame and remove.

Installation:
Prior to installation, coat rubber guide (1) with soapy solution (washing-up liquid).
Ensure rubber guide (1) is correctly seated in rubber guide.
