51 34 160 Removing and Installing/Replacing Cover on Door Window Frame (Rear Door) at Inside Left or Right

51 34 160 - Removing and installing/replacing cover on door window frame (rear door) at inside left or right





Necessary preliminary tasks:
- Remove rear door trim panel Removing and Installing Left or Right Rear Door Trim Panel
Version with roller sun blind only:
- Remove adapter for roller sun blind Removing and Installing/Replacing Adapter for Roller Sun Blind on Left or Right Rear Door

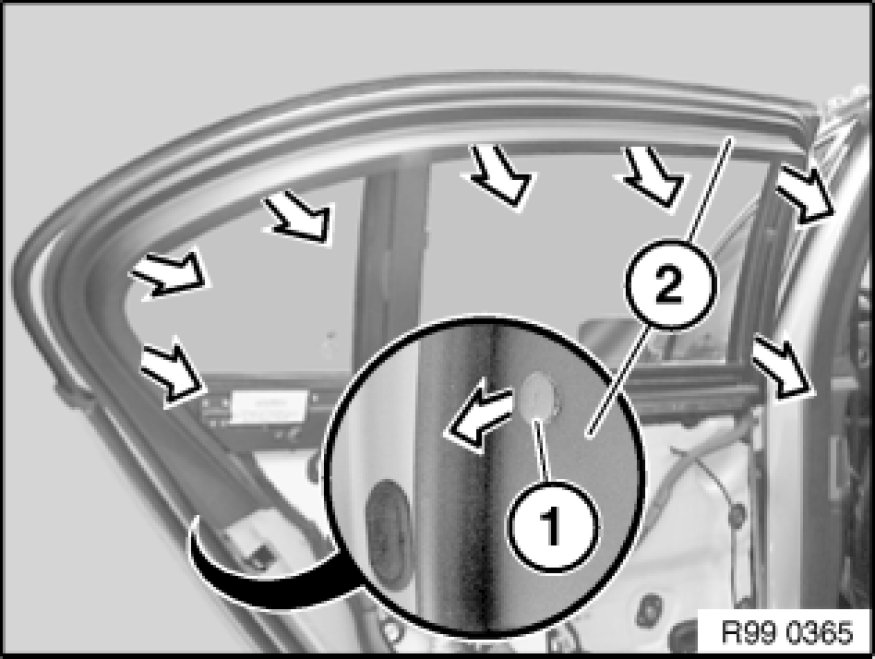

Remove rivet (1) from cover (2).
Detach cover (2) in direction of arrow from rear door.

Installation:
Make sure cover (2) is correctly seated on door seal.
