Replacing Window Cavity Seal in Inside Left or Right Rear Door (with Roller Sun Blind)

51 22 351 - Replacing window cavity seal in inside left or right rear door (with roller sun blind)





Necessary preliminary tasks:
- Remove chest strip Removing and Installing/Replacing Chest Strip (Chrome Strip) on Left or Right Rear Door (With Roller Sun Blind) on rear door
- Remove door trim panel Removing and Installing Left or Right Rear Door Trim Panel from rear door

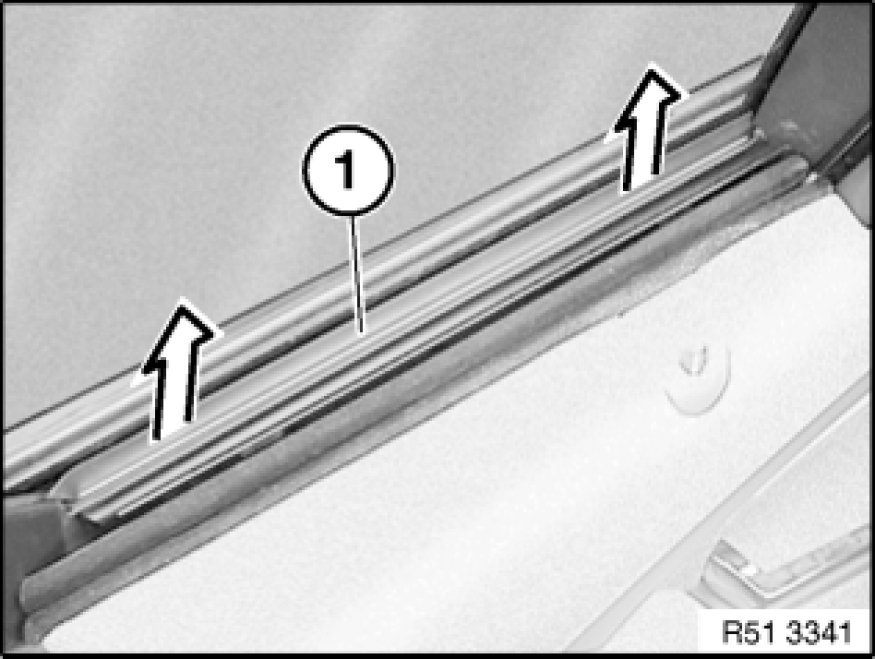

Front window cavity seal:
Pull off seal (1) in direction of arrow.

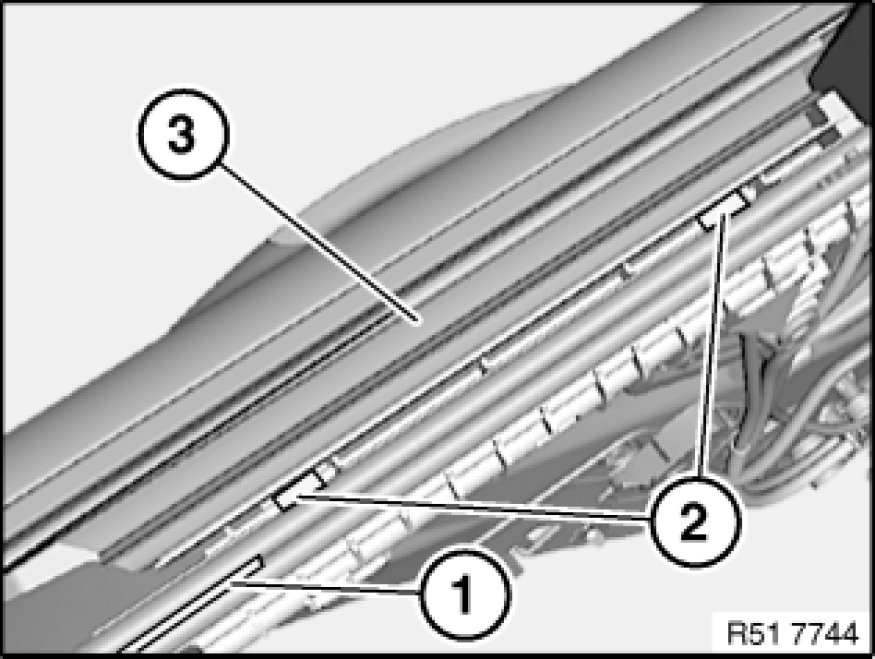

Rear window cavity seal:
Detach roller sun blind (1) from retainers (2).
Pull off rear seal (3) towards top.
