Removing and Installing/Replacing Cover (Seal) on Rear Door at Bottom Left or Right

51 22 370 - Removing and installing/replacing cover (seal) on rear door at bottom left or right

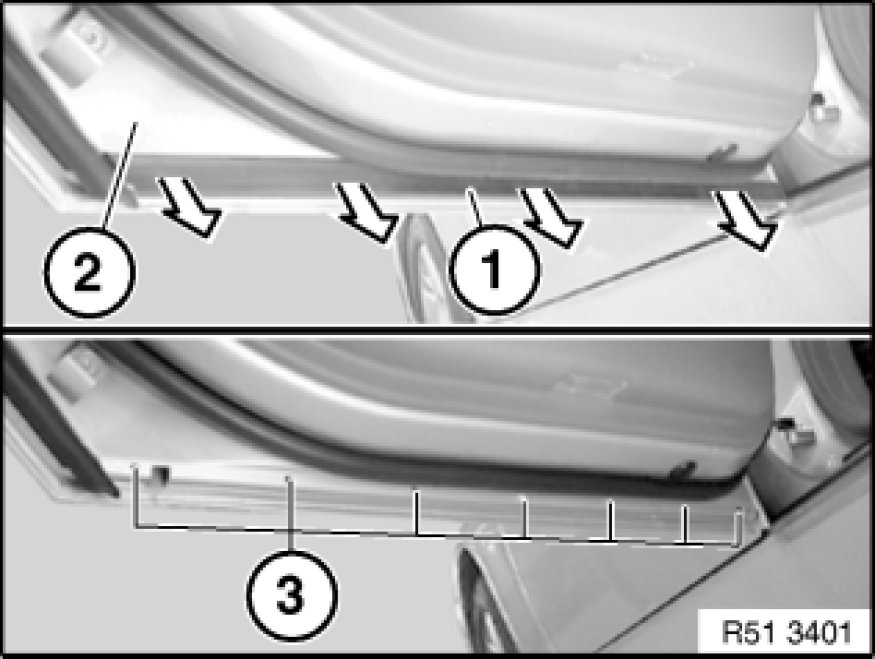

Detach cover (1) in direction of arrow from rear door (2).

Installation:
Clip clips of cover (1) correctly into bores (3).





Installation:

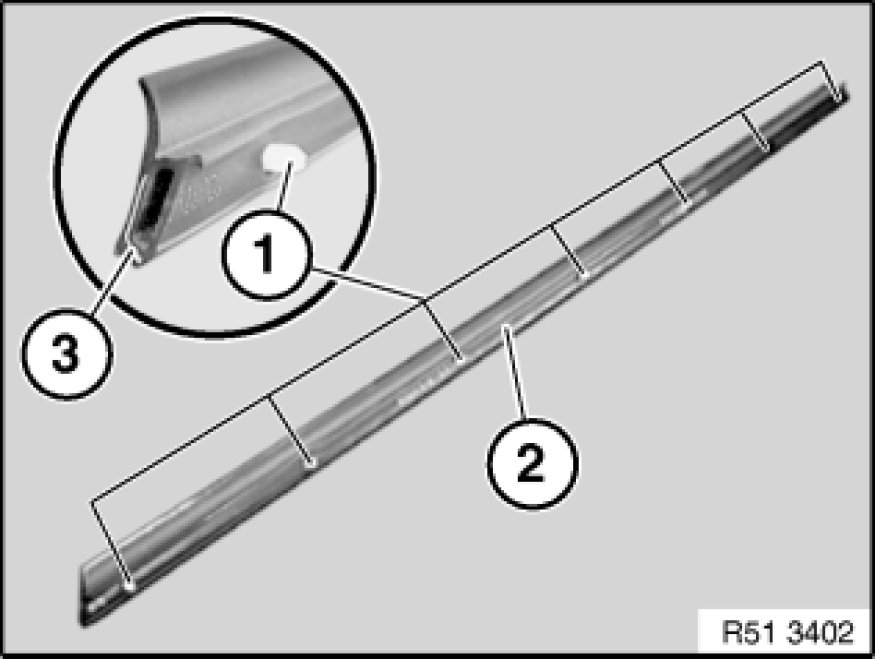

Clips (1) of cover (2) must not be damaged.
Cover (2) has an aluminum insert (3).
Only press on clips (1) when installing otherwise cover (2) will become uneven.
