Removing and Installing/Replacing Decorative Strip on Center Armrest at Rear Side Left or Right

52 25 075 - Removing and installing/replacing decorative strip on center armrest at rear side left or right





Necessary preliminary tasks:
- Remove rear switch combination Removing and Installing/Replacing Rear Left or Right Switch Combination (Seat Heating, Seat A/C for Comfort Seat in Rear).

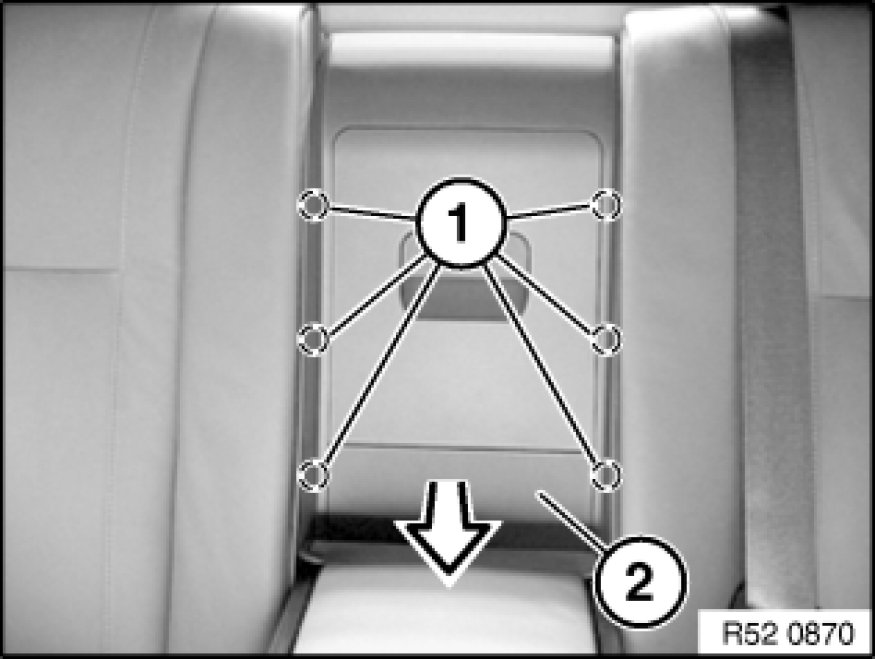

Lever out catches (1) and remove armrest trim (2) in direction of arrow.

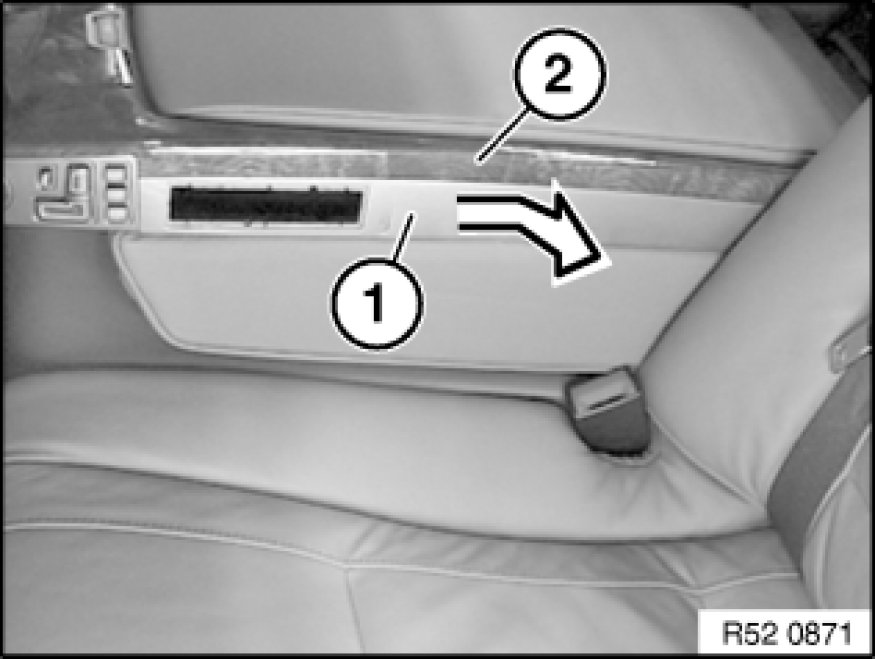

Slide back decorative trim on center armrest at rear side (1) and remove in direction of arrow from center armrest (2).

Installation:
Make sure all guides of decorative trim are correctly engaged on center armrest at rear side (1).
