51 46 050 Removing and Installing/Replacing Top Trim on Rear Apron

51 46 050 - Removing and installing / replacing trim for rear panel at top





Necessary preliminary tasks:
- Remove luggage compartment floor trim panel 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel

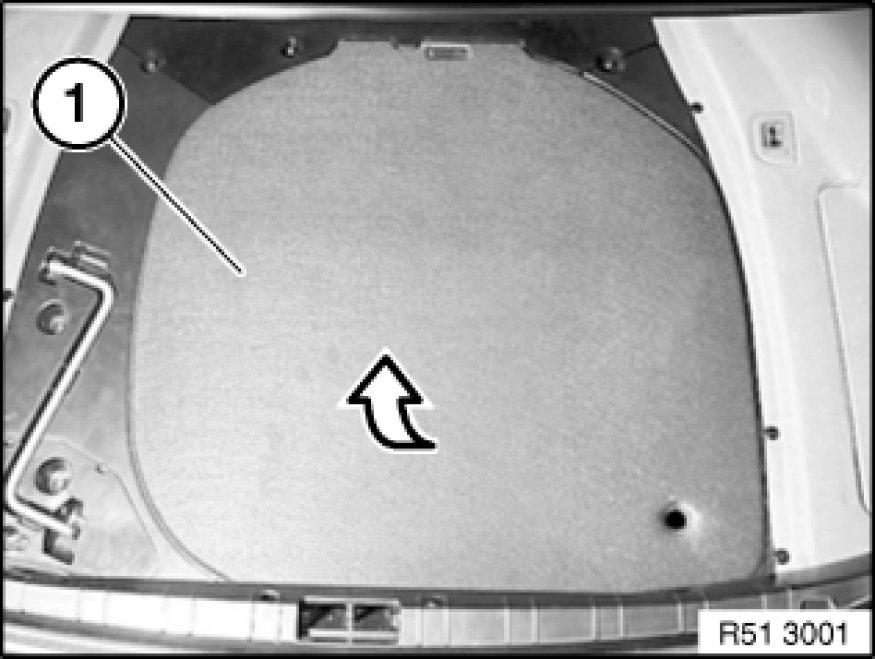

Remove cover (1) for spare wheel.

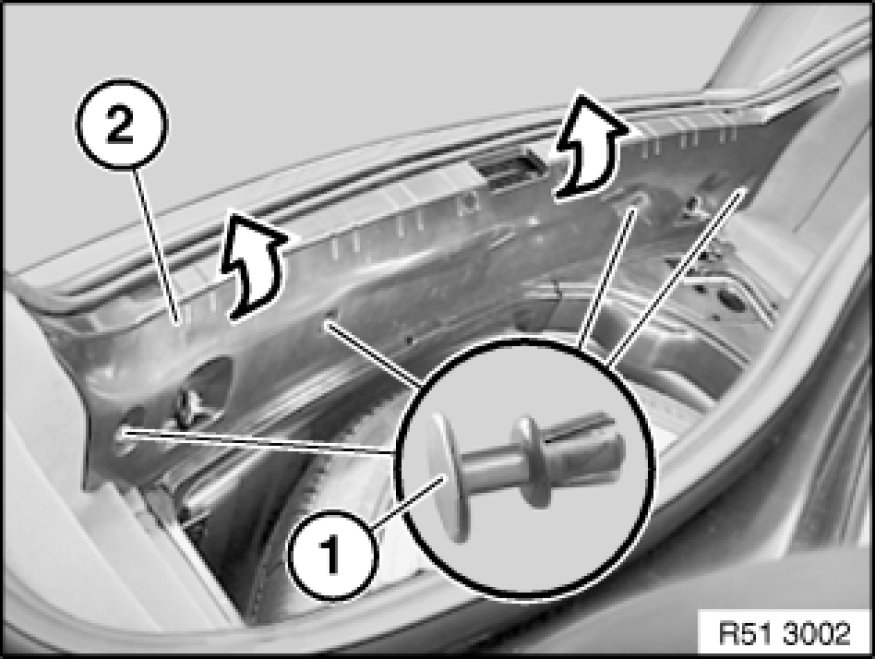

Release expansion rivets (1).
Lever out trim (2) for rear apron inwards/upwards.





Installation:

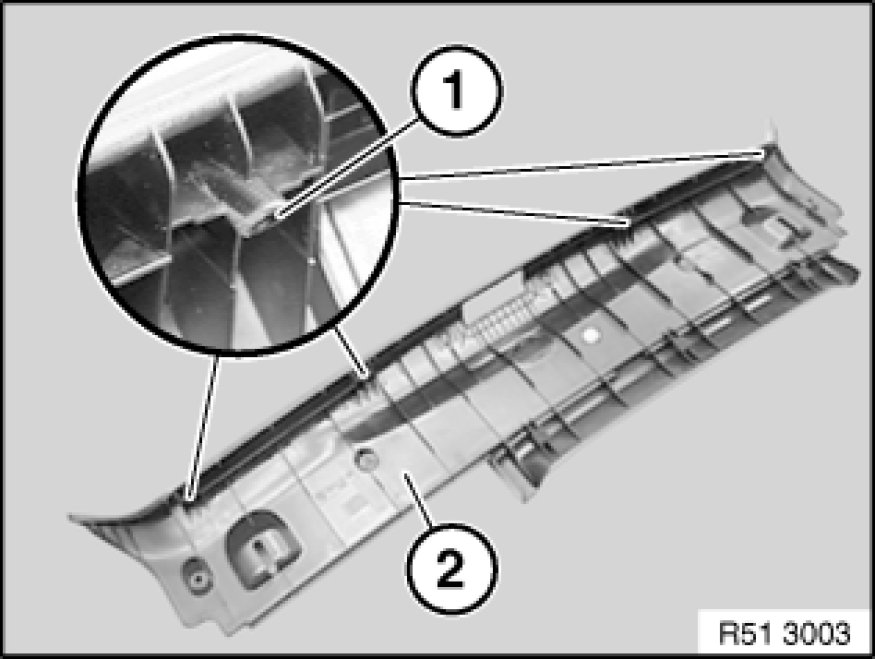

Guides (1) of trim (2) must not be damaged.





Replacement:
Lever out caps (1) from trim (2).
