51 16 345 - Removing and installing/replacing button and Bowden cable for glovebox




51 16 345 - Removing and installing/replacing button and Bowden cable for glovebox





Necessary preliminary tasks:
- Remove trim 51 45 263 Removing and Installing/Replacing Instrument Panel Trim on Right on instrument panel on right
Only when replacing Bowden cable for glovebox:
- Remove right glovebox

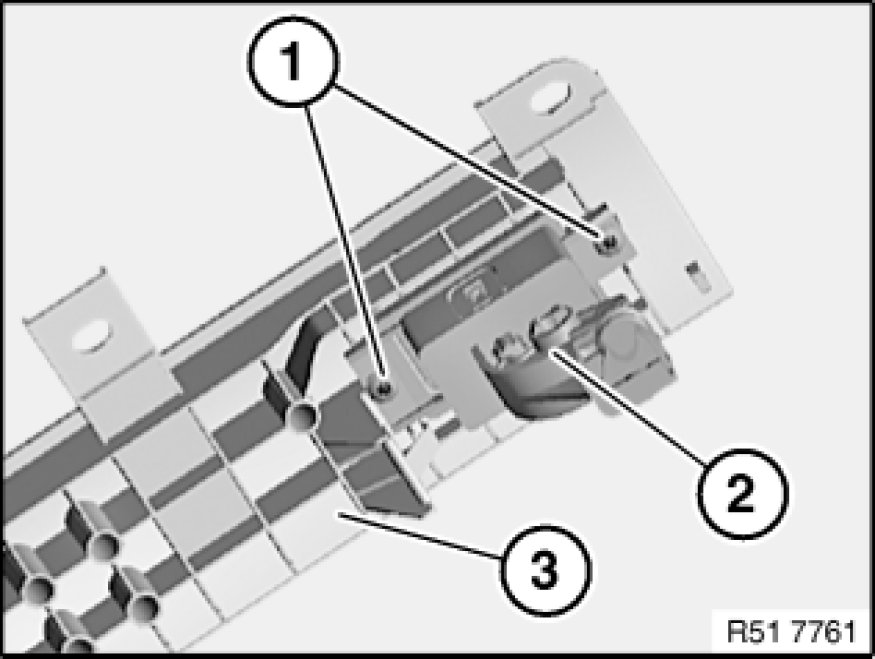

Release screws (1).
Remove button (2) from trim (3).
