51 16 181 Replacing Centre Console Carrier Section

51 16 181 - Replacing center console carrier section





Necessary preliminary tasks:
- Remove base for center console on storage tray 51 16 188 - Replacing base for center console on storage tray

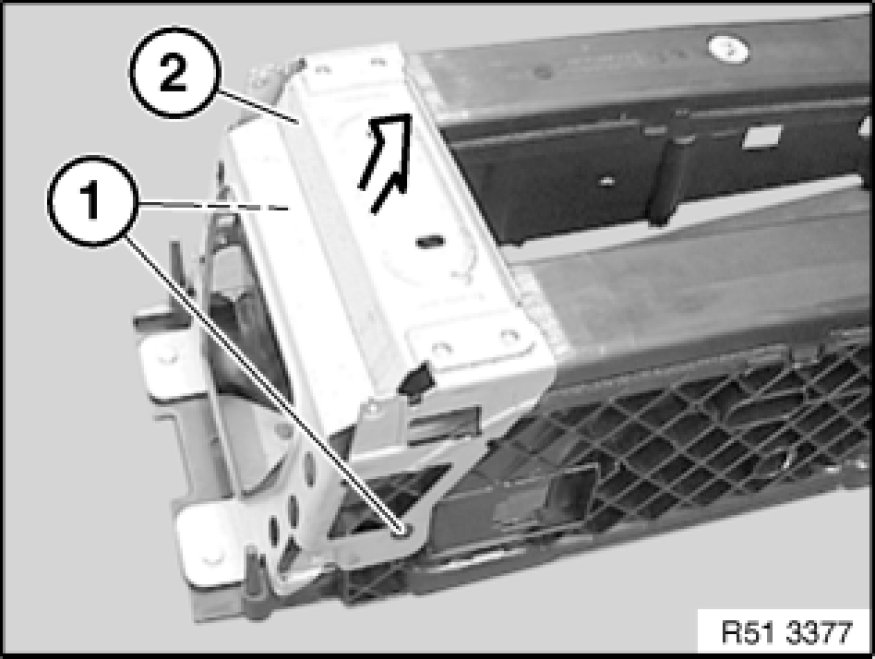

Release screws (1).
Remove carrier (2) in direction of arrow.
