51 14 110 Removing and installing/replacing rear model designation (from 03/05)

51 14 110 - Removing and installing/replacing rear model designation (from 03/05)





Important!
The "Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination" serve as the basis for these repair instructions and must be followed without fail.

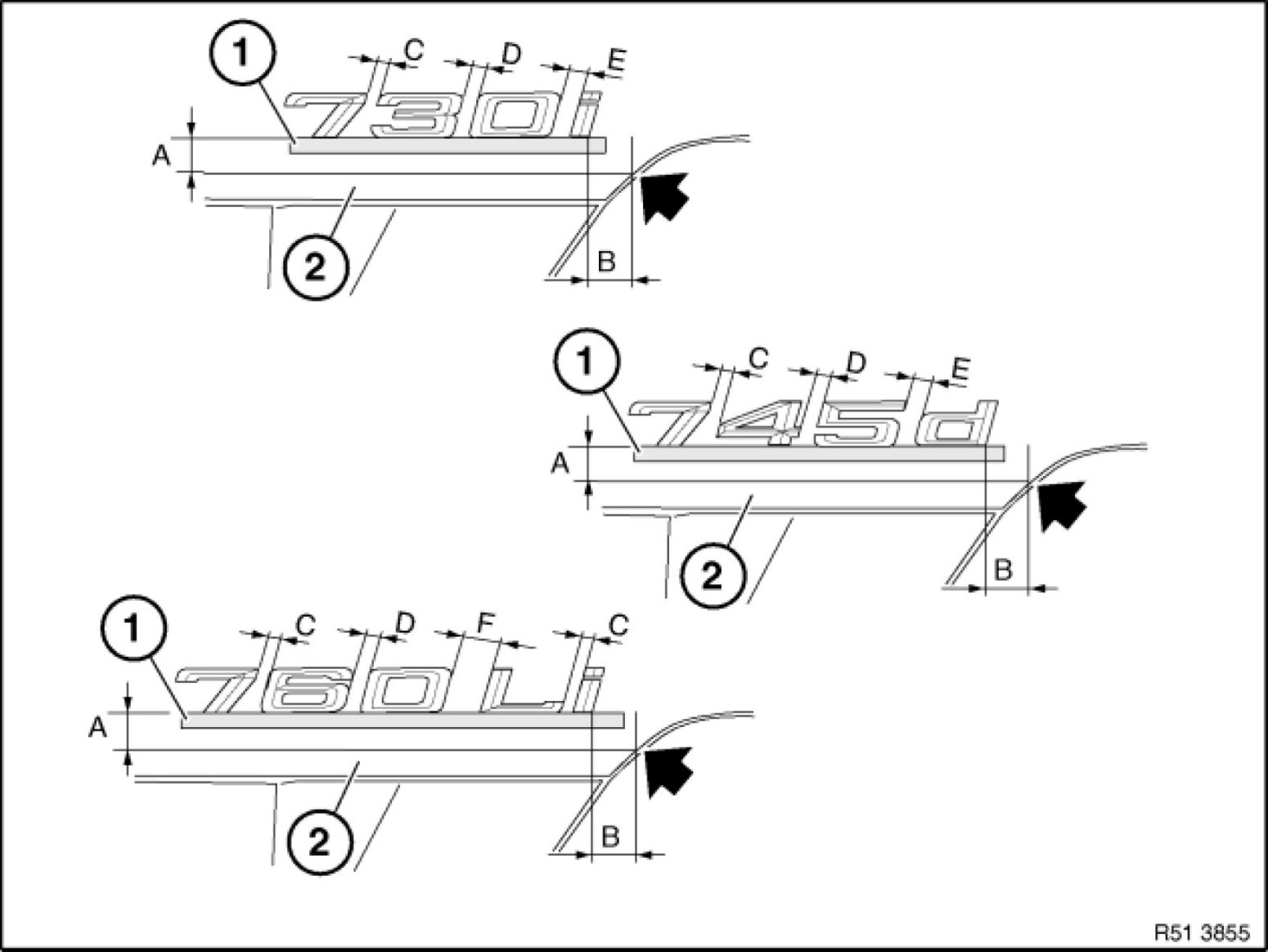

Fitting dimensions (E65, E66, E67):





Attach adhesive tape (1) to rear lid above trim strip (2) up to top edge "A". Mark measurement "B" from outermost corner point of trim strip (2) on adhesive tape (1).
Dimensions:

A = - 22 mm
B = - 25 mm

Note:
Measurements C, D, E and F are for information purposes only, as determined by carrier film.

C = 8 mm, D = 10 mm, E = 16 mm, F = 26 mm
