Removing and Installing/Replacing Cable for Hood/Bonnet Locks (to Locks)

51 23 215 - Removing and installing/replacing cable for hood/bonnet locks (to locks)





Necessary preliminary tasks:
- Disconnect Bowden cable at connection point Removing And Installing/replacing Cable For Front Engine Hood Locks (To Passenger Compartment)
- Release Bowden cables on hood/bonnet lock on left/right
N62 only:
- Remove design cover

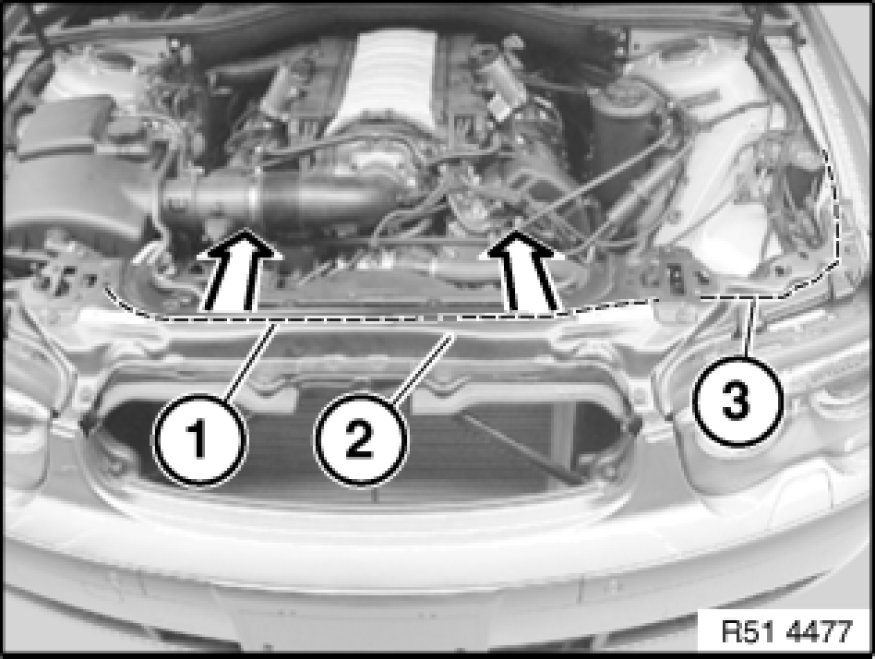

Feed connecting cable (1) out of cross-member (2) inwards.
Feed cable (3) out of cross-member (2) and side panel.
