51 12 825 - Removing and installing/replacing guide for rear center bumper

51 12 825 - Removing and installing/replacing guide for rear center bumper





Necessary preliminary tasks:
- Remove both brackets for bumper Service and Repair (on rear lights)

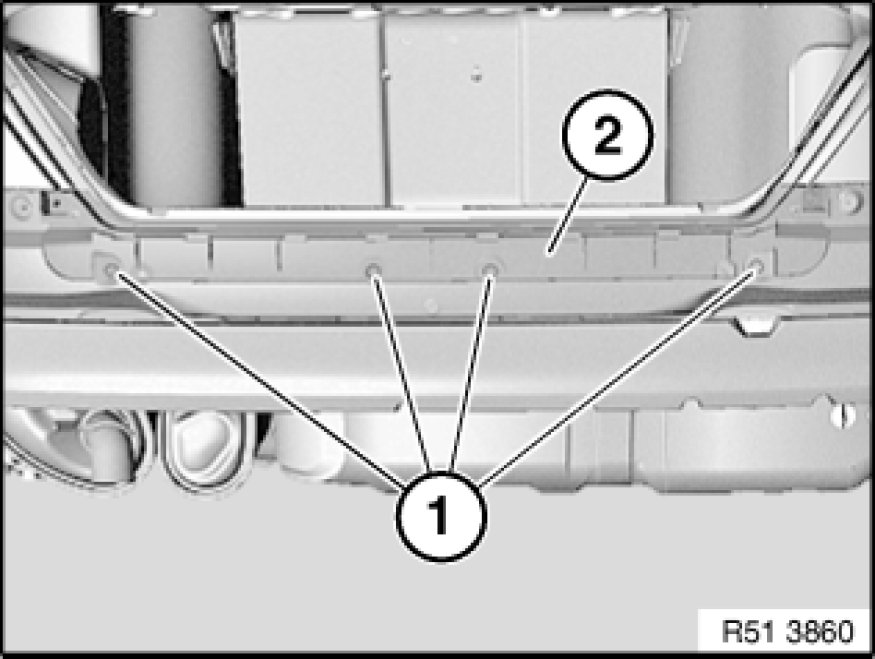

Release nuts (1) and remove guide (2).

Note:
With build date up to 03/05 nuts (1) are already released. Guide (2) can be removed.
