Removing and Installing/Replacing Amplifier

65 12 070 - Removing and installing/replacing amplifier





Necessary preliminary tasks:
- Disconnect battery negative lead Instructions for Disconnecting and Connecting Battery
- Remove luggage compartment wheel arch trim on left .

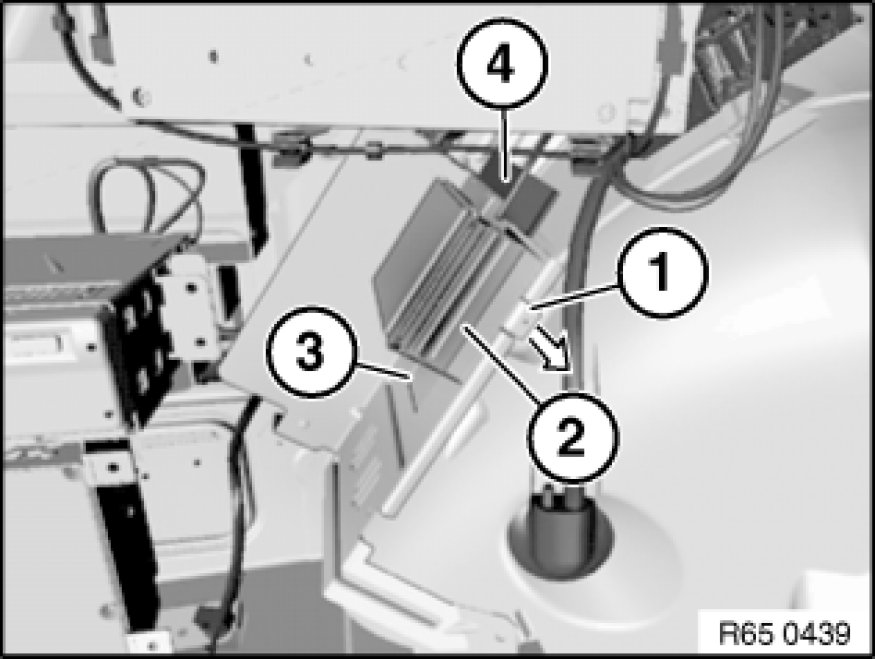

Pull out retaining plate (1) in direction of arrow.

Installation:
Make retaining plate (1) is correctly seated.

Remove amplifier (2) from holder (3).

Unfasten plug connection (4) and disconnect.
