Replacing Knob for Controller

61 31 192 - Replacing knob for controller





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge
- 00 9 323 00 9 323 Cleaning Wedge (Scraper)

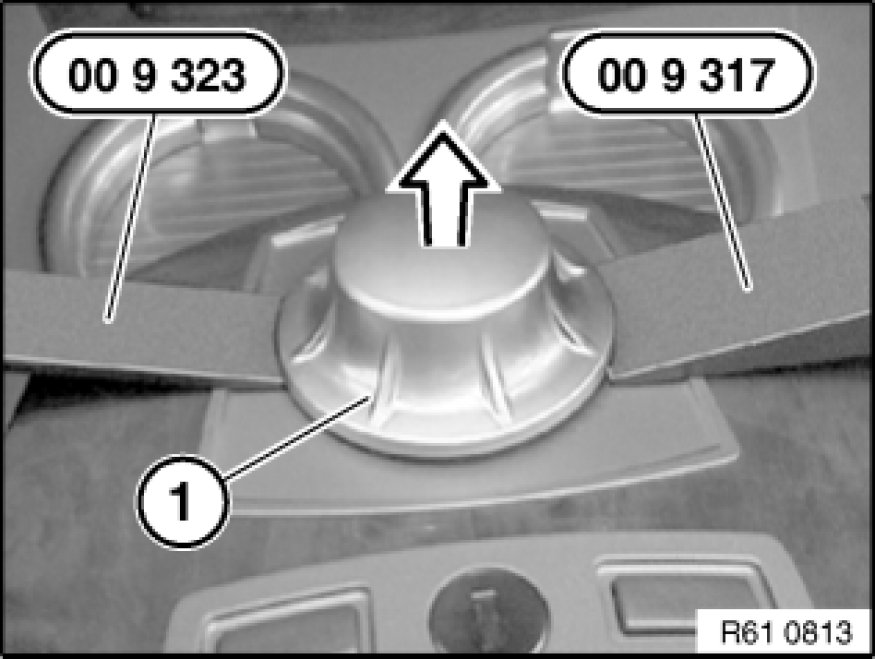

Attach special tools 00 9 323 00 9 323 Cleaning Wedge (Scraper) and 00 9 317 00 9 317 Trim Panel Wedge as illustrated.

Lever out knob for controller (1) on both sides in direction of arrow and detach.





Installation:

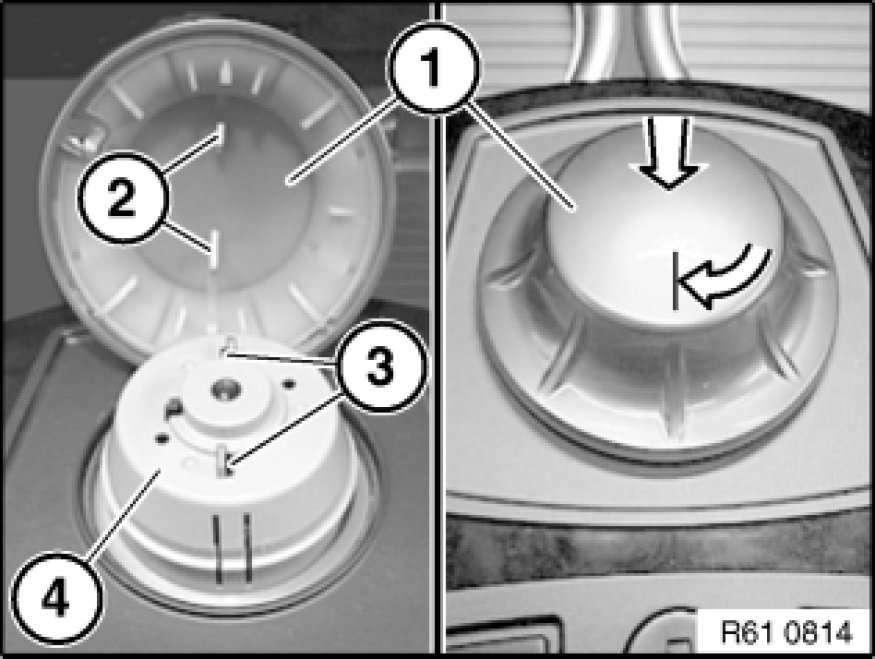

Positioners (2) of knob for controller (1) must engage in openings (3) of controller (4).

For this purpose, fit knob for controller (1), turn in direction of arrow until positioners (2) engage stop.

If necessary, turn on ignition to prevent controller (4) from turning as well.

Press knob for controller (1) in middle until it engages.
