Removing and Installing/Replacing Rear Window Antenna Amplifier

65 20 220 - Removing and installing/replacing rear window antenna amplifier





Necessary preliminary tasks:
- Remove blocking circuit Removing and Installing/Replacing Blocking Circuit.





Note:

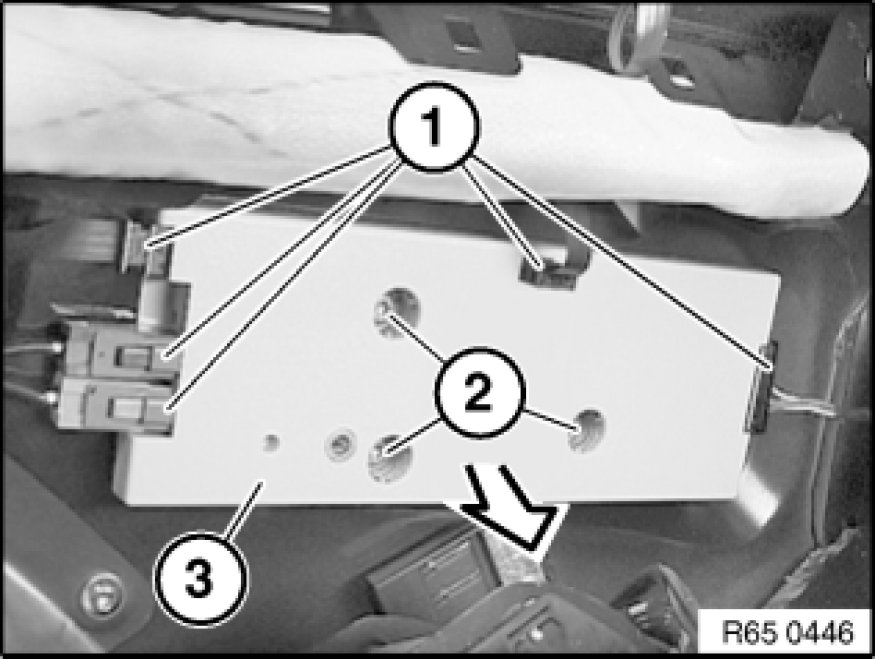

For purposes of clarity, the illustration shows the panel for the rear parcel shelf removed.

Disconnect plug connections (1).

Release screws (2) and remove rear window antenna amplifier (3) in direction of arrow.
