Removing and Installing/Replacing Antenna Amplifier (Diversity)

65 25 050 - Removing and installing/replacing antenna amplifier (diversity)





Necessary preliminary tasks:
- Remove antenna tuner Removing and Installing/Replacing Antenna Tuner
Version with standard seat in rear compartment:

- Remove backrest for left rear seat Removing and Installing/Replacing Backrest.
Version with comfort seat in rear compartment:

- Remove supplementary trim on C-pillar at bottom left Removing and Installing/Replacing Supplementary Trim on C-Pillar at Bottom (With Electric Rear Seat Adjustment) Left or Right.
All models:

- Release trim on C-pillar at bottom left Removing and Installing/Replacing Trim on C-Pillar at Bottom Left or Right.





Note:

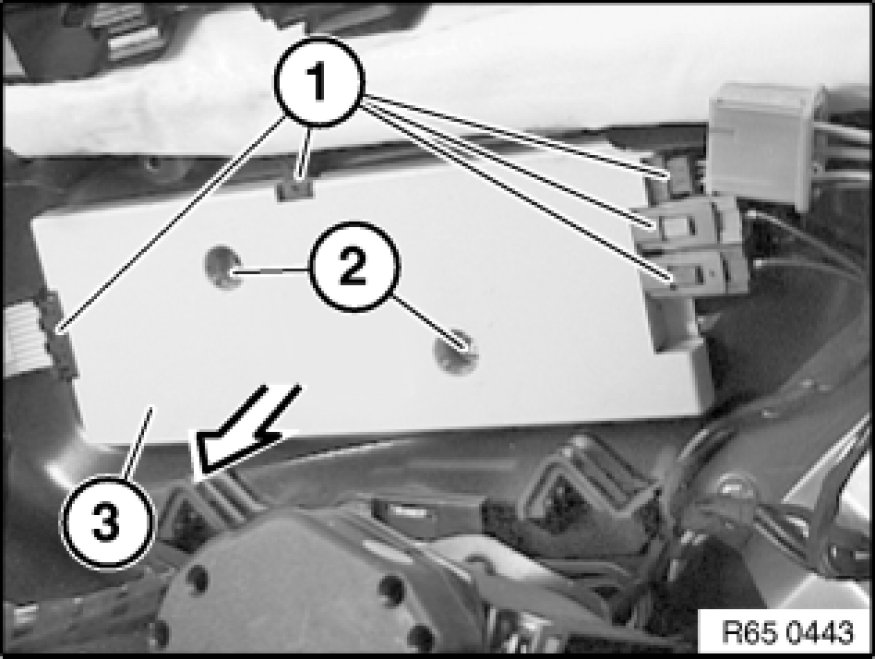

For purposes of clarity, the illustration shows the panel for the rear parcel shelf removed.

Disconnect plug connections (1).

Release screws (2) and remove antenna amplifier (3) in direction of arrow.
