61 31 261 - Removing and installing/replacing gear selection switch

61 31 261 - Removing and installing/replacing gear selection switch





Necessary preliminary tasks:
- Remove front section of steering column cover Removing and Installing/Replacing Front Section of Steering Column Cover.

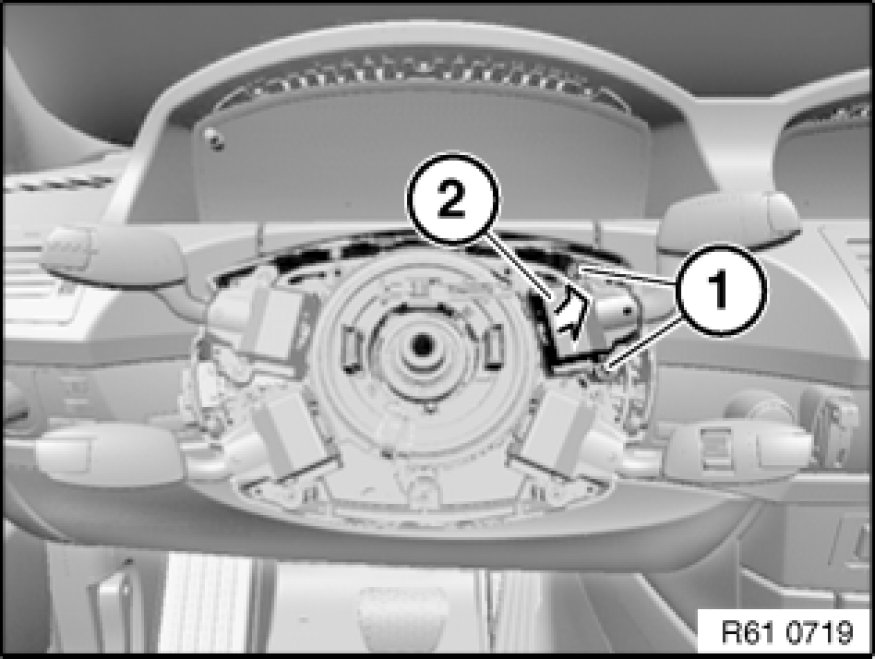

Release screws (1).
Remove gear selection switch (2) in direction of arrow.





Installation:
Seat gear selector switch (2) with integrated pin housing (1) exactly in fixture for steering column control.
