Replacing Left Lamp For Left Xenon Light

63 99 076 - Replacing left lamp for left xenon light





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).





Necessary preliminary tasks:
- Remove ignition unit for left xenon headlight .

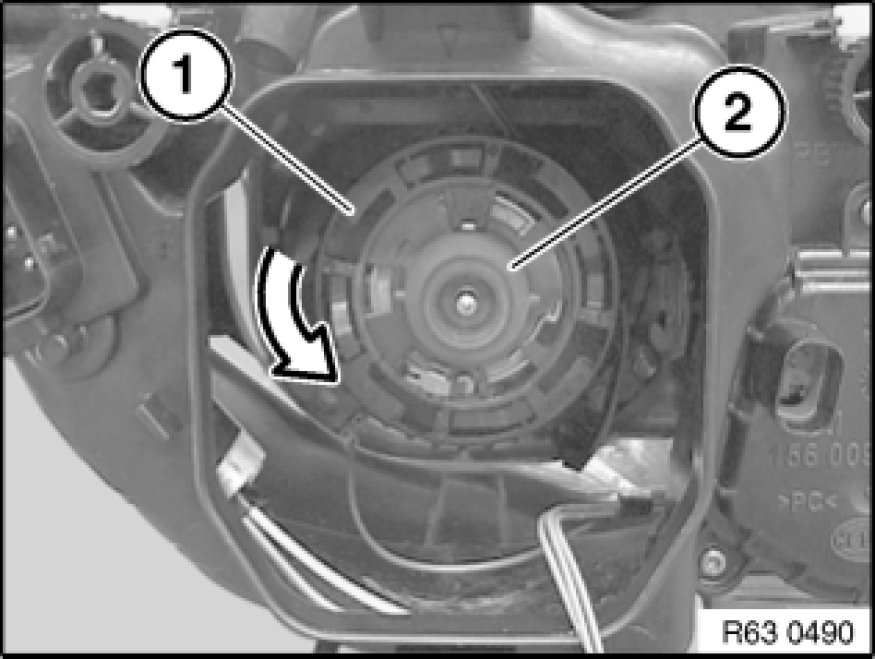

Turn retaining ring of lamp for xenon light (1) in direction of arrow and remove.
Remove lamp for xenon light (2).

Installation Note:
Note type of bulb.





Installation Note:

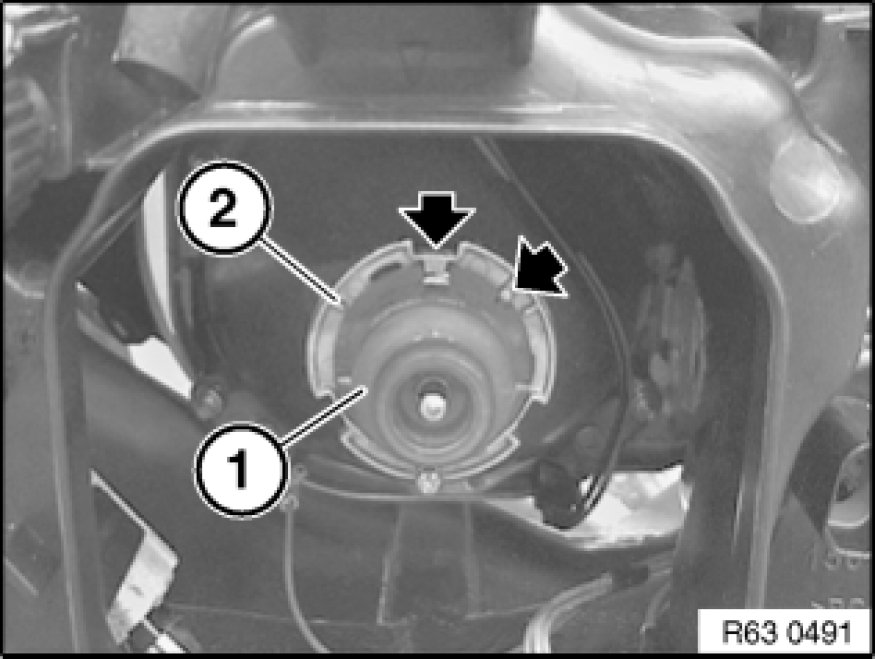

Insert lamp for xenon light (1) exactly in fixture (2).
