Replacing Evaporator Temperature Sensor (High automatic A/C)

64 11 943 - Replacing evaporator temperature sensor (High automatic A/C)

Remove and install panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.

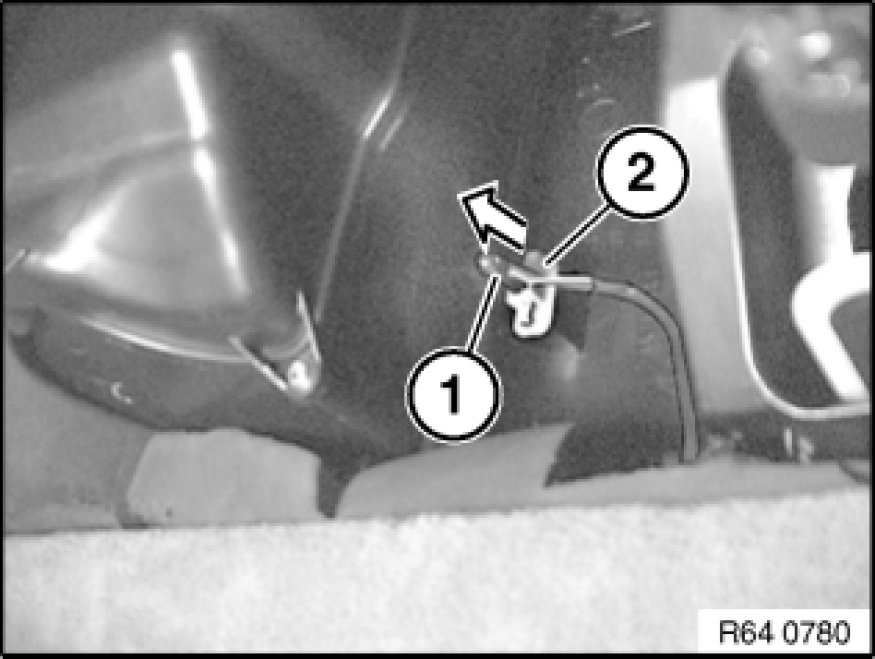

Press sound insulation for A/C unit at rear left downwards slightly.





Disconnect plug connection (1).
Pull out evaporator temperature sensor (2) in direction of arrow.





Installation:

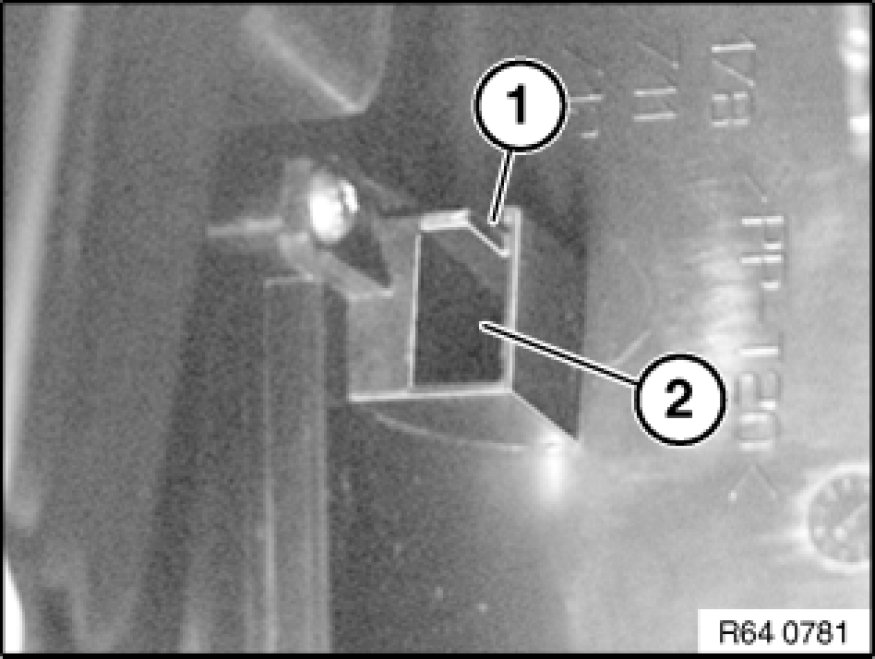

When installing evaporator temperature sensor, pay attention to guide (1) in mount (2).
