Removing and Installing/Replacing Rear Muffler

18 12 030 - Removing and installing/replacing rear muffler (N62)





Special tools required:
- 00 2 210 00 2 210 Exhaust Pipe Cutter
- 31 2 220 31 2 220 Support Plate





Warning!
Scalding hazard!

Only perform these tasks on an engine that has cooled down.





Support final muffler with special tool 31 2 220 31 2 220 Support Plate.

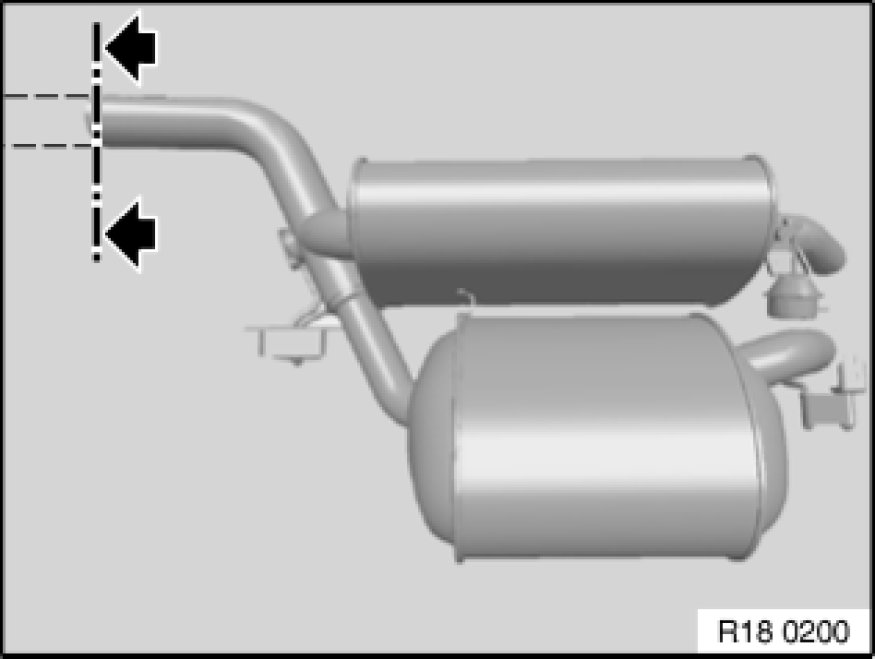

While installed, mark cutting line (arrows) with aid of replacement muffler on faulty rear muffler.





Cut exhaust pipes with special tool 00 2 210 00 2 210 Exhaust Pipe Cutter at marked points and deburr.





Unscrew nuts.

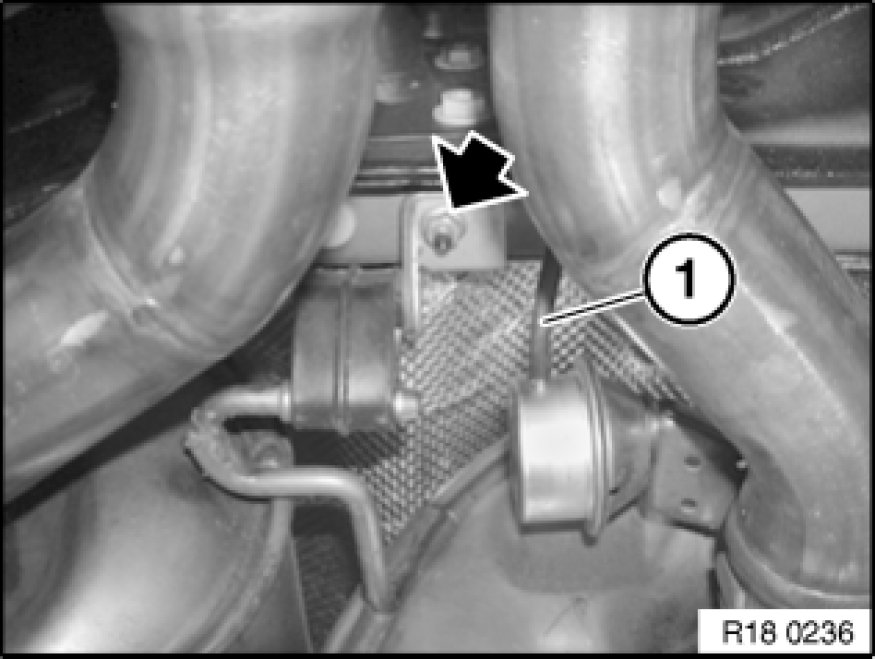

Detach hose (1) of vacuum unit.

Release nut and final muffler.

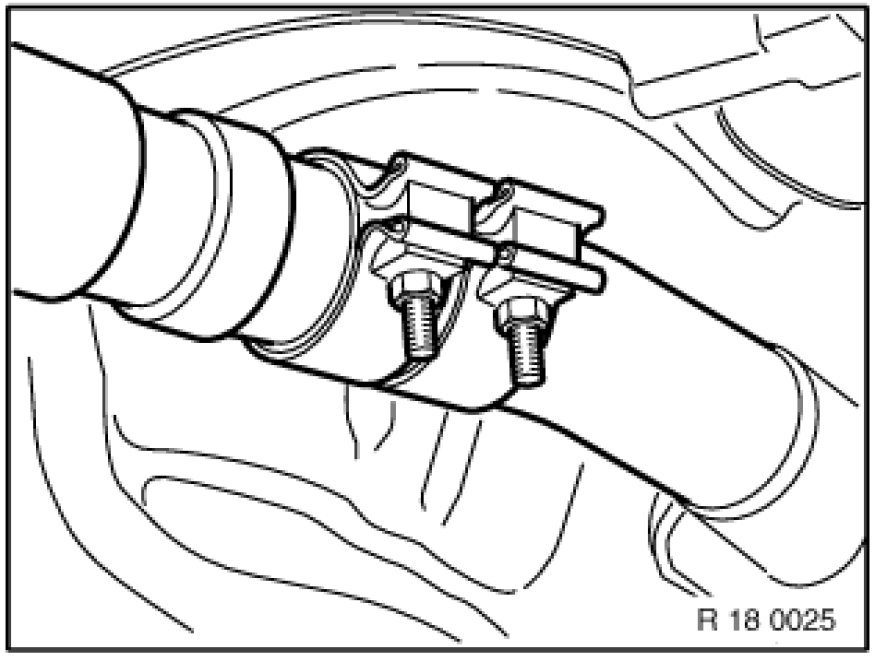

Connect final muffler to center muffler.

Align clamp and tighten down.
