VANOS Solenoid Valves, Intake

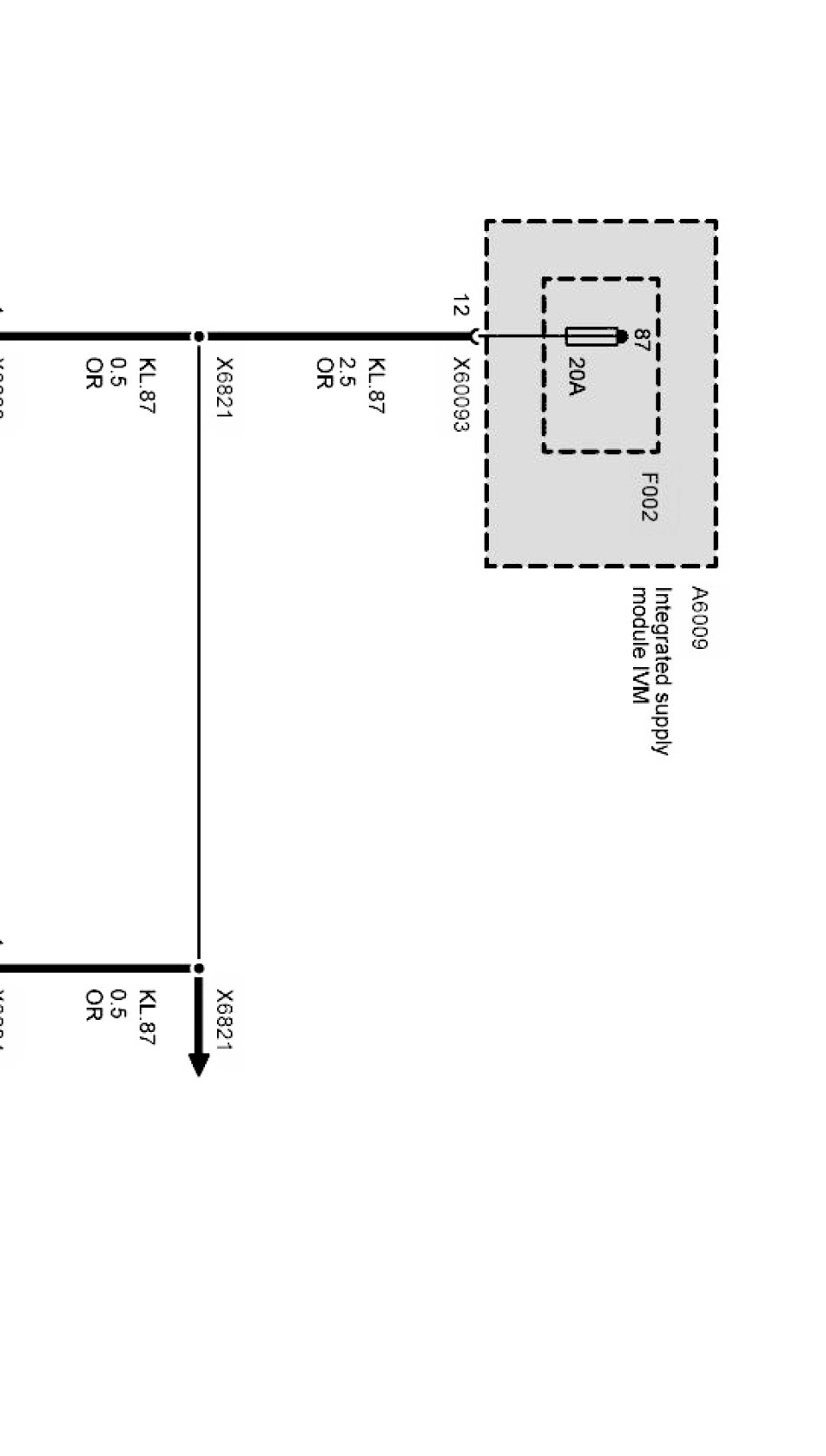

VANOS solenoid valves 1 and 2 Part 1:

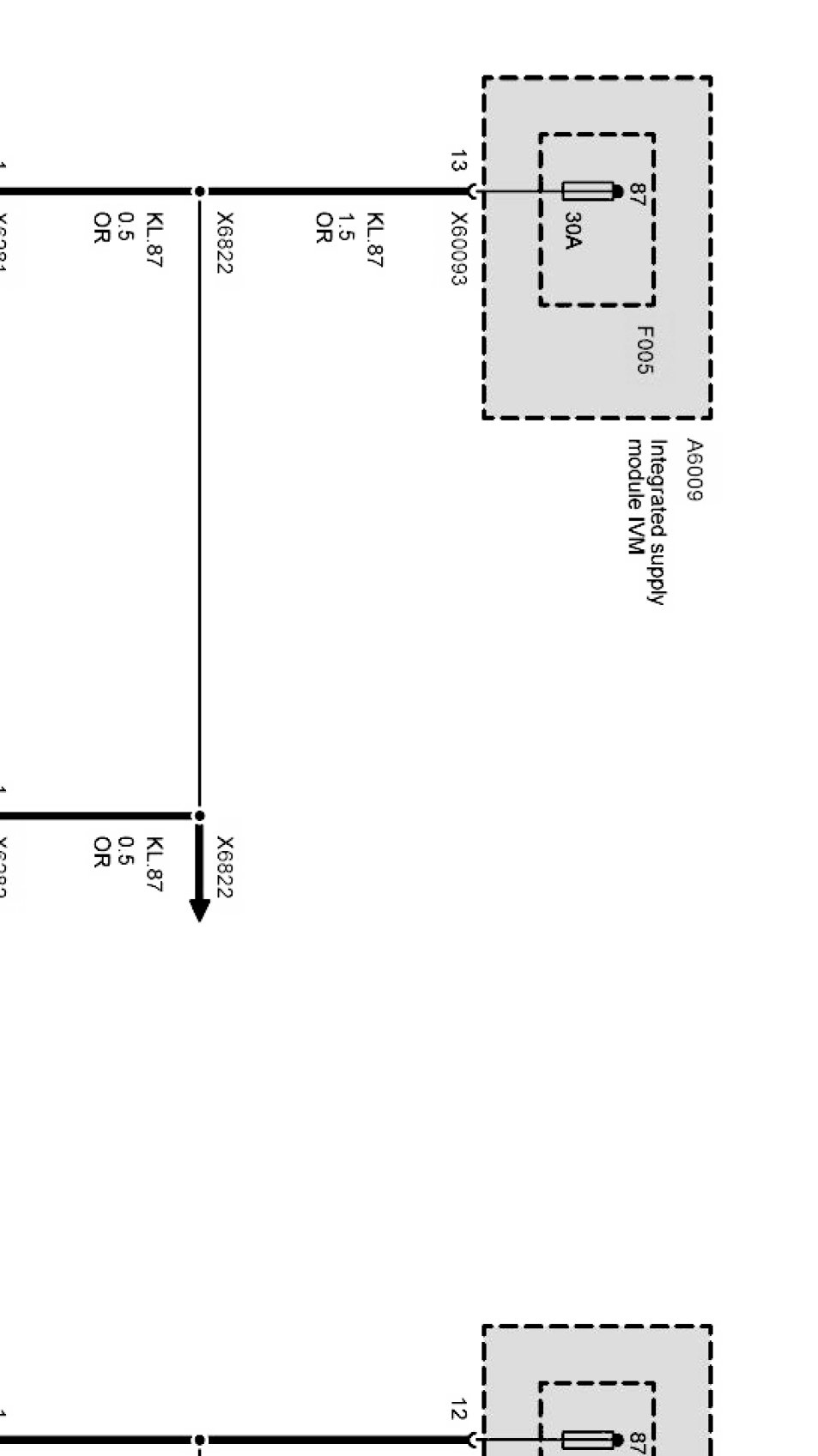

VANOS solenoid valves 1 and 2 Part 2:

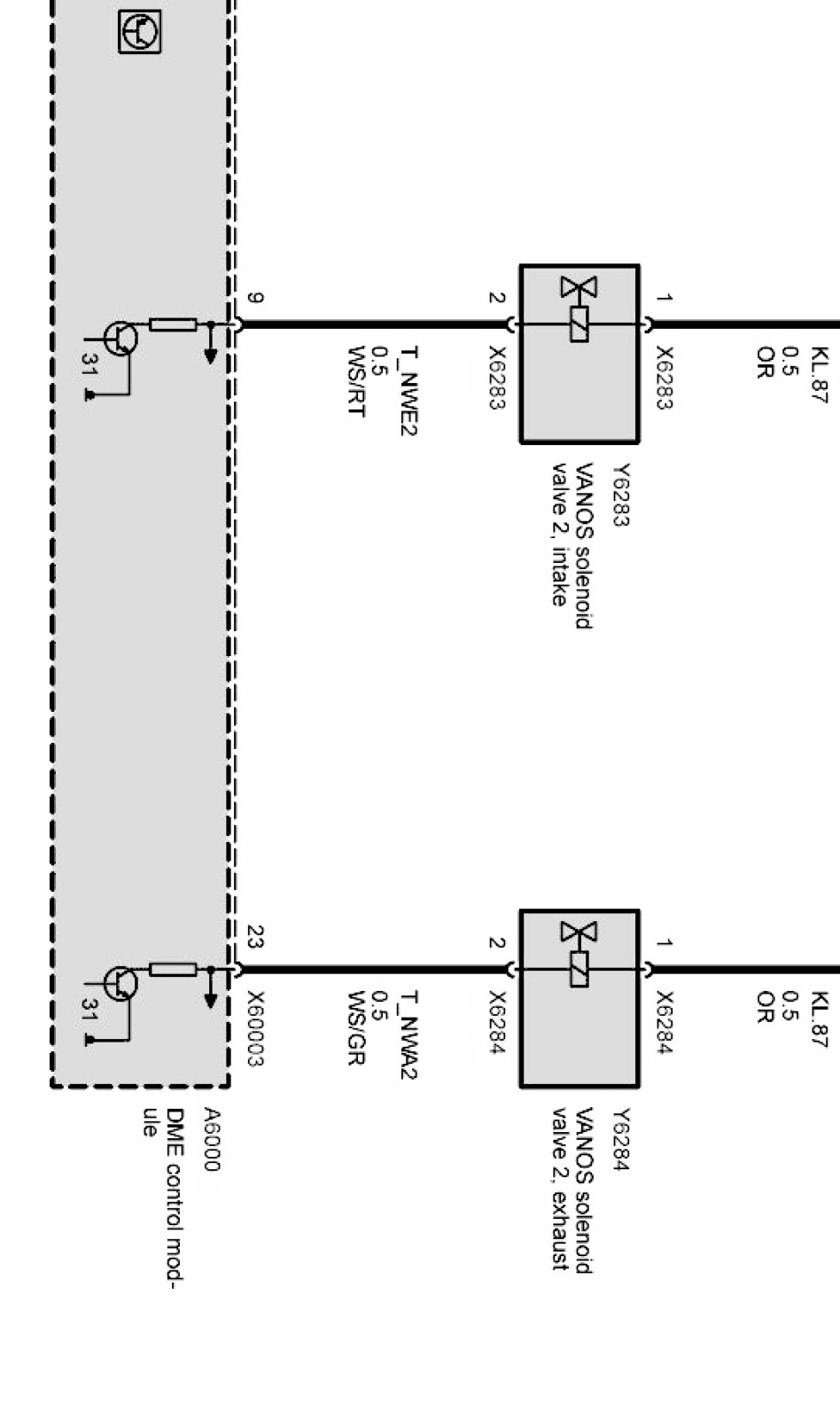

VANOS solenoid valves 1 and 2 Part 3:

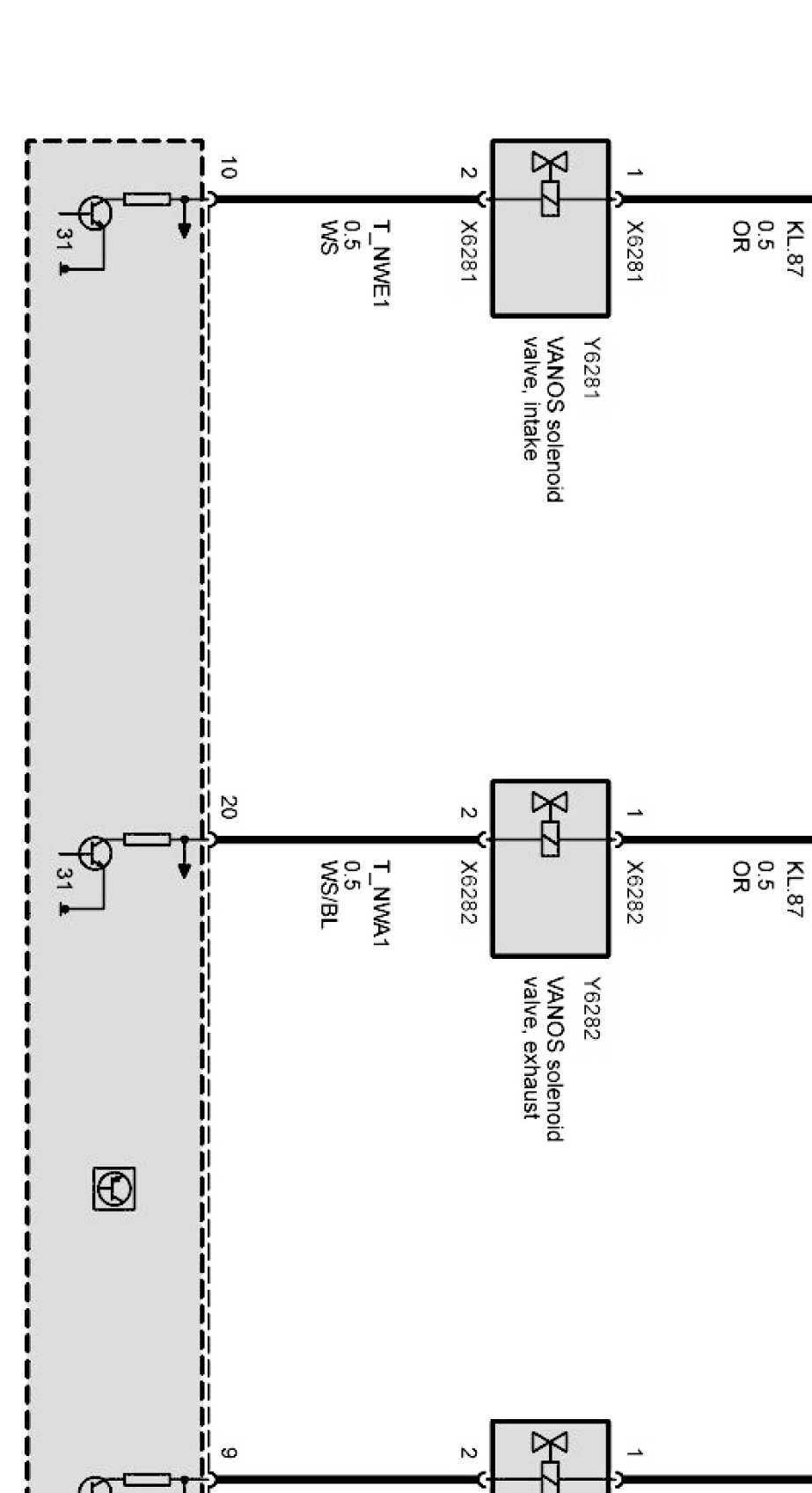

VANOS solenoid valves 1 and 2 Part 4:
