Home >> BMW >> 2007 >> 750Li (E66) V8-4.8L (N62TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management ME9/MED9 (N62 Engine or N73 Engine or N62/TU Engine) >> Lambda Control >> Oxygen Sensor Before Catalytic Converter

Oxygen Sensor Before Catalytic Converter

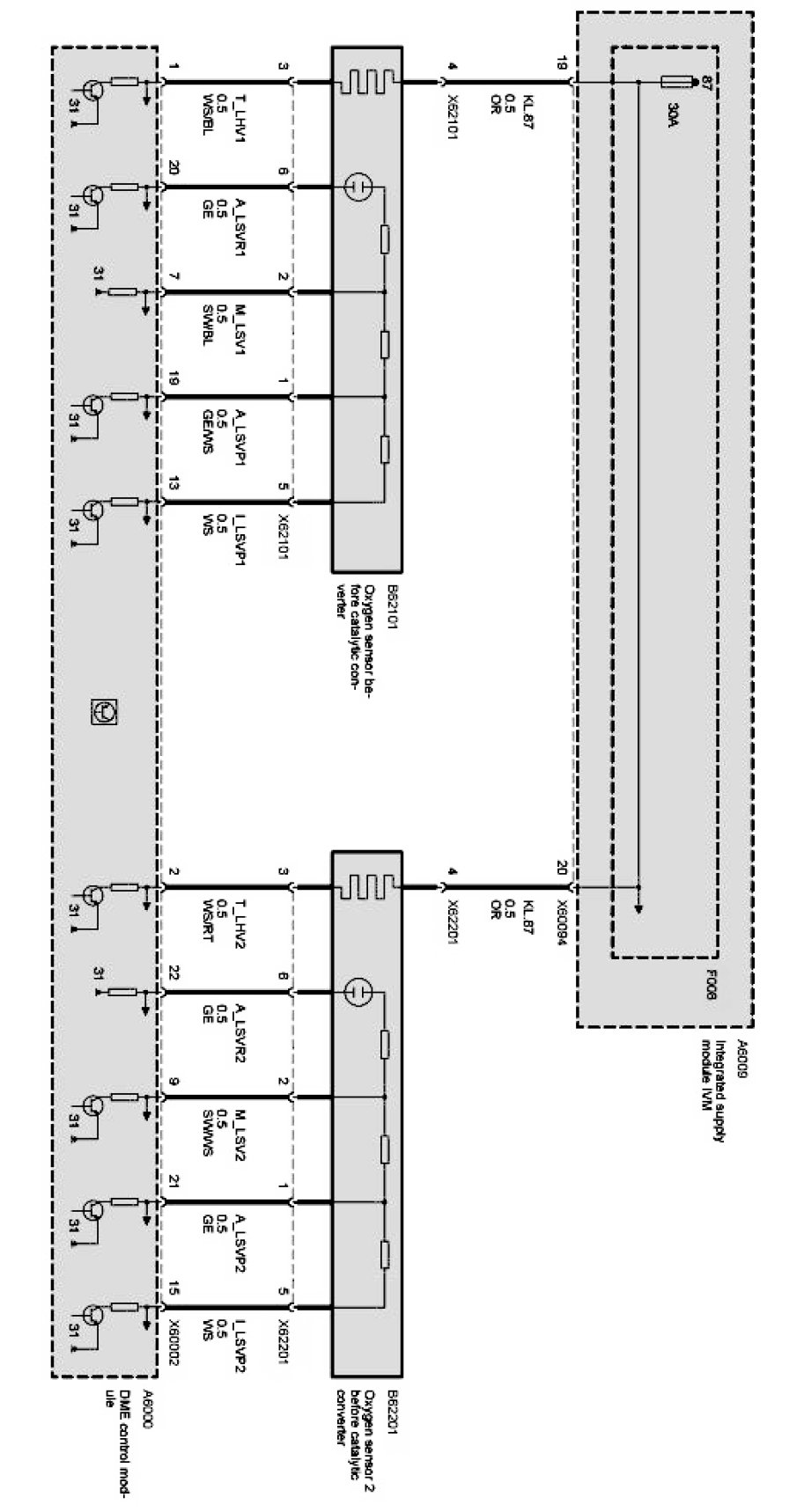

LSU oxygen sensors before catalytic converter:
