Home >> BMW >> 2007 >> 750Li (E66) V8-4.8L (N62TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management ME9/MED9 (N62 Engine or N73 Engine or N62/TU Engine) >> Knock Control >> Knock Sensor (N62 Engine or N62/TU Engine)

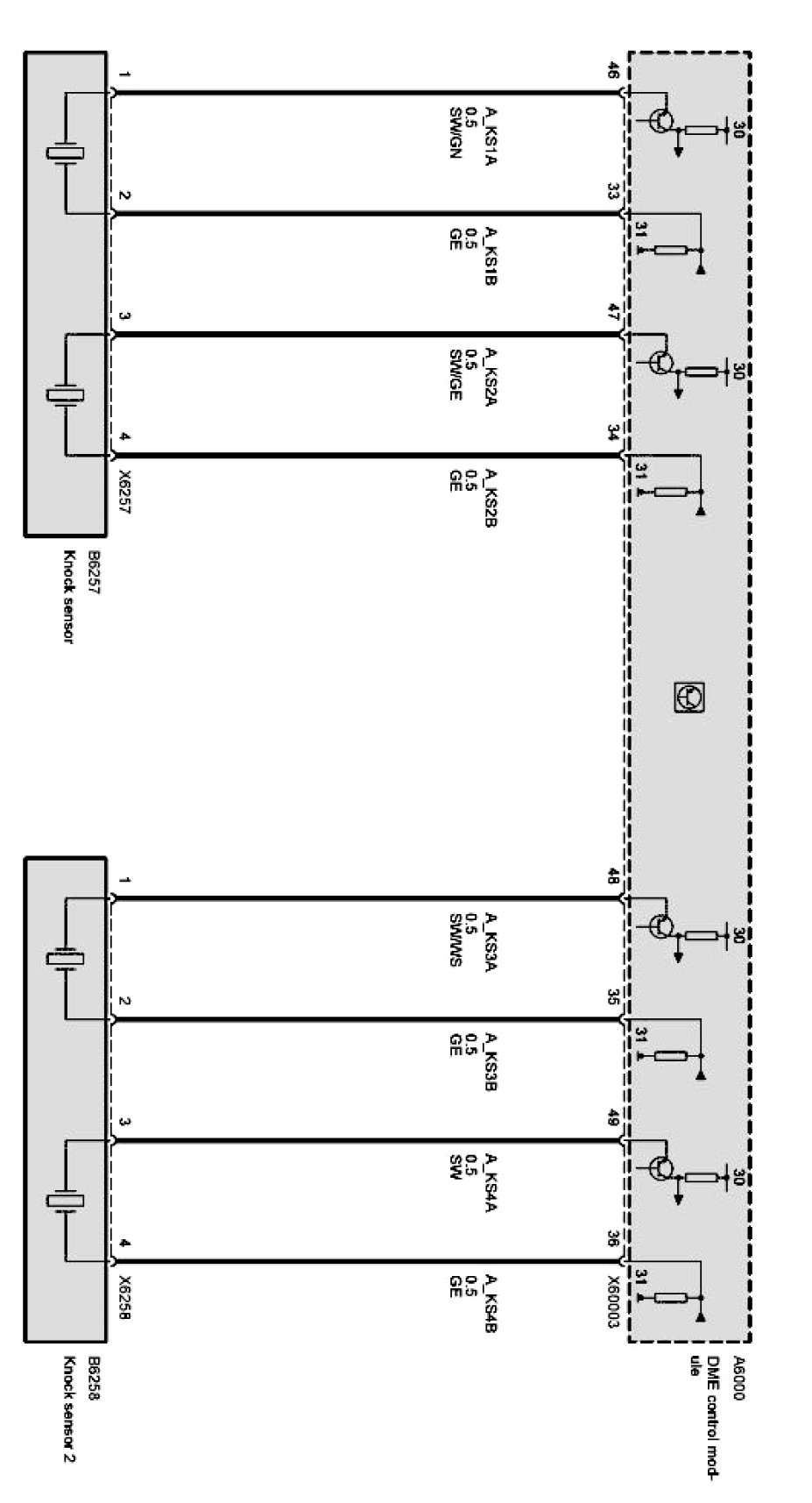

Knock Sensor (N62 Engine or N62/TU Engine)

Knock control:
