Adaptive Headlight (LM2 Light Module 2 With Adaptive Headlight or LM2 AHL2)

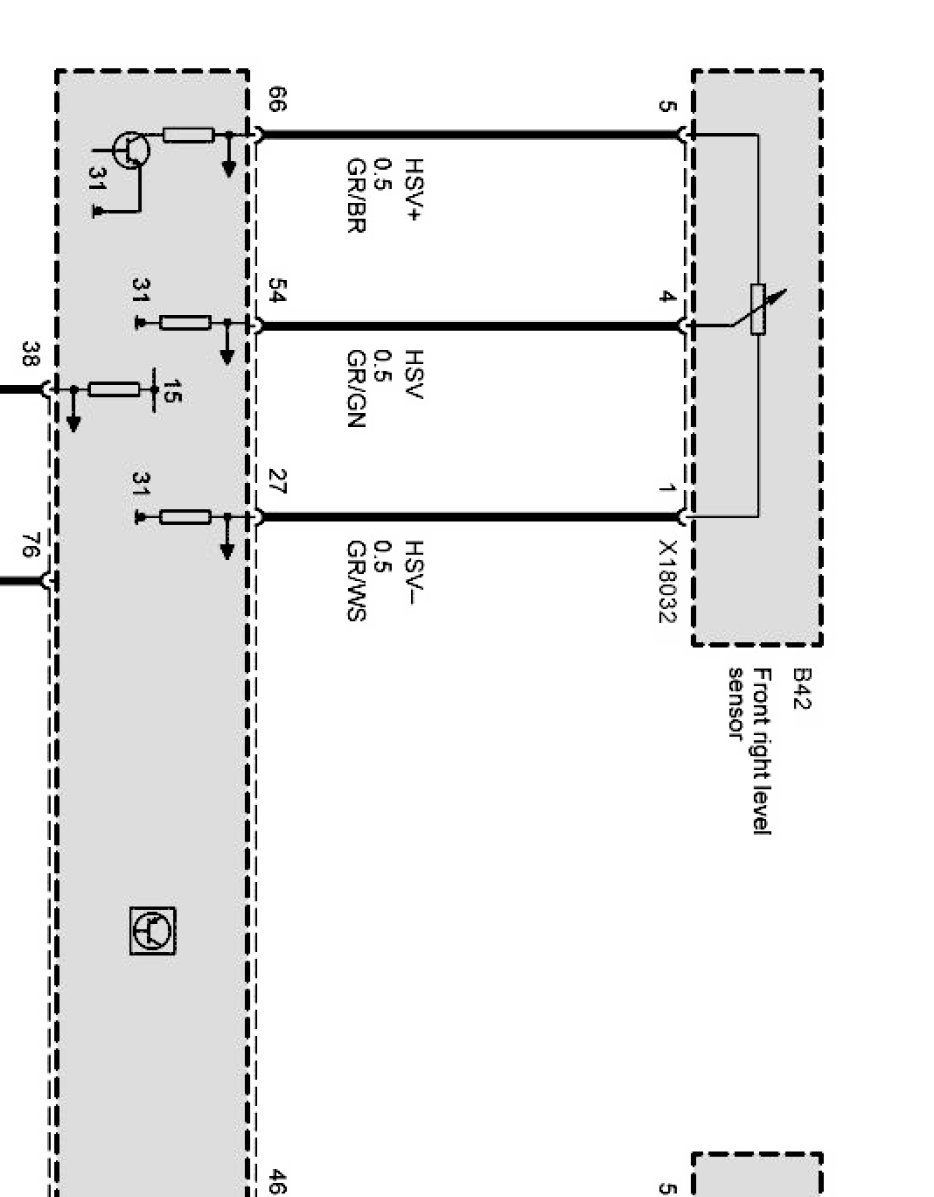

Adaptive headlight Part 1:

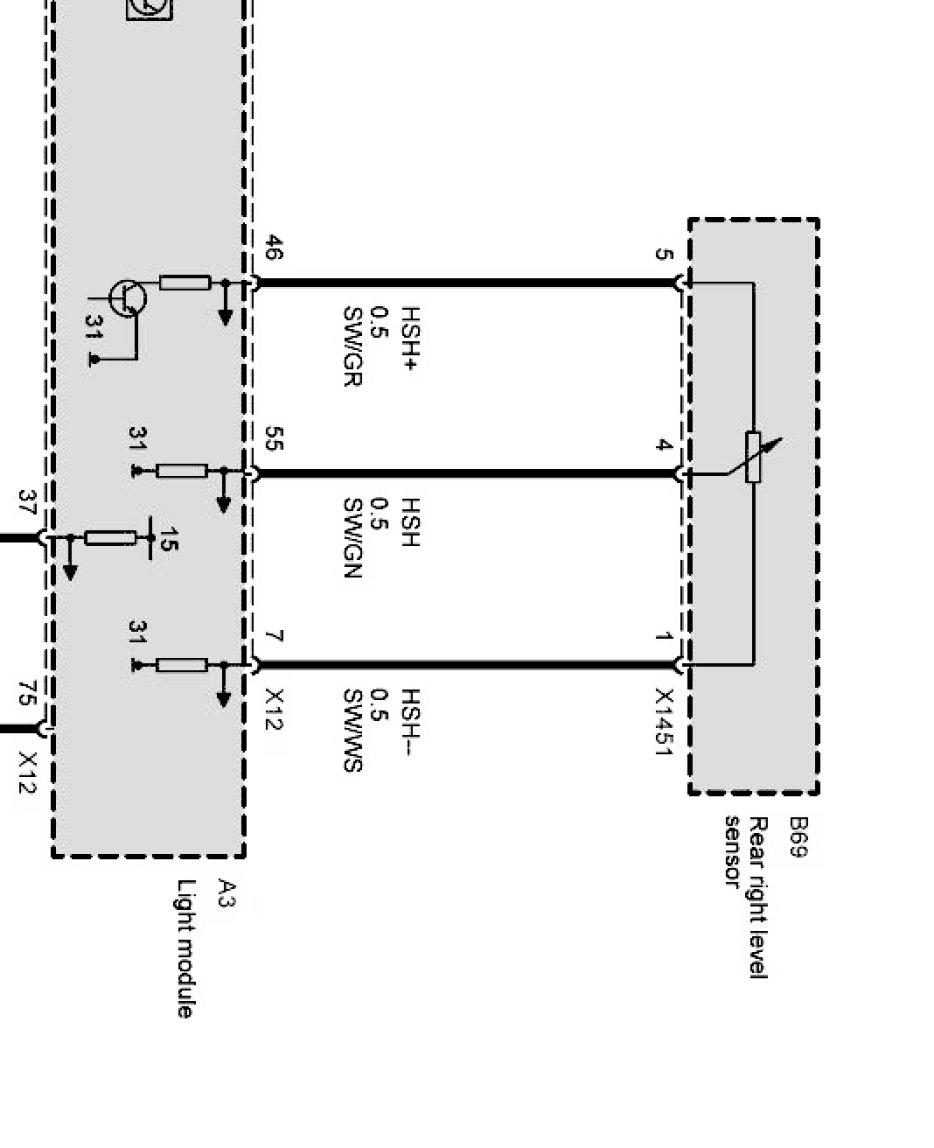

Adaptive headlight Part 2:

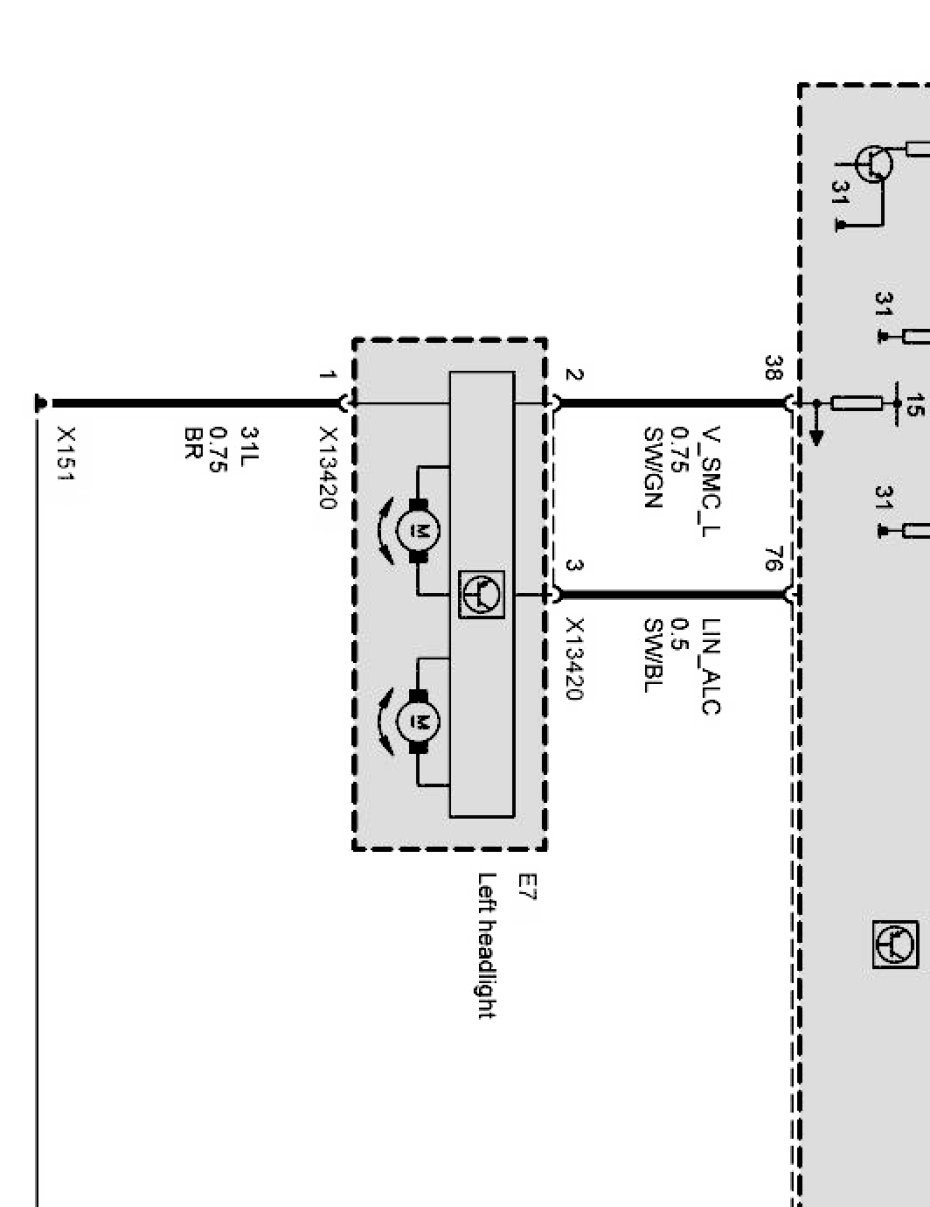

Adaptive headlight Part 3:

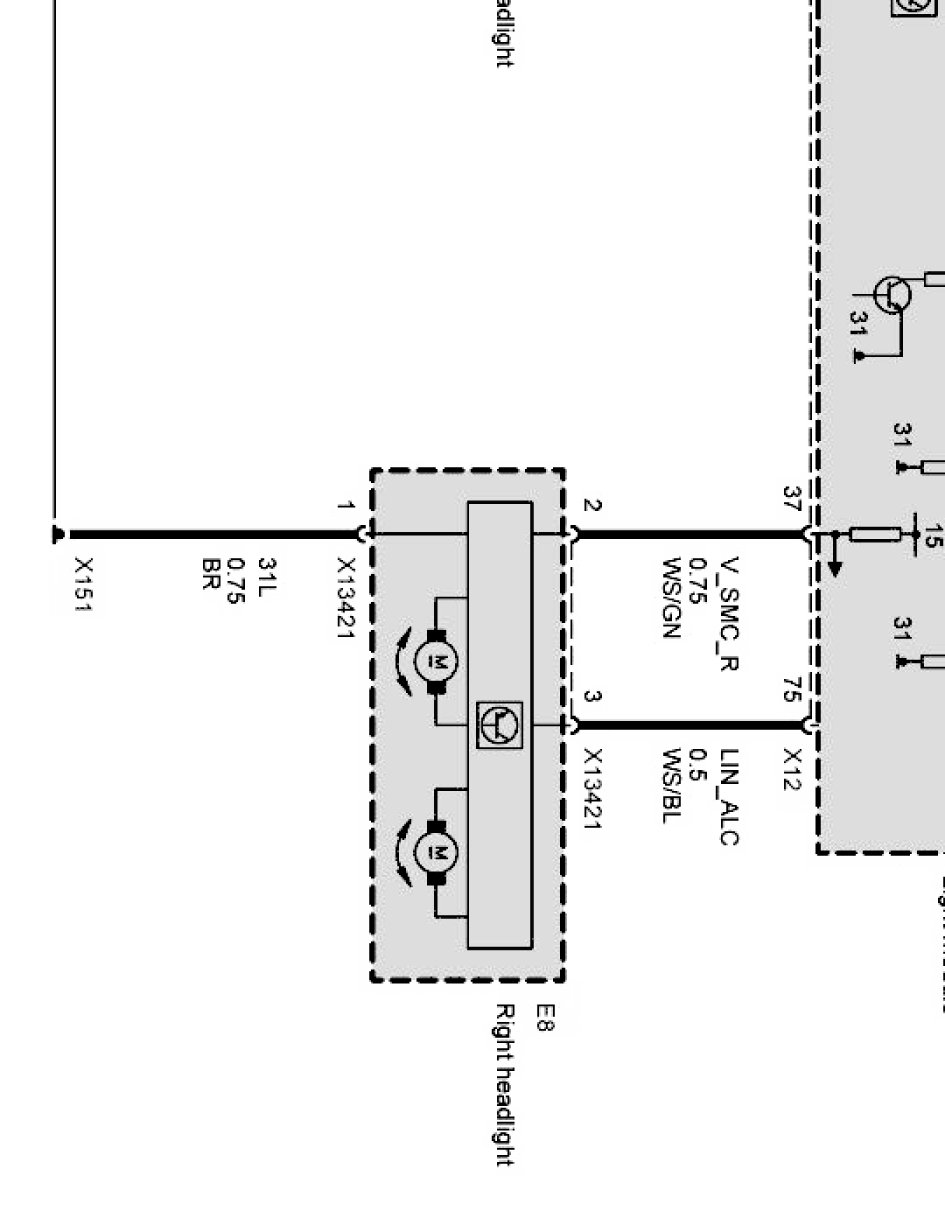

Adaptive headlight Part 4:
